Quick Start Guide
SpeedFace M4
Version: 1.1
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpeedFace M4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco SpeedFace M4

Summary of Contents for ZKTeco SpeedFace M4

  • Page 1 Quick Start Guide SpeedFace M4 Version: 1.1 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

  • Page 2: Terminal Block

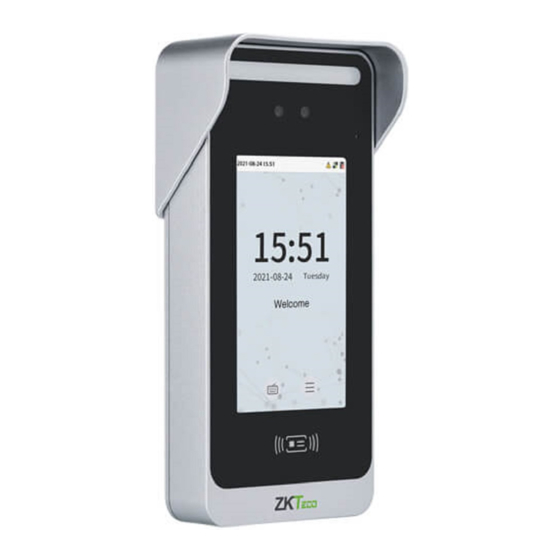

    Overview Rain Cover Flash Camera & Palm Data Collector Microphone 5" Touchscreen Card SwipingArea Terminal Block Reset Button Speaker Terminal Block Power Adapter Auxiliary 12V-OUT Power input Sensor Exit RS232_RXD RS232 Button RS232_TXD Lock 485B RS485 Alarm 485A Power 12V-OUT WD1-OUT Wiegand WD0-OUT...

  • Page 3: Standalone Installation

    Standalone Installation Alarm Smoke Detector Door Sensor ExitButton Reader Lock TCP/IP ZKBioAccess IVS Device Installation ① Mounting Positioning Sticker (Only for your reference) Fixing Hole Fixing Hole Fixing Hole Fixing Hole Fixing Hole Fixing Fixing Hole Hole Wiring Hole Fixing Hole Fixing Hole 1.35m 1.35m recommended height from the ground for face terminal, it can...

  • Page 4: Ethernet Connection

    Ethernet Connection Connect the device and the system software over an Ethernet cable. An example is shown below: ZKBioAccess IVS Default IP address: 192.168.1.201 IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Subnet mask: 255.255.255.0 Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK]. Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment when connecting to ZKBioAccess IVS software.

  • Page 5: Lock Relay Connection

    Lock Relay Connection The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (normally opened when powered) is connected with 'NO1' and 'COM' terminals, and the NC Lock (normally closed when powered) is connected with 'NC1' and 'COM' terminals. The power can be shared with the lock or can be used separately for the lock, as shown in the example with NC Lock below: 1.
  • Page 6 Wiegand Reader & Access Controller Connection +12V 485B Access 485A Controller 12V-OUT WD1-OUT WD0-OUT iegand IWD1 iegand IWD0 +12V 12V-OUT Wiegand Reader RS485 Connection RS485- 485B RS485+ 485A +12V 12V-OUT WD1-OUT WD0-OUT RS485 Reader IWD1 IWD0 12V-OUT...

  • Page 7: User Registration

    User Registration When there s no super administrator set in the device, click on enter the menu. Add a new user and set User Role to Super Admin, then the system will request for administrator’s verification before entering the menu. It is recommended to register a super administrator initially for security purposes.
  • Page 8 Method 2: Register on ZKBioAccess IVS software Please set the IP address and cloud service server address in the Comm. Menu option on the device. 1. Click [Access] > [Access Device] > [Device] > [Search Device] to search the device on the software.
  • Page 9 Method 3: Register on the phone Once the ZKBioAccess IVS software is installed, the users could enroll their face via a browser application on their own mobile phone. 1. Click [Personnel] > [Parameters], input http://Server address: Port in the QR Code "...

  • Page 10: Access Control Settings

    Ethernet and Cloud Server Settings Clickon > [COMM.] > [Ethernet]to set the network parameters. If the TCP/IP communication of the device is successful, the icon will be displayed in the upper right corner of the standby interface. Clickon > [COMM.] > [Cloud Server Setting] to set the server address and server port,that is, the IP address and port number of the server after the software is installed.
  • Page 11 Main Menu Access Control Options Access Control Access Control Options Gate Control Mode User Mgt. System User Role COMM. Time Rule setting Verification Mode Password/Card/Face... Holidays Door available time period Personalize Data Mgt. Access Control Attendance Combined Verification Normal open time period None Search Anti-passback Setup...
  • Page 12 Detection Management Settings Click on > [System] > [Detection Management] to enter the setting interface. You can Enable mask detection function, and enable the Deny access without mask and the Trigger external alarm, the device will send an alarm prompt when the user doesn’t wear a mask, meanwhile the user will be forbidden to access, as shown in the following figure.
  • Page 13 Recommended Palm Gestures KEEP EFFECTIVE KEEP SPACES DO NOT KEEP DO NOT KEEP DO NOT KEEP DISTANCE OF BETWEEN YOUR FINGERS PALM OUTSIDE YOUR FINGERS 30-50 cm YOUR FINGERS CLOSE COLLECTION AREA FOLD/CURLED Note: 1. Place your palm within 30-50 cm of the device. 2.
  • Page 14 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2023 ZKTECO CO., LTD. All Rights Reserved.
