Quick Start Guide
2.4-inch Visible Light Terminal
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.

Advertisement

Table of Contents
loading

Related Manuals for ZKTeco SpeedFace-V3L

Summary of Contents for ZKTeco SpeedFace-V3L

  • Page 1 Quick Start Guide 2.4-inch Visible Light Terminal Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

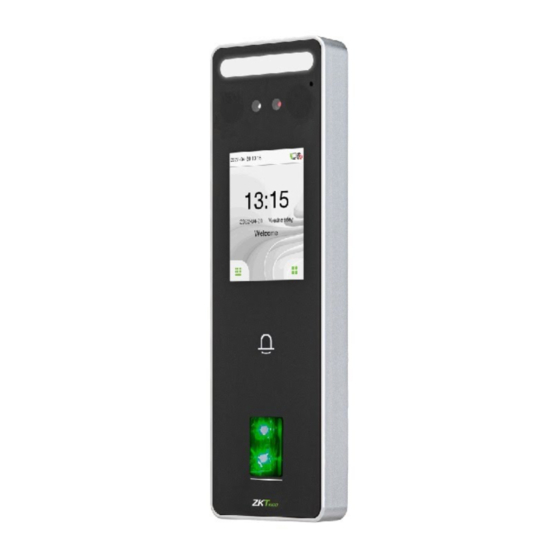

  • Page 2 Overview SpeedFace-V3L: Near-infrared Flash 58.5mm Flash Microphone Camera 2.4-inch Touchscreen Doorbell Button Fingerprint Sensor Speaker SpeedFace-V3LM1: 60.0mm Flash Microphone Camera 2.4-inch Touchscreen Doorbell Button Fingerprint Sensor Speaker...

  • Page 3: Terminal Block

    Note: This manual only take SpeedFace-V3L as an example for detailed introduction, and Ÿ the functions of SpeedFace-V3LM1 will not be repeated. ★ Features and parameters with mark are not available in all devices. Ÿ Terminal Block 485A 485B WD0-OUT...

  • Page 4: Device Installation

    Device Installation ① Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. Fix the backplate on the wall using wall mounting screws. ② ③ Attach the device to the backplate. ④ Fasten the device to the backplate with a security screw. 1.5m ①...

  • Page 5: Standalone Installation

    Standalone Installation Smoke Alarm Detector Door Sensor Exit Button USB Facial Recognition ★ Extension Reader Reader Lock ZKBio CVAccess TCP/IP Power Connection Recommended AC Adapter 1) 12V ± 10%, at least 1500mA. 2) To share the power with other devices, use an AC Adapter with higher current ratings.

  • Page 6: Ethernet Connection

    Ethernet Connection Connect the device and computer software over an Ethernet cable. As shown in the example below: ZKBio CVAccess Default IP address: 192.168.1.201 IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Subnet mask: 255.255.255.0 Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK]. Note: In LAN, the IP addresses of the server (PC) and the device must be in the same network segment when connecting to the ZKBio CVAccess server.
  • Page 7 RS485 Connection 485+ 485A 485- 485B WD0-OUT +12V WD1-OUT INWD0 485 Reader INWD1 12V-OUT Door Sensor, Exit Button, Alarm & Auxiliary Connection Door Sensor ExitButton Smoke Detector BELL+ Alarm Power BELL- ALARM+ ALARM- Alarm...

  • Page 8: Lock Relay Connection

    Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC' and 'COM' terminals. Take NC Lock as an example below: 1)Device not sharing power with the lock 2)Device sharing power with the lock +12V...

  • Page 9: Usb Connection

    USB Connection The device supports the connection of KF1000-U reader and USB disk. KF1000-U Reader ★ KF1000-U For more details, please refer to the KF1000-U User Manual. USB Disk USB Disk For more details, please refer to the User Manual.

  • Page 10: User Registration

    User Registration When there s no super administrator set in the device, click on enter the menu. Add a new user and set User Role to Super Admin, then the system requests for administrator’s verification before entering the menu. It is recommended to register a super administrator initially for security purposes.
  • Page 11 Method 2: Register on ZKBio CVAccess Software Register on the PC Please set the IP address and cloud service server address, in the Comm. Menu option on the device. Click Access > Access Device > Device > Search to search the device on the software.
  • Page 12 Register on the Phone Once the ZKBio CVAccess software is installed, the users could enroll their face tem- plate via a browser application on their own mobile phone. Click Personnel > Parameters, input ‘’http://Server address: Port’’ in the QR Code URL.
  • Page 13 Ethernet and Cloud Server Settings Click on > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP communication of the device is successful, the icon will be displayed in the upper right corner of the standby interface. Click on >...

  • Page 14: Access Control Setting

    Access Control Setting Click on > [Access Control] to enter the access control management interface and set relevant parameters of access control. Attendance Record Click on > [ Attendance Record] to enter the record query interface, input the user ID and select the time range, the corresponding attendance record will be displayed.

  • Page 15: System Setting

    System Setting Click on > [System] to enter the system interface to set the related system parameters for optimizing the accessibility of the device.
  • Page 16 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2023 ZKTECO CO., LTD. All Rights Reserved.
