ZKTeco MB10-VL Quick Start Manual

2.8-inch linux visible light product
Hide thumbs Also See for MB10-VL:
Table of Contents

Advertisement

Quick Links

Quick Start Guide
2.8-inch Linux Visible Light Product
Version: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB10-VL and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco MB10-VL

Summary of Contents for ZKTeco MB10-VL

  • Page 1 Quick Start Guide 2.8-inch Linux Visible Light Product Version: 1.1...

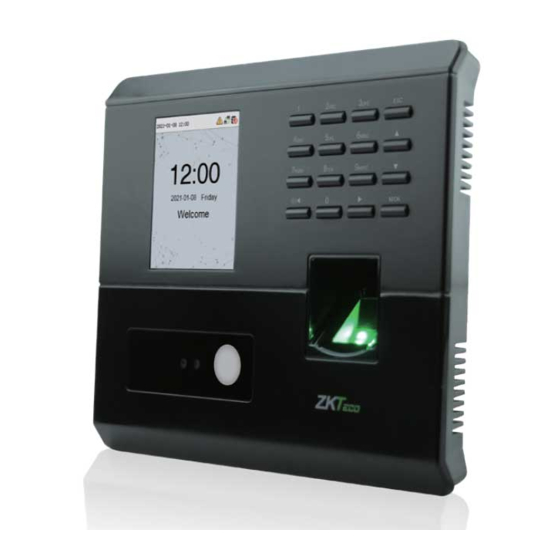

  • Page 2 1.Overview Keypad 2.8-inch Color Screen Fingerprint Reader ★ & Card Reading Area Flash Camera Near-infrared flash Network USB port interface Reset button Powerport COM1 Lock Sensor Button ★ Note: Features and parameters with mark are not available in all devices.

  • Page 3: Device Installation

    2.Device Installation Install on the wall ①Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. ②Fix the back plate on the wall using wall mounting screws. ③After passing the wires through the wiring hole and connecting them to the device, and then attach the device to the back plate from top to bottom.

  • Page 4: Standalone Installation

    3.Standalone Installation Door sensor Exit button Lock ★ TCP/IP 4.Door Sensor & Exit Button Connection COM1 Door sensor Exitbutton...

  • Page 5: Lock Relay Connection

    5.Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally unlocked when powered) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally locked when powered) is connected with 'NC' and 'COM' terminals. Take NC Lock as an example below: Not sharing power with the lock FR107 DC12V...

  • Page 6: Ethernet Connection

    7.Ethernet Connection Connect the device and computer software over an Ethernet cable. As shown in the example below: Default IP address: 192.168.1.201 IP address : 192.168.1.130 Subnet mask 255.255.255.0 Subnet mask : 255.255.255.0 Click on [ Comm. ] > [ Ethernet ] >...
  • Page 7 Method 2: Registering on the software (ZKBioAccess IVS) Please set the IP address and cloud service server address in the Comm. Menu option on the device. 1. Click [Attendance] > [Attendance Device] > [Device] > [Search] to search the device on the software.

  • Page 8: User Authentication

    Personnel Registration Personnel ID Setting Personnel Registration The Maximum Length: Personnel Support Letters: Personnel ID Auto-increment: Person Card Setting Department The Maximum Length: Bits(Binary) Pending Review Card Format Display: Decimal Hexadecimal Custom Attributes Pending personnel settings Personnel ID Parameters Enable Auto-audit: 4835 Self-service Registration First Name...

  • Page 9: Access Control Settings

    9.Access Control Settings to enter the access control management interface Press [M/OK] > [Access Control] and set relevant parameters of access control. Access Control Access Control Options Door Lock Delay (s) Access Control Options System Data Mgt. Personalize Door Sensor Delay (s) Door Sensor Type Normal Close (NC) Department...
