USER MANUAL
Hybrid Vehicle Recognition Terminal ---LPRS2000
Version: 1.2
Date: August, 2018
P a g e
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPRS2000 and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco LPRS2000

Summary of Contents for ZKTeco LPRS2000

  • Page 1 USER MANUAL Hybrid Vehicle Recognition Terminal ---LPRS2000 Version: 1.2 Date: August, 2018 P a g e...
  • Page 2 Safety Precautions  Electrical safety Install the camera , reader and LED screen first, and then connect the data cable and power cable in sequence. Before connecting an external cable to the device, complete grounding properly and set up surge protection;...
  • Page 3 Dust, moisture, and abrupt temperature changes can affect the device's service life. You are advised not to keep the device under such conditions. Do not keep the device in a place that vibrates. Handle the device with care. Do not place heavy objects on top of the device.

  • Page 4: Table Of Contents

    CONTENTS 1 Overview..........................................1 1.1 About This Product ..................................1 1.2 Features ........................................1 1.3 Appearance ......................................2 1.4 Port definition ...................................... 3 1.4.1 LPR Camera .................................... 3 1.4.2 UHF reader ..................................... 4 1.5 System Requirements ..................................4 2 Connection ........................................... 5 2.1 Connection Setup .....................................
  • Page 5 4.4.3 Video Settings ................................... 14 4.4.4 Smart ....................................... 21 4.4.5 Network Settings ................................26 4.4.6 Storage Settings ................................30 4.4.7 Alarm Settings .................................. 31 4.4.8 COM Setting ..................................33 4.4.9 System ....................................34 4.5 Alarm ........................................38 5 FAQs ............................................39...

  • Page 6: Overview

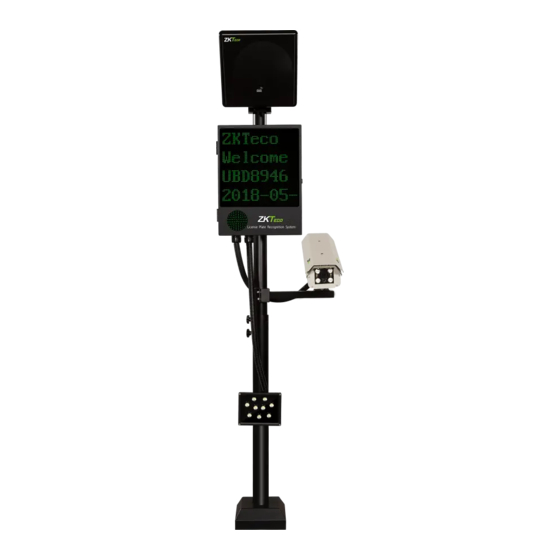

    1.1 About This Product Adopted multiple recognition modes based on long-range RFID and license plate recognition. LPRS2000 is a hybrid recognition vehicle management terminal and mainly composed of LPR camera and UHF reader The LPR camera is an IP camera based on the H.264/H.265 algorithm, integrating HD imaging, image collection, license plate recognition, image decompression, and data storage on an embedded intelligent platform.

  • Page 7: Appearance

    1.3 Appearance 2 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 8: Port Definition

    1.4 Port definition 1.4.1 LPR Camera  Wiring terminal diagram  Port description LPRS2000 Hybrid Recognition Integrated Machine User Manual 3...

  • Page 9: Uhf Reader

     RAM: 1G or above.  Network port: 100M Ethernet port.  Operating system: 32-bit or 64-bit operating system, such as Windows 7 ,Windows 8, Windows 10.  Internet Explorer: Microsoft Internet explorer 6.0 or later. 4 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 10: Connection

    IP address: 192.168.1.88(Remarks: The device model is displayed on the label attached to the device enclosure.) Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 2.2.2 Connectivity Test After you set the camera IP address, click Start > Run in the lower left corner of the LPRS2000 Hybrid Recognition Integrated Machine User Manual 5...
  • Page 11 (2) Check whether the TCP/IP addresses of the PC and the camera are in the same network segment. (3) Check whether the ping command is disabled. If you are not certain, contact your network administrator. 6 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 12: Reader Modifying Setting Via Demo

    3 Reader modifying setting via demo 3.1 USB Connection 3.2 Software Introduction Our company provides Demo, used to set the working parameters of the reader. Demo interface as shown below: LPRS2000 Hybrid Recognition Integrated Machine User Manual 7...
  • Page 13 Tag Reading Interval: Set the machine to read the card interval. Read card interval is the time when from the card is read within the scope of the card to the card is left out of the scope of the card to read the second time card. 8 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 14: Camera Access Over A Web Browser

    Note: The WebVideoActiveXPlus.exe control must be installed for viewing videos over a web browser. After the installation is completed, return to the Web browsing page. Log in to browse the following video, as shown in the following figure. LPRS2000 Hybrid Recognition Integrated Machine User Manual 9...

  • Page 15: Liveview

    IP address of the device, and time information is used as the file names of the snapshots. For example, the file name of a snapshot is 15_36_05.jpg, and saved in the 10 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 16: Replay

    You can set conditions to search for videos based on requirements. The search results are displayed in the File List. You can perform operations such as playing, downloading, and viewing of the downloading information list. LPRS2000 Hybrid Recognition Integrated Machine User Manual 11...

  • Page 17: Config

    Smart, Network Settings, Storage Settings, Alarm Settings, COM Settings and System. 4.4.1 Local Config It is used to view or set local configurations. You can set it based on actual conditions, and then click [Save]. 12 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 18: Audio Parameter

    Sampling Rate: It indicates the number of times that the recording device samples audio signals  in a second. LPRS2000 Hybrid Recognition Integrated Machine User Manual 13...

  • Page 19: Video Settings

    2) Video Coding: It is used to view or set video code, including the parameters of Main Stream and Sub Stream. You can set this item based on actual conditions, and then click [Save]. 14 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 20  Image Quality: You can choose Best, Better, Good, Bad, Worse or Worst. The higher the image quality, the clearer the images, the better the effect, and the higher the bit rate. LPRS2000 Hybrid Recognition Integrated Machine User Manual 15...
  • Page 21 You can use this function only after selecting Enable Mask. At first, click , and then drag the area to be marked by using the mouse (you can drag multiple areas). You can also select to 16 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 22  Sat.: It indicates the brilliance of a color, and is also called the purity of a color. The higher content of coloration, the higher the saturation. The higher content of decoloration, the lower the saturation. The setting range is 0~255. LPRS2000 Hybrid Recognition Integrated Machine User Manual 17...
  • Page 23  Auto: It is used to automatically change images to the colored or black and white mode based on the video light acquired by the camera.  WDR: It is a technology used to enable the camera to see the features of images under very 18 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 24  Time Detection: If IR mode is set to Time Detection, you need to set the time of To Day and To Night manually.  IR Detection: If IR Mode is set to IR Detection, you need to select the detection mode (Low LPRS2000 Hybrid Recognition Integrated Machine User Manual 19...
  • Page 25  IR: You can choose Auto, Open or Close.  IR Detection: Choose Low Level or High Level. (4) Advanced: It is used to set Rotation, AGain, DGain and WB of the camera. 20 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 26: Smart

    Note: Click the corresponding icon or title, set the default value. 5) Snap Picture: It is used to set the parameters of snap pictures, including Picture-Format and Resolution. 4.4.4 Smart Smart includes Intelligent, Smart Stream, Smart Detect and Smart Control. LPRS2000 Hybrid Recognition Integrated Machine User Manual 21...
  • Page 27  Identify Results: The identified results are displayed in the box on the right of the page, including ID, Plate Number, Color, Time and Size.  Identify Parameter:  Mounting Distance: It indicates the identification distance of a license plate. The default value is 3.5m-4.5m. 22 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 28  Output Filter: It indicates the output mode for recognition results. You can choose Full Output, Filter vehicle far away or Filter vehicle nearby.  System Parameter:  The brake work mode: It indicates the mode for triggering brake opening. You can choose LPRS2000 Hybrid Recognition Integrated Machine User Manual 23...
  • Page 29 2) Smart Stream: It is Close by default. You can enable Auto or ROI. Close:  Auto: After Smart Stream is enabled, the image quality is automatically reduced when videos  are still, and the image quality is automatically improved when videos are in motion. 24 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 30 [Save]. Note: Click to clear all smart regions. 3) Smart Detect: Including Smart Cover Detect and Smart Focus Detect. It is selected after being clicked and canceled after being clicked again. LPRS2000 Hybrid Recognition Integrated Machine User Manual 25...

  • Page 31: Network Settings

    4) Smart Control: Preset information is displayed only after Smart Control Switch is selected. The setting range of Preset is 0~99. 4.4.5 Network Settings View or set network parameters of the camera, including Basic, LAN, PPPOE, UPNP, FTP, DDNS, VPN, RTSP, IP Email, Connecting and Mobile. 26 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 32 IP addresses for network clients. After this item is selected, the IP address, subnet mask and gateway of the camera cannot be modified, and is allocated by the host automatically. Otherwise, you need to set network parameters and ensure that the IP LPRS2000 Hybrid Recognition Integrated Machine User Manual 27...
  • Page 33 4) FTP: FTP FTP is an application-layer protocol based on the transmission layer. It serves users and is used to transmit files. The device transmits alarm data over FTP, including parameter settings for main server and sub server. 28 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 34 IP address is changed). The update intervals include Default, 1 Hour, 2 Hour, 1 Day, 2 Days and 7 Days. This function can be used only after Enable is selected. LPRS2000 Hybrid Recognition Integrated Machine User Manual 29...

  • Page 35: Storage Settings

    [Save]. 4.4.6 Storage Settings Including Device Setting, Record Setting and Snap Setting. 1) Storage Device: It indicates device management and is used to perform Format or Refresh operation on the device. 30 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 36: Alarm Settings

    3) Schedule Snap: It is used to set scheduled snapping. You can set Snap Interval, Time and File storage mode based on actual conditions, and then click [Save]. 4.4.7 Alarm Settings Including Motion Detection, Sensor Detection and Network Detection. LPRS2000 Hybrid Recognition Integrated Machine User Manual 31...
  • Page 37  Alarm output duration(s): It indicates the alarm output duration.  Type: Choose NO or NC.  Snap(s): The number of snap interval can be a decimal, such as: 0.5 seconds, 1.5 seconds, etc. 32 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 38: Com Setting

    3) Network Failure: It is used to set alarms on network failure. You can use all the items after selecting this item. 4.4.8 COM Setting View or set serial port parameters, including Baud Rate, Data Bits, Stop Bits and Check Type. LPRS2000 Hybrid Recognition Integrated Machine User Manual 33...

  • Page 39: System

     NTP Server: After this item is selected, you need to select the time zone (38 time zones in total). The default time zone is GMT+08:00 Beijing. The server name and port information are displayed 34 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 40 (1) A common user can preview the videos only after login, but cannot view or modify parameters. (2) User name, Password may consist of a-z, 0-9, underscores, and a single dot (.), 1 to 15 characters; LPRS2000 Hybrid Recognition Integrated Machine User Manual 35...
  • Page 41 6) Restore: It is used to restore the parameter settings of the camera. This function can restore all settings of the device to the factory default values. You simply need to click 7) Parameter: You can import or export parameters. 36 LPRS2000 Hybrid Recognition Integrated Machine User Manual...
  • Page 42 9) System Log: It is used to search the operation records after a user logs in. You can set search conditions (start time, end time, and the number of records displayed on each page) based on actual conditions, and then click . The searched records are displayed on the page. LPRS2000 Hybrid Recognition Integrated Machine User Manual 37...

  • Page 43: Alarm

    It is used to search alarm records. You can set search conditions (start time, end time, and the number of records displayed on each page) based on actual conditions, and then click . The searched alarm records are displayed on the page. 38 LPRS2000 Hybrid Recognition Integrated Machine User Manual...

  • Page 44: Faqs

    The operating system caches the IP address and MAC address of the previous network camera. As a result, the second network camera with the same IP address may not be accessed. LPRS2000 Hybrid Recognition Integrated Machine User Manual 39...
