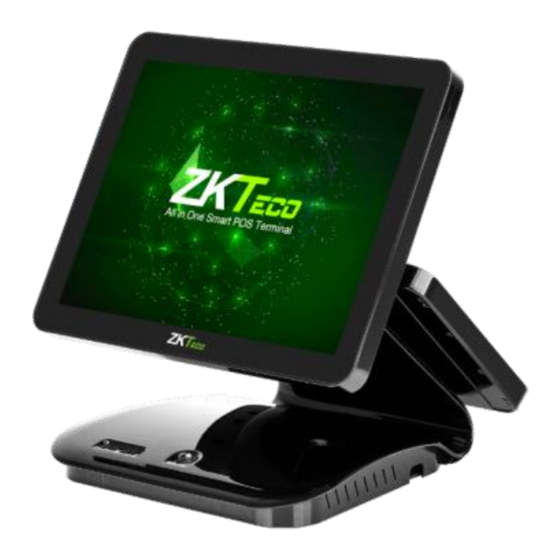

ZKTeco ZK3530 User Manual
  1. Manuals
  2. Brands
  3. ZKTeco Manuals
  4. Touch terminals
  5. ZK3530
  6. User manual

ZKTeco ZK3530 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
ZK3530（W）＆ZK3550（W）
Version：1.0
Date: November, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZK3530 and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco ZK3530

Summary of Contents for ZKTeco ZK3530

  • Page 1 USER MANUAL ZK3530（W）＆ZK3550（W） Version：1.0 Date: November, 2017...
  • Page 2 Important Claim Firstly, thank you for purchasing this hybrid-bio terminal. Before using, please read this manual carefully to avoid the unnecessary damage! The company reminds you that the proper use will improve the use affect and authentication speed. No written consent from our company, any unit, or individual isn’t allowed to excerpt, copy the content of this manual in part or in full, also spread in any form.
  • Page 3 Copyrights Ⓒ Copyright 2017 ZKTeco Co. Ltd. All rights reserved. All rights reserved. Except as specifically permitted herein, no portion of the information in this document may be reproduced in any form or by any means without the prior written permission from ZKTeco.

  • Page 4: Safety Instructions

    Safety Instructions Read these instructions carefully. Keep these instructions for future reference. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning. Please keep this equipment from humidity. Lay this equipment on a reliable surface when install.
  • Page 5 Table of Contents 1. Packing List ......................1 1.1. Standard Accessories ......................1 1.2 Optional Accessories ......................1 2. System View ......................3 2.1. Rear View ..........................3 2.2. Back View ..........................3 2.3. Specification ........................3 2.4. Internal Layout ........................4 3.

  • Page 6: Packing List

    Packing List 1.1. Standard Accessories ZK3530&ZK3550 ZK3530W&ZK3550W Power Adapter Power coad 1.2 Optional Accessories...
  • Page 7 a. Single MSR b. VFD c. 2 Display d. 1D or 2D Handheld Type Barcode Scanner Thermal Printer f. Cash Drawer...

  • Page 8: System View

    System View 2.1. Rear View ☆ Please make sure 12V DC plug in the right direction before plugging in DC jack. 2.2. Back View 2.3. Specification LCD Display Size 15"/ 15.6"TFT LCD Max. Resolution 1024x768 Display & Touch Brightness 250 cd/㎡ Support Color 16.2M/ 262K colors Backlight...

  • Page 9: Internal Layout

    Touch Type Standard Projected Capacitive Intel®Core i3-4010U 1.7GHz(ZK3530) Processor Intel®Core i5-4200U 2.6GHz(ZK3550) Main Board One SO-DIMM socket supports DDR3L System Memory 1333 up to 8GB Storage MINI SSD x 1 X 4 (USB 2.0) X 2 (USB 3.0) Powered COM...
  • Page 10 In order to prevail in kind, the above picture is for reference only...

  • Page 12: Pin Definition

    Pin Definition 3.1. CPU This mainboard uses Intel®Core i3-4010U 1.7GHz(ZK3530)/Intel®Core i5-4200U2.6GHz(ZK3550) 3.2. pin and jumper setting JVGA Built-in VGA display interface：JVGA The motherboard provides 1 * 12 Pin VGA connector (spacing: 2.0mm), the pin is defined as follows： JPS2 Built-in PS2 mouse and keyboard interface：JPS2 PS2 interface, which is specific interface for mouse and keyboard, is a 6-pin round interface.
  • Page 13 The motherboard provides 1 * 7 PIN PS / 2 connector (spacing:2.0mm), the pin is defined as follows: F_AUDIO Front audio interface：F_AUDIO The Motherboard provides 2 * 5 PIN (spacing: 2.54MM) front audio interface, the pin is defined as follows ： F_PANEL Front panel switch interface：F_PANEL The motherboard provides 2 * 5 Pin F-PANEL interface (spacing: 2.54mm), computer chassis...
  • Page 14 F_USB Built-in USB interface：F_USB、F_USB1、F_USB2 The motherboard provides three 2 * 5 pin USB interface (spacing: 2.54mm), the pin is defined as follows ： Built-in serial port：COM1~COM6 The motherboard provides a 4-in-one built-in COM_CON (spacing 2.00mm), that is, 4 standard RS232 pin into a pin interface, total of 40 Pins. The motherboard provides two 2 * 5 PIN COM interface( spacing:2.54mm), standard RS232 pin is defined as follows: COM SET...
  • Page 15 COM2_SET2 The motherboard provides 4 Pin COM2_SET2 jumper (spacing:2.54mm), according to the actual use to choose COM2 or 485 J485E The motherboard provides 4 Pin 485 interface (spacing: 2.54mm), the Pin is defined as follows CIR, infrared pin interface The motherboard reserved 3 PIN infrared pin interface (spacing: 2.54mm), the Pin is defined as follows: Cooling fan power outlet：CFAN1、SFAN1...
  • Page 16 The motherboard provides two cooling fan connector (spacing: 2.54mm), the pin is defined as follows: SATA Power supply interface：JSATA_PWR The motherboard provides 1 * 4 Pin SATA power connector (spacing: 2.54mm), the pin is defined as follows: SATA_SET2 The motherboard provides 12 Pin SATA_SET2 jumper (spacing: 2.54mm), the jumper is defined as follows: ME jumper：JME The motherboard provides 1 * 2 Pin ME jumper (spacing: 2.54mm), the pin is defined as follows：...
  • Page 17 Clear CMOS jumper：JBAT The motherboard provides 1 * 3 PIN CLR_CMOS connector, CLR_CMOS: CMOS clear content / hold settings (spacing: 2.54 mm) , powered by on-board button battery。Clear CMOS will permanently eliminate the previous system configuration and set it to the original (factory setting) system setting.
  • Page 18 The motherboard provides 2 * 15 Pin LVDS connector (spacing: 2.0mm), the pin is defined as follows: LVDS Backlight connector：INVERT The motherboard provides a 1 * 6PIN INVERT interface, (spacing :2.0mm), the pin is defined as follows: LVDS voltage control connector：JPWR_LVDS1 The motherboard provides 2 * 3 pin LVDS-JP interface (spacing: 2.54mm).
  • Page 19 The motherboard provides 2 * 13 Pin built-in print port(spacing: 2.00mm), the pin is defined as follows: Hardware control Auto_On The motherboard provides 1 * 3 Pin (spacing: 2.54mm) Auto_On jumper, when short circuit 2-3pin, the power is turned on automatically Built-in digital high-definition display interface JHDMI The motherboard provides 2 * 8 Pin JHDMI(pin spacing 2.0mm), supports high-definition display output, the pin is defined as follows：...
  • Page 20 Speaker The motherboard provides 4 Pin Speaker interface (spacing 2.0mm), the pin is defined as follows： ATX12 Power input interface The motherboard provides 4 Pin ATX12V power input interface to meet different customer needs...

  • Page 21: Bios Settings

    BIOS Settings Introduction The purpose of this section is to introduce the functions of the motherboard AMI BIOS setup menu。 BIOS program allows the user to modify and save the basic system configuration. BIOS setup options and modify data, are stored in the CMOS RAM, CMOS RAM power supply is provided by a lithium battery on the motherboard, make sure that the power is cut off, the modified value saved in CMOS RAM will not be lost.

  • Page 22: Main Menu

    BIOS Function keys BIOS Function keys Description select screen →← select item ↑↓ Select the item and enter the submenu ENTER Change the item, add or subtract values Display help content Previous setting values Optimized Defaults Save changes and Exit Exit BIOS Upgrade ①...

  • Page 23: Advanced Menu

    the "↑ ↓ ← →" button to move the navigation bar to the item you want to change and press the <Enter> button. When you move the navigation bar to each item, the top right of the screen will display a Help information to help you better understand the functionality of this item. When an item is selected, the submenu of the item is displayed and the user can adjust the corresponding configuration parameters.
  • Page 24 ACPI Settings This item provides the power management information setting（Due to different models of motherboards, some options are different, please choose according to the actual item） Enable Hibernation Set the Enable or Disabled system hibernation, the default is "Enabled" ACPI Sleep State Set the ACPI sleep state, the option is: "Suspend Disabled"...
  • Page 25 Watch dog Controller Watch dog Controller，the option is：Disabled(default)、Second、Minute Restore AC Power Loss By IO Restore On AC Power Loss：Power Off(default) 、Power On、Last State Serial Port Configuration Select an address and the corresponding interrupt to the serial port, enter the settings interface...
  • Page 26 and display: Serial PortX Select the serial port on or off, the set value is:[ Enabled ] , [ Disabled ] Device Settings Set the serial port interrupt, interrupt settings [IO=3F8h;IRQ=4] Change Settings The item has six options, the default value is [Auto] Parallel Port Configuration Select an address and the corresponding interrupt to the serial port, enter the settings interface and display:...
  • Page 27 Parallel Port Select the parallel port to on or off, the set value is:[ Enabled ] , [ Disabled ] Device Settings Set the parallel port interrupt [IO=378h;IRQ=6] Change Settings The item has five options, the default value is [Auto] Device Mode EPP Mode、ECP Mode、EPP mode &...
  • Page 28 PC Health Status The interface displays information about the health status of the PC hardware, including CPU temperature, system temperature, CPU fan speed, system fan speed, voltage, etc. Advanced S5 RTC Wake Settings Set the timer switch, setting options: Disabled (default), Enabled. When set to Enabled, you need to set the fixed boot time, format: day (D): Hour (H): minute (M): second (S)
  • Page 29 CPU Information This displays the information that the BIOS automatically detects.
  • Page 30 Socket 0 CPU Information Displays CPU detailed information Active Processor Cores[ALL] Activate the number of processor cores with options ALL, 1 Limit CPUID Maximum[Disabled] Please set this item to [Enabled] when you want to use an operating system that does not support the extended CPUID function.
  • Page 31 This item is used to enable or disable No-Excution Page Protection technology. When set to [Enabled], the XD function is always forced to 0,setting options：[Disabled][Enabled] Hardware Prefetcher [Enabled] This item allows you to use or not use the hardware prefetcher function： [ Enabled ] , [ Disabled ] Adjacent Cache Line Prefetch [ Enabled ] This item allows you to use or not use prefetcher adjacent cache data mode.
  • Page 32 CSM Configuration USB Configuration The auto-detected values or devices are displayed in the USB Devices project. If no device is connected, showing None...
  • Page 33 Legacy USB Support [Enabled] This item is used to enable or disable USB device. When set to the default value [Auto], the system can automatically detect whether there is a USB device exists, if so, then start the USB controller; otherwise it will not start. However, if you set this item to [Disabled], the USB controller in the system is turned off regardless of the presence or absence of the USB device.

  • Page 34: Chipset Menu

    USB drive on the OS. Device reset time-out [20sec] This item sets the maximum time required for the storage device reset on the USB2.0. During the time, EFI checks whether the storage device can accept instructions. If the timeout occurs, the storage device is considered to be faulty.
  • Page 35 Intel ICD Configuration GOP Driver GOP Driver, setting options：Enabled(default)、Disabled Integrated Graphics Device Integrated Graphics Device, setting options：Enabled(default)、Disabled Primary Display Primary Display, setting options：Auto、IGD（default） 、PCI、SG PAVC...
  • Page 36 PAVC, setting options：[SERPENT Mode]、[LITE Mode] DVMT Pre-Allocate Set the DVMT Pre-Allocate, the default is 64MB DVMT Total Gfx Mem DVMT Total Gfx Mem, the default is 256MB LCD Control Primary IGFX Boot Display Primary Display, setting options：Auto(default)、VGA&VGA_H1、VGA_H2、LVDS LCD Panel Type Panel link Set the resolution of LVDS, the default is Single 8 1024X768 Panel color depht...
  • Page 37 Azalia HD Audio Azalia HDMI codec Port [Enabled] on/off HDMI Port audio output USB Configuration set USB port on/off Lan Controller [Enabled] This item is used to turn on or off the Lan controller, the default is on Lan PXE OpROM Boot [Do not launch] This item is used to turn on or off Lan PXE OpROM Boot,setting options：[Do not launch] [UEFI...

  • Page 38: Security Menu

    only] [Legacy only] Restore AC Power Loss [Power Off] Restore AC Power Loss, setting options：[Power Off] [Power On] [Last State] When set to [Power Off], plug the power, you need to press the power switch to boot When set to [Power On], plug the power, regardless whether press the power switch or not, the host will boot up directly When set to [Last State], plug the power, it will be restored to the state before the system power off, if the system work on when the power off , it will automatically boot, if it shutdown before the state,...
  • Page 39 4.5. BOOT MENU Setup Prompt Timeout Set the screen prompt waiting time to start, you need to type the number of seconds Bootup NumLock State [On] Set the numeric keypad on after the start, setting options: [On] [Off] Full Screen Logo [Disabled] Set the full-screen LOGO display on / off, settings options: [ Enabled ] [ Disabled ] Fast Boot [Disabled]...

  • Page 40: Save&Exit Menu

    4.6. Save&Exit MENU Save Changes and Exit Discard Changes and Exit Launch EFI Shell From filesystem device...

  • Page 41: Lcd Surface Cleaning

    LCD Surface Cleaning 1. How to clean the LCD surface properly?  Do not spray any liquids on the LCD screen directly, and do not use paper towels, this can cause the LCD screen to become scratched. Always apply the solution to your cloth first, not directly to the parts you are cleaning. ...
  • Page 42 CE Notice This device complies with the requirements of the CE directive.’ FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 43 Town, Longgang District, Shenzhen China 518129 Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com © Copyright 2017. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for.
