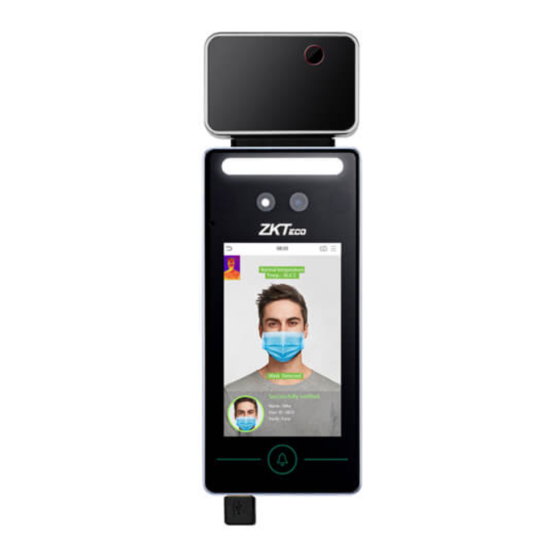

Installation Guide
4-inch Thermal Imaging Product
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpeedFace V4LTI and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco SpeedFace V4LTI

Summary of Contents for ZKTeco SpeedFace V4LTI

  • Page 1 Installation Guide 4-inch Thermal Imaging Product Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

  • Page 2: How To Install The Device

    How to Install the Device? Please pass the wire through the backplate before installation. Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. Fix the backplate on the wall using wall mounting screws. Attach the device to the backplate, and plug the USB cable into the USB port.

  • Page 3: Ethernet Connection

    Ethernet Connection: Connect the device and computer software over an Ethernet cable. As shown in the example below: ZKBioAccess IVS RJ 45 IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Default IP address: 192.168.1.201 Subnet mask: 255.255.255.0 Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK]. Note: In LAN, the IP addresses of the server (PC) and the device must be in the same network segment when connecting to ZKBioAccess IVS software.
  • Page 4 2) Device sharing power with the lock +12V DC12V 485B 485A IWD0 FR107 IWD1 +12V Normally Closed Lock Door Sensor, Exit Button & Auxiliary Input Connection: Alarm's Power Alarm Switch Smoke Detector 485B BELL+ Door Sensor 485A BELL- IWD0 IWD1 ExitButton...
  • Page 5 Wiegand Reader Connection: Access Controller IWD0 IWD1 +12V +12V Wiegand Reader RS485 Connection: 485- 485B 485+ 485A IWD0 IWD1 RS485 Reader...

  • Page 6: Download Center

    Download Center Scan the QR Code to download the User Manual, Installation Guide and Quick Start Guide. QR Code (Download Center)
  • Page 7 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
