ProFace X [TD]

User Manual

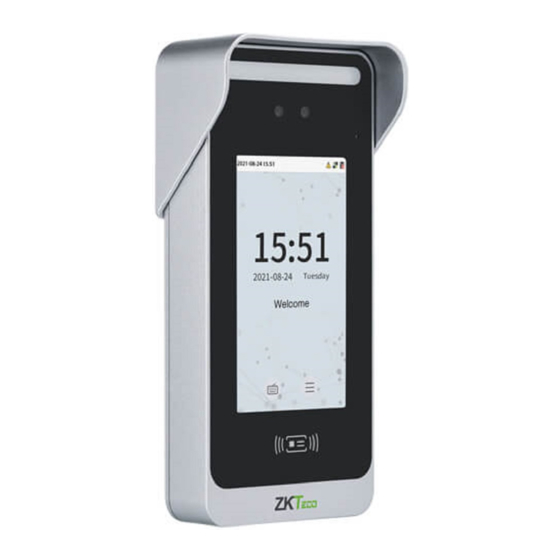

SpeedFace M4

Date: August 2021

Doc Version: 1.0

English

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

P a g e

| 1

For further details, please visit our Company's website

www.zkteco.com.

User Manual

Table of Contents

Need help?

Do you have a question about the SpeedFace M4 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZKTeco SpeedFace M4

Page 1 ProFace X [TD] User Manual User Manual SpeedFace M4 Date: August 2021 Doc Version: 1.0 English Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only.
Page 2 Copyright © 2021 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
Page 3 SpeedFace M4 User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturers of RFID and Biometric (Fingerprint, Facial, and Finger- vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
Page 5 SpeedFace M4 User Manual Document Conventions Conventions used in this manual are listed below: GUI Conventions For Device Convention Description <> Button or key names for devices. For example, press <OK>. Window names, menu items, data table, and field names are inside square brackets.
Page 6: Table Of Contents
SpeedFace M4 User Manual Table of Contents INSTRUCTIONS TO USE ........................7 1.1 S ..............7 TANDING OSITION ACIAL XPRESSION AND TANDING OSTURE 1.2 P ............................8 EGISTRATION 1.3 F ............................9 EGISTRATION 1.4 S ............................10 TANDBY NTERFACE 1.5 V ............................
Page 7 SpeedFace M4 User Manual 7.2 V ............................. 55 OICE ETTINGS 7.3 B ............................56 CHEDULES DATA MANAGEMENT ........................57 8.1 D ..............................57 ELETE ACCESS CONTROL ..........................59 9.1 A ........................... 60 CCESS ONTROL PTIONS 9.2 T ............................61 ETTING 9.3 H...
Page 8: Instructions To Use
SpeedFace M4 User Manual Instructions to use Standing Position, Facial Expression and Standing Posture Recommended distance The distance between the device and a user whose height is within 1.55m to 1.85m is recommended to be 0.3 to 2m. Users may slightly move forwards and backwards to improve the quality of facial images captured.
Page 9: Palm Registration
SpeedFace M4 User Manual Note: During enrollment and verification, please keep natural facial expression and standing posture. Palm Registration Place your palm in the palm multi-mode collection area, such that the palm is placed parallel to the device. Make sure to keep space between your fingers.
Page 10: Face Registration
SpeedFace M4 User Manual Face Registration Try to keep the face in the center of the screen during registration. Please face the camera and stay still during face registration. The page looks like shown below: Face registration and authentication methods Instructions to register a face •...
Page 11: Standby Interface
SpeedFace M4 User Manual • If eyeglasses have been changed, authentication may fail. If the face without glasses has been registered, authenticate the face without glasses. If only the face with glasses has been registered, authenticate the face with the previously worn glasses again.
Page 12: Virtual Keyboard
SpeedFace M4 User Manual Virtual Keyboard Note: The device supports the input of Chinese and English characters, numbers, and symbols. Click [En] to switch to the English keyboard. Press [123] to switch to the numeric and special character keyboard, and click [ABC] to return to the alphabetic keyboard. Click the input box, and the virtual keyboard appears.
Page 13: Verification Mode
SpeedFace M4 User Manual Verification Mode 1.6.1 Palm Verification 1:N Palm Verification mode This verification mode compares the palm image collected by the palm module with all the palm data template in the device. The device will automatically distinguish between the palm and face verification mode. Place the palm in the area that can be collected by the palm module, so that the device will automatically switch to palm verification mode.
Page 14 SpeedFace M4 User Manual If the user has registered the card, face and password in addition to palm, and the verification method is set to Password/Face/Palm/Card, the following screen will appear. Select the palm icon to enter palm verification mode.
Page 15: Facial Verification
SpeedFace M4 User Manual 1.6.2 Facial Verification 1:N Facial Verification  Conventional verification In this verification mode, the device compares the collected facial images with all face data registered in the device. The following is the pop-up prompt of a successful comparison result.
Page 16 SpeedFace M4 User Manual 1:1 Facial Verification  In this verification mode, the device compares the face captured by the camera with the facial template related to the entered user ID. Press on the main interface and enter the 1:1 facial verification mode and enter the user ID and click [OK].
Page 17 SpeedFace M4 User Manual If the user has registered password, card and palm in addition to the face, and the verification method is set to Password/Face/Palm/Card verification, the following screen will appear. Select the icon to enter the face verification mode.
Page 18: Card Verification
SpeedFace M4 User Manual 1.6.3 Card Verification 1:N Card Verification This verification mode compares the card number in the Card induction area with all the card number data registered in the device; the following is the card verification screen. 1:1 Card Verification Click the button on the main screen to open the 1:1 Card verification mode.
Page 19 SpeedFace M4 User Manual If an employee registers palm, face and password in addition to card, and the verification method is set to Password/Face/Palm/Card, the following screen will appear. Select the icon to enter the card verification mode. P a g e | 18 Copyright©2021ZKTECO CO., LTD.
Page 21: Password Verification
SpeedFace M4 User Manual Failed Verification: 1.6.4 Password Verification The Password Verification mode compares the entered password with the registered User ID and Password. Click the button on the main screen to open the 1:1 password verification mode. Input the user ID and press [OK].
Page 22 SpeedFace M4 User Manual If an employee registers palm, card and face in addition to password, and the verification method is set to Password/Face/Palm/Card, the following screen will appear. Select the icon to enter the password verification mode. P a g e | 21 Copyright©2021ZKTECO CO., LTD.
Page 25: Combined Verification
SpeedFace M4 User Manual 1.6.5 Combined Verification To increase the security, this device offers the option of using multiple forms of verification methods. A total of 12 different verification combinations can be used, as shown below: Note: 1） "/" means "or", and "+" means "and".
Page 26: Main Menu
SpeedFace M4 User Manual Main Menu Press on the initial interface to enter the main menu, as shown below: Menu Description User Mgt. To add, edit, view, and delete the basic information about a user. To set the permission scope of the custom role, that is, the rights to operate the User Role system.
Page 27: User Management
SpeedFace M4 User Manual User Management Add Users Click User Mgt. on the main menu. Click New User. Register a User ID and Name Enter the User ID and Name. Notes: 1） A username may contain 17 characters. 2） The user ID may contain 1 to 9 digits by default.
Page 28 SpeedFace M4 User Manual Setting the User Role There are two types of user accounts: Normal user and Super admin. If there is already a registered administrator, the normal users have no rights to manage the system and may only access authentication verifications.
Page 30 SpeedFace M4 User Manual Register password Click Password to open the password registration page. Enter a password and re-enter it. Click OK. If the two entered passwords are different, the prompt "Password not match” will appear. Note: The password may contain one to eight digits by default.
Page 31: Search For Users
SpeedFace M4 User Manual Search for Users Click the search bar on the user list and enter the retrieval keyword (The keyword may be an ID, surname or full name).The system will search for the users related to the information.
Page 32: Edit Users
SpeedFace M4 User Manual Edit Users Select a user from the list and click Edit to enter the edit user interface. Note: The operation of editing a user is the same as that of adding a user, except that the user ID cannot be modified when editing a user.
Page 34: User Role
SpeedFace M4 User Manual User Role If you need to assign some specific permissions to certain users, you may edit the "User Defined Role" under the User Role menu. You may set the permission scope of the custom role (up to 3 roles), that is, the permission scope of the operation menu.
Page 35 SpeedFace M4 User Manual Note: During the privilege assignment, the main menu is on the left and its sub-menus are on the right. You only need to select the features in sub-menus. If the device has a role enabled, you may assign the roles you set to users by clicking User Mgt.
Page 36: Communication Settings
SpeedFace M4 User Manual Communication Settings Communication Settings are used to set the parameters of the Network, Serial Comm, PC connection, Wireless Network, Cloud server, and Wiegand, Network Diagnosis. Click COMM. on the main menu. Network Settings When the device needs to communicate with a PC over the Ethernet, you need to configure network settings and ensure that the device and the PC are connecting to the same network segment.
Page 37: Serial Comm
SpeedFace M4 User Manual The factory default value is 255.255.255.0. Please set the value as per the Subnet Mask requirements. The factory default address is 0.0.0.0. Please set the value as per the Gateway requirements. The factory default address is 0.0.0.0. Please set the value as per the requirements.
Page 38: Pc Connection
SpeedFace M4 User Manual PC Connection To improve the security of data, please set a Comm Key for communication between the device and the If a Comm Key is set, this connection password must be entered before the device can be connected to the PC software.
Page 39 SpeedFace M4 User Manual When Wi-Fi is enabled, click the searched network. Click the password entry text box to enter the password, and click Connect to Wi-Fi (OK). The connection succeeds, with status displayed on the icon bar. Adding Wi-Fi Network If the desired Wi-Fi network is not in the list, you can add the Wi-Fi network manually.
Page 40 SpeedFace M4 User Manual Enter the parameters of Wi-Fi network. (The added network must exist.) After adding, find the added Wi-Fi network in list and connect to the network in the above way. Advanced Options This is used to set Wi-Fi network parameters.
Page 41: Cloud Server Setting
SpeedFace M4 User Manual Menu Descriptions Short for Dynamic Host Configuration Protocol, which involves allocating DHCP dynamic IP addresses to network clients. IP Address IP address of the Wi-Fi network. Subnet Mask Subnet mask of the Wi-Fi network. Gateway Gateway address of the Wi-Fi network.
Page 42: Wiegand Setup
SpeedFace M4 User Manual When you choose to enable the proxy, you need to set the IP Enable Proxy Server address and port number of the proxy server. Based on HTTP, transmission encryption and identity authen- HTTPS tication ensure the security of the transmission process.
Page 43 SpeedFace M4 User Manual Menu Descriptions Wiegand Format Values range from 26 bits, 34 bits, 36 bits, 37 bits, and 50 bits. Wiegand Bits Number of bits of Wiegand data. The value of the pulse width sent by Wiegand is 100 microseconds by default, Pulse Width(us) which can be adjusted within the range of 20 to 100 microseconds.
Page 44 SpeedFace M4 User Manual OMMMMSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCE It consists of 37 bits of binary code. The 1 bit is the odd parity bit of the 2 Wiegand37 bits, while the 37 bit is the even parity bit of the 19 to 36 bits.
Page 45: Network Diagnosis
SpeedFace M4 User Manual It is similar to the Device ID. The difference is that a site code can be set manually, Site Code and is repeatable in a different device. The valid value ranges from 0 to 256 by default.
Page 46: System Settings
SpeedFace M4 User Manual System Settings The System Settings is used to set the related system parameters to optimize the performance of the device. Click System on the main menu interface. Date and Time Click Date Time on the System interface.
Page 47: Attendance Parameters
SpeedFace M4 User Manual Menu Descriptions Manual Date and Set the data and time manually, and then click Confirm to save. Time Automatically determine the time and date of the main interface. You must set Automatic Date the NTP server address, automatically determine the time and date, and select and Time the time zone to take effect.
Page 48 SpeedFace M4 User Manual Function Name Description Choose whether to capture and save the current snapshot image during verification. There are 5 modes: No Photo: No photo is taken during user verification. Take photo, no save: Photo is taken but not saved during verification.
Page 49: Face Parameters
SpeedFace M4 User Manual Face Parameters Click Face on the System interface. Menu Description Under 1:N verification mode, the verification will only be successful when the similarity between the acquired facial image and all registered facial templates is greater than the set value.
Page 50 SpeedFace M4 User Manual Under 1:1 verification mode, the verification will only be successful when the similarity between the acquired facial image and the facial templates enrolled in the device is greater than the set value. 1:1 Threshold Value The valid value ranges from 0 to 100. The higher the thresholds, the lower the misjudgement rate and the higher the rejection rate, and vice versa.
Page 51: Palm Parameters
SpeedFace M4 User Manual It detects the spoof attempt using visible light images to determine if the provided biometric source sample is of a real person (a live human being) or a Live Detection false representation. It facilitates judging whether the captured visible image is a real person (a live Live Detection human being).
Page 52: Factory Reset
SpeedFace M4 User Manual Menu Description Under 1:1 Verification Method, only when the similarity between the verifying Palm 1:1 Matching palm and the user’s registered palm is greater than this value, the verification Threshold succeeds. Under 1:N Verification Method, only when the similarity between the verifying...
Page 53: Device Type Setting
SpeedFace M4 User Manual Device Type Setting Click Device Type Setting on the System interface to configure the Device Type Setting settings. Function Name Description Time Attendance Set the device as a time attendance terminal. Terminal Access Control Set the device as an access control terminal.
Page 54: Detection Management
SpeedFace M4 User Manual Detection Management Click Detection Management on the System interface. Function Name Description It enables or disables the mask detection function. Enable Mask When enabled, the device identifies whether the user is wearing a mask or not Detection during verification.
Page 55: Personalize Settings
SpeedFace M4 User Manual Personalize Settings You may customize the interface settings, audio, and bell. Click Personalize on the main menu interface. Interface Settings You can customize the display style of the main interface. Click User Interface on the Personalize interface.
Page 56: Voice Settings
SpeedFace M4 User Manual When there is no operation, and the time exceeds the set value, a slide show Idle Time To Slide will be played. It can be disabled, or you may set the value between 3 and 999 Show (s) seconds.
Page 57: Bell Schedules
SpeedFace M4 User Manual Bell Schedules Click Bell Schedules on the Personalize interface. Add a bell Click New Bell Schedule to enter the adding interface: Menu Description Bell Status Set whether to enable the bell status. Bell Time At this time of day, the device automatically rings the bell.
Page 58: Data Management
SpeedFace M4 User Manual Data Management The Data Management is used to delete the relevant data in the device. Click Data Mgt. on the main menu interface. Delete Data Click Delete Data on the Data Mgt. interface. Function Name Description Delete Access Records To delete attendance data/access records conditionally.
Page 59 SpeedFace M4 User Manual Delete Profile Photo To delete all user photos on the device. Delete Wallpaper To delete all wallpapers in the device. Delete Screen Savers To delete the screen savers in the device. The user may select Delete All or Delete by Time Range when deleting the access records, attendance photos or block listed photos.
Page 60: Access Control
SpeedFace M4 User Manual Access Control Access Control is used to set the schedule of a door opening, locks control and other parameter settings related to access control. Click Access Control on the main menu interface. To gain access, the registered user must meet the following conditions: The current door unlock time should be within any valid time zone of the user time period.
Page 61: Access Control Options
SpeedFace M4 User Manual Access Control Options This option is used to set the parameters of the control lock of the device and the related parameters. Click Access Control Options on the Access Control interface. Function Name Description It toggles between ON or OFF switch to get into gate control mode or not.
Page 62: Time Rule Setting
SpeedFace M4 User Manual Door Available Time It sets the timing for the door so that the door is accessible only during that Period period. Normal Open time It is the scheduled time-period for “Normal Open” mode so that the door is Period always open during this period.
Page 63 SpeedFace M4 User Manual Click the grey box to search the required Time Zone and specify the required Time Zone number (maximum up to 50 zones). On the selected Time Zone number interface, click on the required day (that is Monday, Tuesday, etc.) to set the time.
Page 64: Holiday Settings
SpeedFace M4 User Manual Note: 1） The door is inaccessible for the whole day when the End Time occurs before the Start Time (such as 23:57~23:56). 2） It is the time interval for valid access when the End Time occurs after the Start Time (such as 08:00~23:59).
Page 65: Combined Verification Settings
SpeedFace M4 User Manual Edit a Holiday On the Holidays interface, select a holiday item to be modified. Click Edit to modify holiday parameters. Delete a Holiday On the Holidays interface, select a holiday item to be deleted and click Delete. Click OK to confirm the deletion.
Page 66 SpeedFace M4 User Manual Click the door-unlocking combination to be set. Click the up and down arrows to input the combination number, then press OK. Examples: The door-unlocking combination 1 is set as (01 03 05 06 08), indicating that the unlocking combination 1 consists of 5 people, and the 5 individuals are from 5 groups, namely, access control group 1 (AC group 1), AC group 3, AC group 5, AC group 6, and AC group 8, respectively.
Page 67: Anti-Passback Setup
SpeedFace M4 User Manual Anti-Passback Setup A user may be followed by some person(s) to enter the door without verification, resulting in a security breach. So, to avoid such situations, the Anti-Passback option was developed. Once it is enabled, the check-in and check-out record must occur alternatively to open the door to represent a consistent pattern.
Page 68: Duress Options Settings
SpeedFace M4 User Manual Function Name Description No Anti-Passback: The Anti-Passback function is disabled, which means successful verification through either the master device or slave device can unlock the door. The attendance state is not saved in this option. Out Anti-Passback: The user can check-out only if the last record is a check-in record otherwise an alarm is raised.
Page 69: Attendance Search
SpeedFace M4 User Manual Attendance Search Once the identity of a user is verified, the access record is saved in the device. This function enables users to check their event logs. Select Attendance Search on the Main Menu interface to search for the required event logs.
Page 70 SpeedFace M4 User Manual 1. Enter the user ID to be searched and click OK. If 2. Select the time range in which the records you want to search for records of all users, click OK you want to search for.
Page 71: Autotest
SpeedFace M4 User Manual Autotest To automatically test whether all modules in the device function properly, which include the LCD, Audio, Camera and real-time clock (RTC). Click Autotest on the main menu interface. Menu Description Test All To automatically test whether the LCD, audio, camera and RTC are normal.
Page 72: System Information
SpeedFace M4 User Manual System Information With the system information option, you can view the storage status, the version information of the device, and so on. Click System Info on the main menu interface. Menu Description Displays the current device's user storage, password, palm, face and card storage,...
Page 73: Connect To Zkbioaccess Ivs Software
SpeedFace M4 User Manual Connect to ZKBioAccess IVS Software 13.1 Set the Communication Address Device side  Click COMM. > Ethernet in the main menu to set the IP address and gateway of the device. (Note: The IP address should be able to communicate with the ZKBioAccess IVS server, preferably in the same network segment with the server address) In the main menu, click COMM.
Page 74: Add Device On The Software
SpeedFace M4 User Manual 13.2 Add Device on the Software Add the device by searching. The process is as follows: Click Access Control > Device > Search Device, to open the Search interface in the software. 1） Click Search, and it will prompt [Searching……].
Page 75 SpeedFace M4 User Manual Fill in all the required fields and click [OK] to register a new user. Click Access > Device > Device Control > Synchronize All Data to Devices to synchronize all the data to the device including the new users.
Page 76: Requirements For Live Collection And Registration Of Visible Light Face Images
SpeedFace M4 User Manual Appendix 1 Requirements for Live Collection and Registration of Visible Light Face Images It is recommended to perform registration in an indoor environment with an appropriate light source without underexposure or overexposure. Do not point towards outdoor light sources like door or window or other strong light sources.
Page 77: Requirements For Visible Light Digital Face Image Data
SpeedFace M4 User Manual Requirements for Visible Light Digital Face Image Data The digital photo should be straight-edged, colored, half-portrayed with only one person, and the person should be uncharted and not in uniform. Persons who wear eyeglasses should remain to put on eyeglasses for photo capturing.
Page 78: Privacy Policy
Privacy Policy Notice: To help you better use the products and services of ZKTeco (hereinafter referred as “we”, “our”, or “us”) a smart service provider, we consistently collect your personal information. Since we understand the importance of your personal information, we took your privacy sincerely and we have formulated this privacy policy to protect your personal information.
Page 79 SpeedFace M4 User Manual All the functions of displaying the biometric information are disabled in our products by default. You can choose Menu > System Settings to set whether to display the biometric information. If you enable these functions, we assume that you are aware of the personal privacy security risks specified in the privacy policy.
Page 80 SpeedFace M4 User Manual IV. Others You can visit https://www.zkteco.com/cn/index/Index/privacy_protection.html to learn more about how we collect, use, and securely store your personal information. To keep pace with the rapid development of technology, adjustment of business operations, and to cope with customer needs, we will constantly deliberate and optimize our privacy protection measures and policies.
Page 81: Eco-Friendly Operation
SpeedFace M4 User Manual Eco-friendly Operation The product's "eco-friendly operational period" refers to the time during which this product will not discharge any toxic or hazardous substances when used in accordance with the prerequisites in this manual. The eco-friendly operational period specified for this product does not include batteries or other components that are easily worn down and must be periodically replaced.
Page 82 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
