Package Checklist

• 1 x ioThinx 4500 (45ML) module
• 1 x quick installation guide (printed)
• 1 x warranty card

Installation

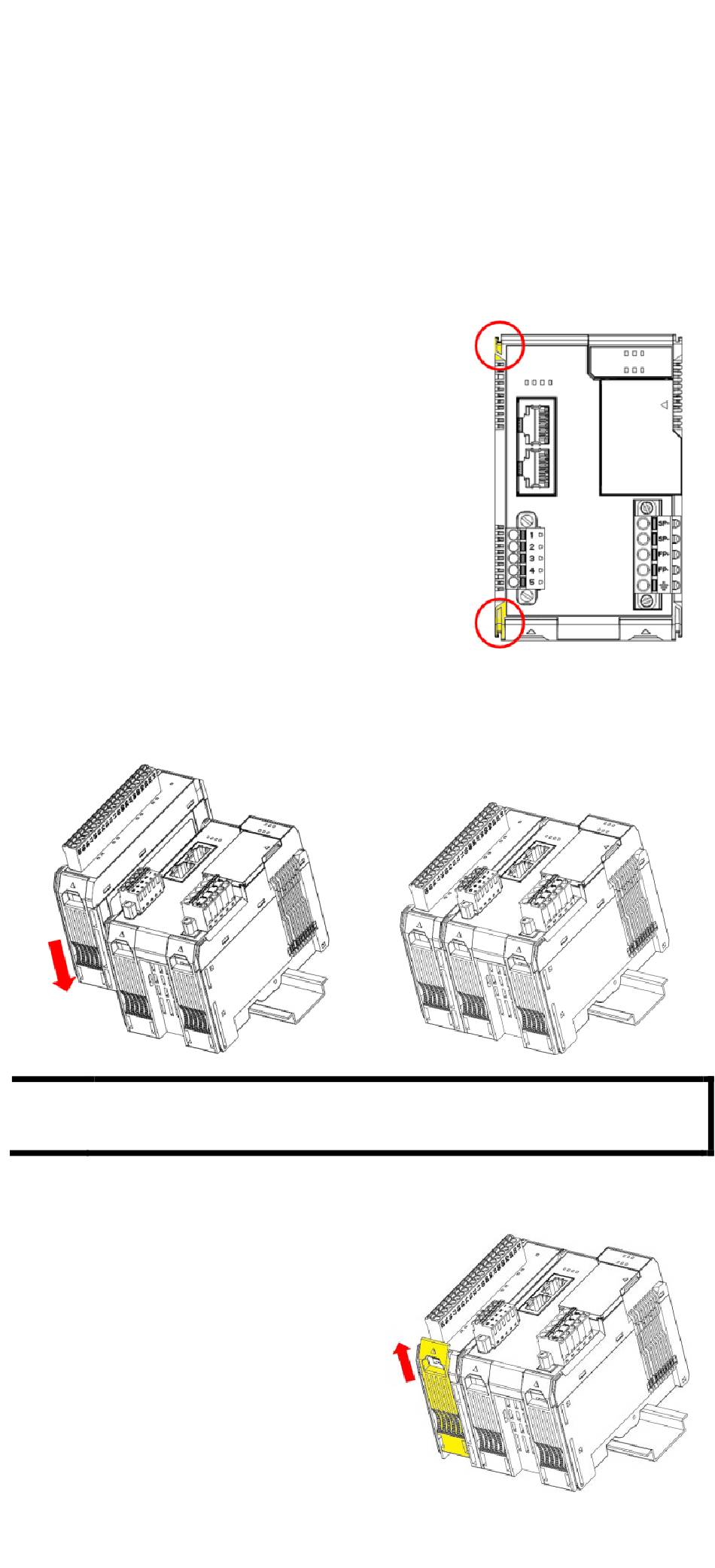

Installing a 45ML Module on a DIN Rail
Step 1: Align the 45ML module side by side
with the head/CPU module, making sure that
the upper and lower rails are hooked
together.
Step 2: After aligning the 45ML module side by side with the head/CPU
module, push the 45ML module until it touches the DIN rail. Next, apply
more force until the module clips to the DIN rail.
NOTE After the module is firmly attached to the DIN rail, the module
connections to the internal bus will be established.
Removing a 45ML Module from a DIN Rail
Step 1: Use your finger to lift the
release tab on the lower part of the
module.
