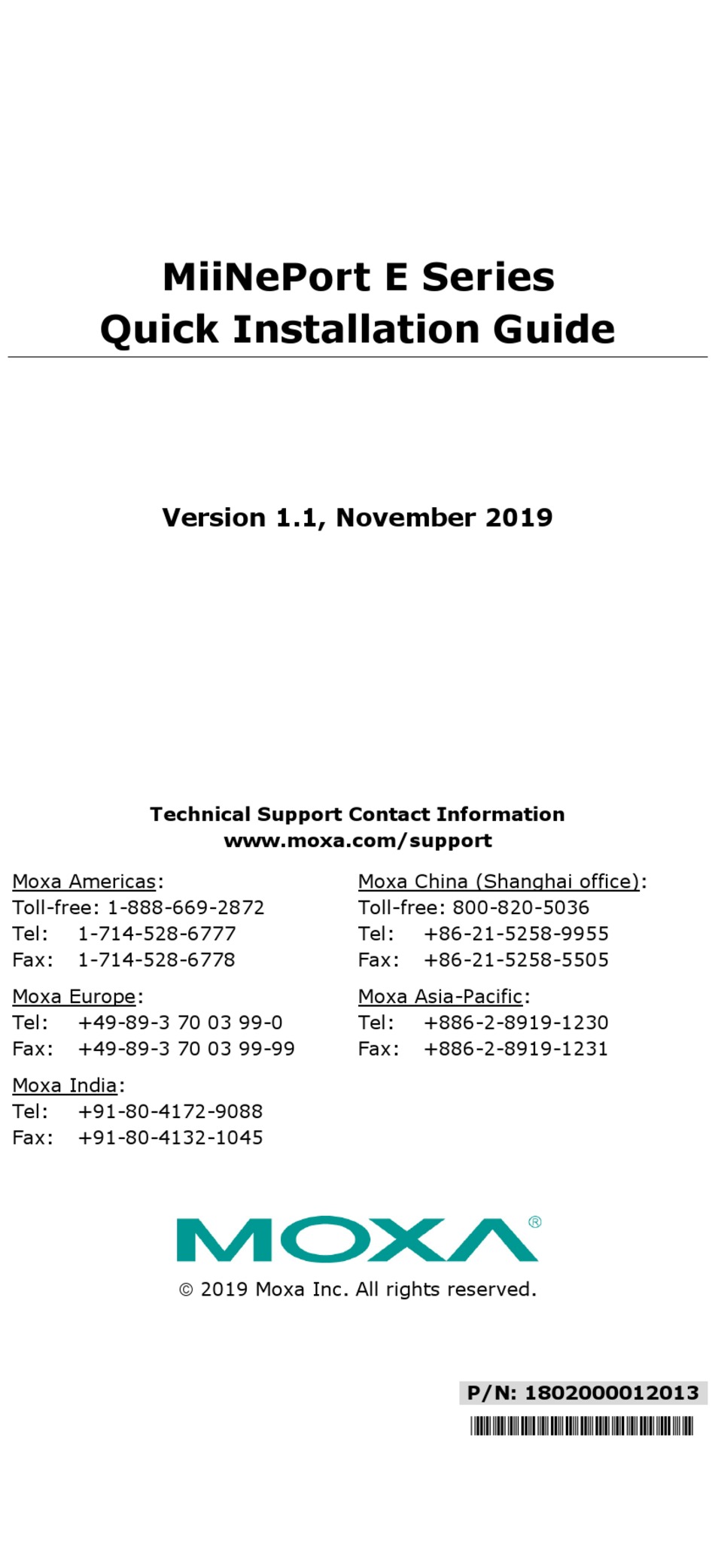

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
MiiNePort E Series
Version 1.1, November 2019
Technical Support Contact Information
www.moxa.com/support
 2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000012013
*1802000012013*

Advertisement

loading

Summary of Contents for Moxa Technologies MiiNePort E Series

  • Page 1 MiiNePort E Series Quick Installation Guide Version 1.1, November 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
  • Page 2 (MiiNePort E, MiiNePort E-H) and two wide operating temperature models (MiiNePort E-T, MiiNePort E-H-T). Moxa provides a starter kit for each MiiNePort E series module; each starter kit contains an evaluation board that can be used to evaluate the modules and to develop your own application.
  • Page 3: Package Checklist

    • included MiiNePort E3-H-ST: Starter kit for the MiiNePort E3-H Series, • module included Package Checklist Each MiiNePort E Series starter kit package contains the following items: • 1 MiiNePort E Series module • 1 MiiNePort E Series evaluation board •...
  • Page 4: Evaluation Board Layout

    5. The default IP address of the MiiNePort E is 192.168.127.254, and the default login credentials: username: admin password: moxa 6. Refer to Chapter 7 of the MiiNePort E Series User’s Manual for additional configuration instructions. Evaluation Board Layout E1 Series...
  • Page 5 E2 Series Number Description MiiNePort E2 Module Location Ethernet RJ45 Connector Serial Interface Jumper Power Switch Power Jack Power and Ready LED DB9 Male Connector Serial Port Status LED Digital IO Terminal Block Digital Output LED Digital Input/Output Mode Digital Input Switch Circuit Pad - 5 -...
  • Page 6 E3 Series Number Description PoE Pin MiiNePort E3 Module Location Serial Interface Jumper Power Switch Power Jack Power & Ready LED DB9 Male Connector Serial Port Status LED Digital IO Terminal Block Digital Output LED Digital Input/Output Mode Digital Input Switch Circuit Pad - 6 -...
  • Page 7: Pin Assignment

    Pin Assignment E1 Series Serial Signal Pins (MiiNePort E1 Series Modules) Function Reset Data Out Data In Ready/RTS Reset to Default Pin 6 can be configured as Ready/RTS (RequesttoSend), Ready/DO, or RS-485 Tx Enabled (the default it Ready/RTS). b. Pin 7 can be configured as Reset to Default, DIO, DTR, or RS-485 Tx Enabled (the default is Reset to Default).
  • Page 8 Signal Name Function DIO0 Programmable Input/Output DIO1 Programmable Input/Output DIO2 Programmable Input/Output DIO3 Programmable Input/Output Reserved Reserved SW Reset Reset To Factory Default Circuit Ground Ready LED System is Ready Power Supply E3 Series The bottom view of the MiiNePort E3 Series Module Ethernet Pins (JP2) Signal Name Function...
  • Page 9 Signal Name Function Data Set Ready Reserve Clear to Send SW_Reset Reset to Factory Default Reserve Reserve Circuit Ground Power Supply Ethernet Port Pins RJ45 Signal Evaluation Board Serial Port DB9 Male RS-232 RS-485-2W – – – – – – –...
