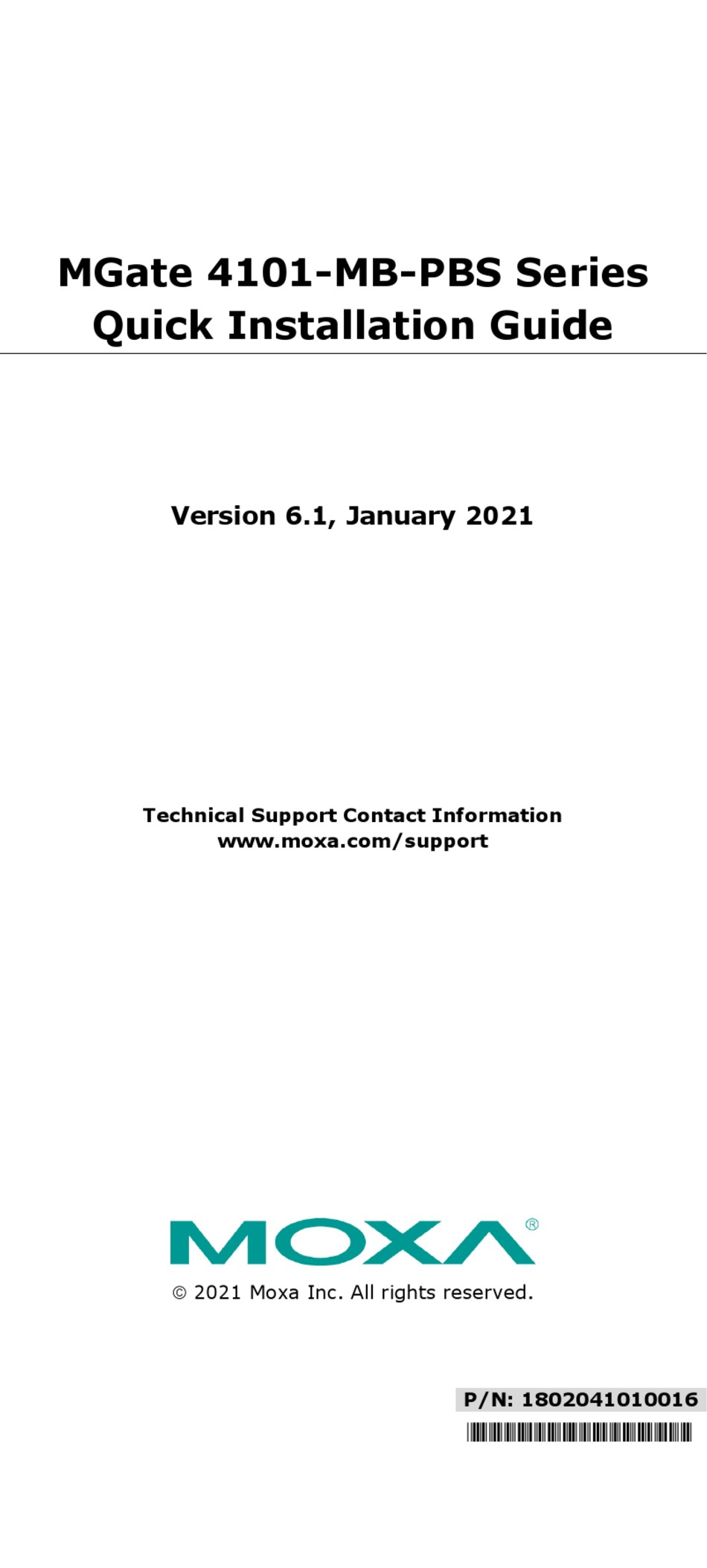

- Page 1 MGate 4101-MB-PBS Series Quick Installation Guide Version 6.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802041010016 *1802041010016*...

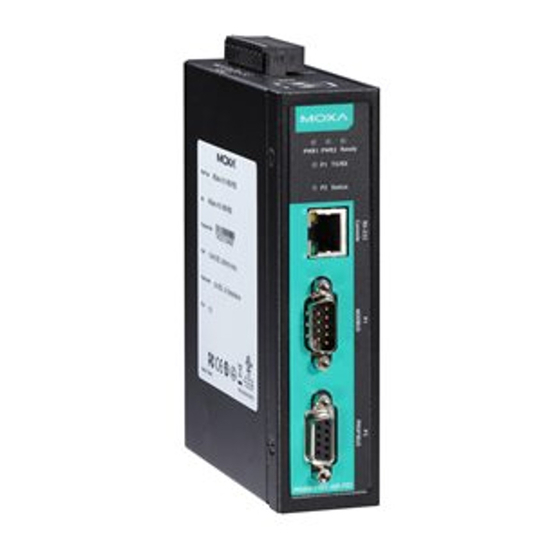

- Page 2 Overview The MGate™ 4101-MB-PBS and 4101I-MB-PBS are 1-port Modbus serial to PROFIBUS slave gateways that provide protocol conversion for users who need to connect Modbus devices to Siemens PLCs. Package Checklist Before installing the MGate 4101-MB-PBS or 4101I-MB-PBS, verify that the package contains the following items: •...
- Page 3 The MGate 4101-MB-PBS and 4101I-MB-PBS both come with an RJ45 to DB9 cable for connecting to a serial console. Reset Button The reset button is used to load factory defaults. Use a pointed object such as a straightened paper clip to hold the reset button down for five seconds.
- Page 4 Wall or Cabinet Mounting Mounting the MGate 4101-MB-PBS on to a wall requires two screws. The heads of the screws should be 5 to 7 mm in diameter, the shafts should be 3 to 4 mm in diameter, and the length of the screws should be more than 10.5 mm.
- Page 5 Reliability Alert Tools Built-in buzzer MTBF MGate 4101-MB-PBS Series: 1,537,948 hrs MGate 4101I-MB-PBS Series: 1,315,666 hrs 1. ATEX Certificate No.: DEMKO 14 ATEX 1311X 2. Protection Method: Ex nA nC IIC T4 Gc 3. IECEx Certificate No: IECEx UL 14.0065X 4.
- Page 6 Terminal Block Torque Value and Wire Gauge: • Terminal block (the plug matched socket): rated at 300 V, 15 A, 105°C, 12-28 AWG (0.0804 mm2 to 3.31 mm2) wire size, torque value 4.5 lb-in (0.509 N-m). The input terminal cable size: 14 AWG (2.1 mm²).
