Activate the panel lock

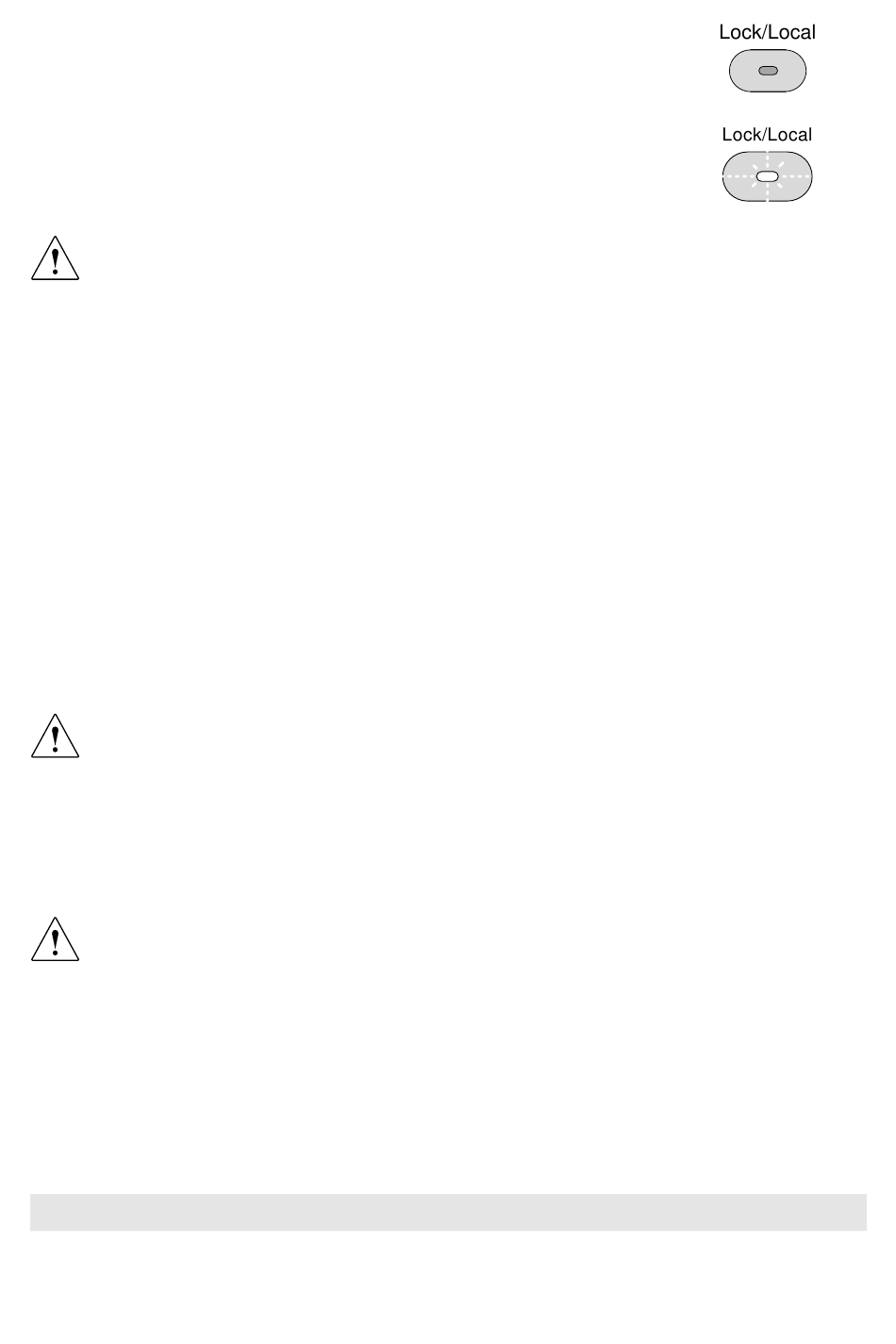

Press the Lock/Local key to active the panel lock. The
key will become illuminated.
Disable the panel lock
Hold the Lock/Local key for ~3 seconds to disable the
panel lock. The Lock/Local light turns off.
Note

2.2.7. Remote Sense

Remote sense is used to compensate for the voltage drop seen across
load cables due to the resistance inherent in the load cables. The remote
sense terminals are connected to the load terminals to determine the
voltage drop across the load cables.
The remote sense compensation voltage is maximum 0.6 volts for low
voltage model and 1V maximum for high voltage model. The load cable
should be selected with a voltage drop less than the compensation
voltage.
Warning
Note
steps Step instructions
When panel lock is enabled, the output key operation
content changes depending on the setting status of
basic function "F-19".
In F-19: 0 setting, output off operation is possible.
In F-19: 1 setting, output off/off operation is possible.
Ensure the output is off before connecting any sense
cables.
Use sense cables with a voltage rating exceeding the
isolation voltage of this product.
Never connect sensing cables when the output is on.
Electric shock or damage to this product could result.
Disconnect the +S terminal and +V output terminal,
and the -S terminal and -V output terminal so that this
product does not become local sensing. For the
constant voltage model, remove the metal plate (2
pieces), and for the high voltage model, remove the
red and black wires from this product.
Please refer to pages
sensing cable to the ±S terminal of this product.
31 and 33
49
for how to wire the
