6 Turn off the power to this product and
check that the various wiring between
the master and slave units is properly
connected.

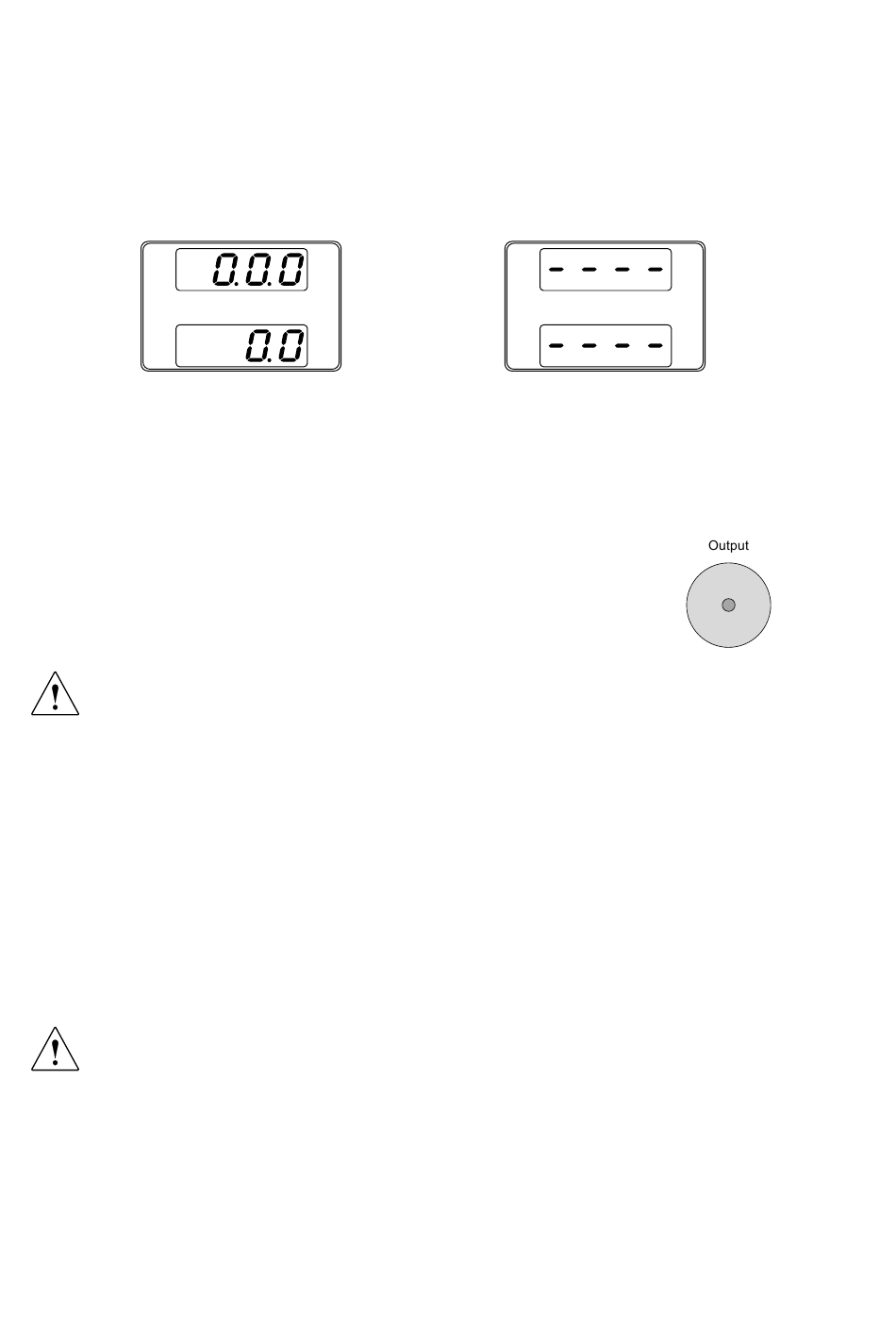

7 Turn on the power of the master and slave units.
The slave units will display "- - - -".
Master unit
8 The master unit can perform various
setting operations in one-control parallel
operation. The operation method for the
master unit is the same as for a
standalone unit.
9 Press the Output key to turn on the
output.
Note

2.4. One-control series operation

This section describes the basic operations required to operate the power
supply in series. Operating this product in series, the total output voltage of
the power supplies can be increased.
The number of the power supplies that can be connected in series
depends on the model and the mode.
Series operation: 2 units maximum (30V, 80V and 160V models only.)
CAUTION
To use this product in series, units must be used in a Master-Slave
configuration. In the master-slave configuration a "master" power supply
controls any other connected "slave" power supplies.

2.4.1. Overview of one-control series operation

One-control series operation of this product is possible for up to two of the
same models. There are some precautions and limitations when using this
In one-control parallel operation, only the master unit can
be operated. On the slave units, only the Function key
can be used to check the settings.
250V and 800V models do not support series
operation.
Slave unit
56
Refer to page 53.
Refer to page 41.
