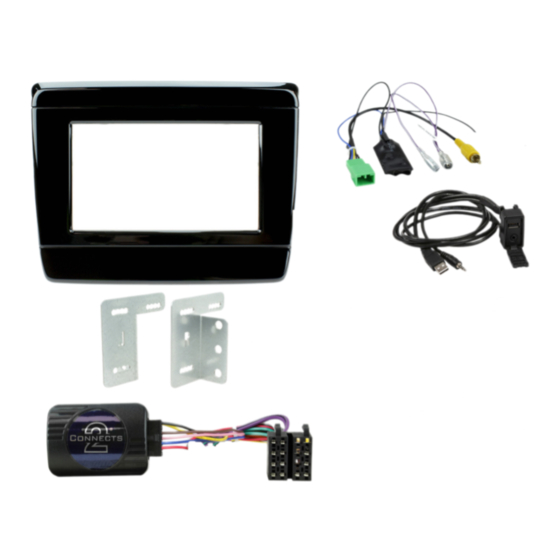

IN THE KIT
i.
Double DIN Fascia Panel
ii.
Brackets & Screws (4)
iii.
SWC Interface/Harness
APPLICATION
Note: Application data is subject to change at any time
Isuzu D-Max
2020 >
Please Note: this installation works for vehicles with and without an OEM touch screen.
FEATURES
• Allows for the installation of a double DIN aftermarket stereo
• Includes mounting brackets and fitting accessories
• Retains factory steering wheel control functionality
• Retains factory phone buttons
• Retains factory reverse camera (if applicable)
• Retains/replaces factory USB/Aux inputs
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
ii.
iii.
iv.
Camera Retention Lead
v.
USB Replacement Lead
vi.
Isuzu Antenna Adapter
DISCLAIMER
Complete Installation Kit
for Isuzu Vehicles
i.
viii.
vii.
Reverse/Speed Lead
viii.
Universal Patch Lead
CTKIZ03
iv.
v.
vi.
vii.
CTKIZ03_IG_v1
