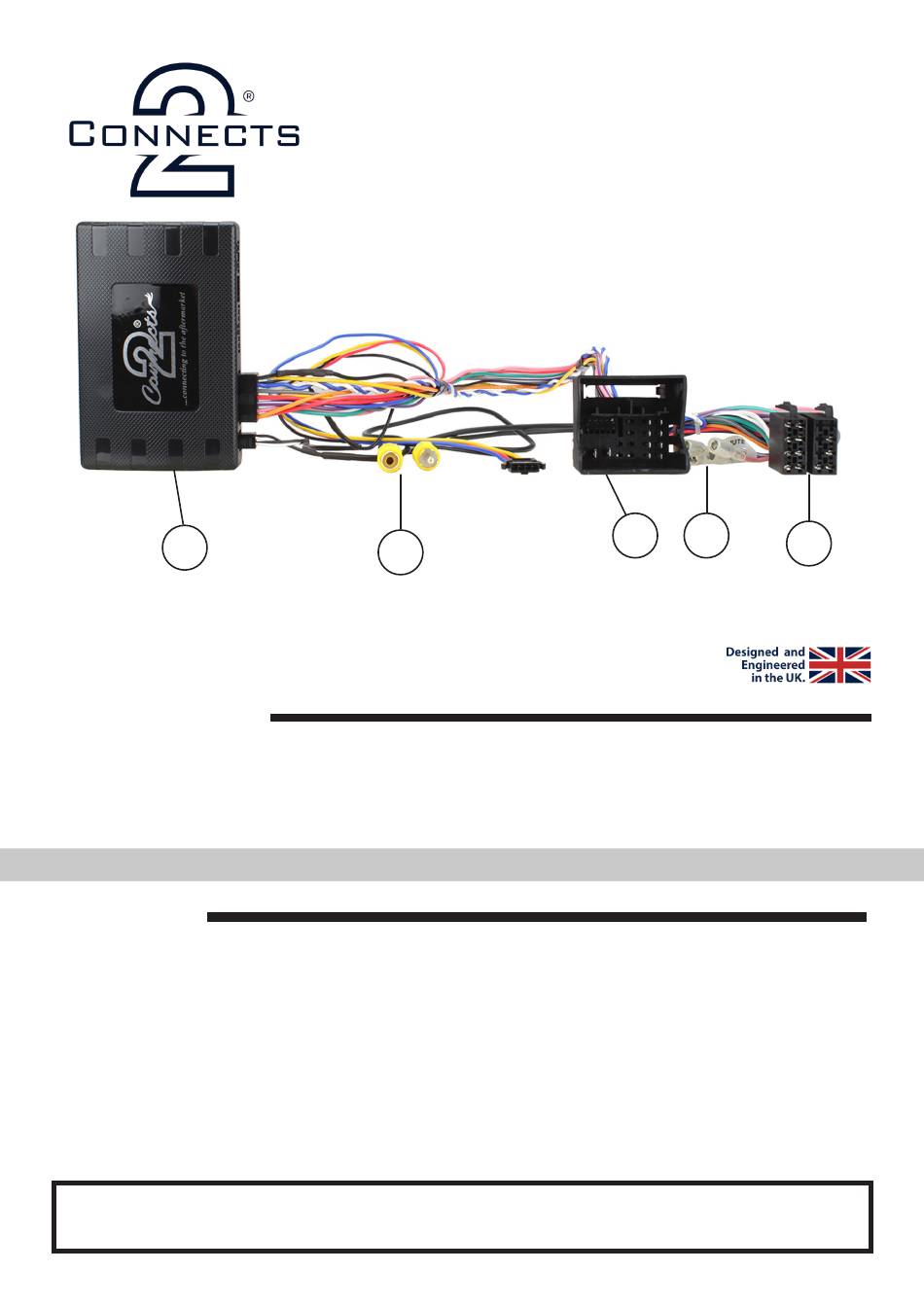

i

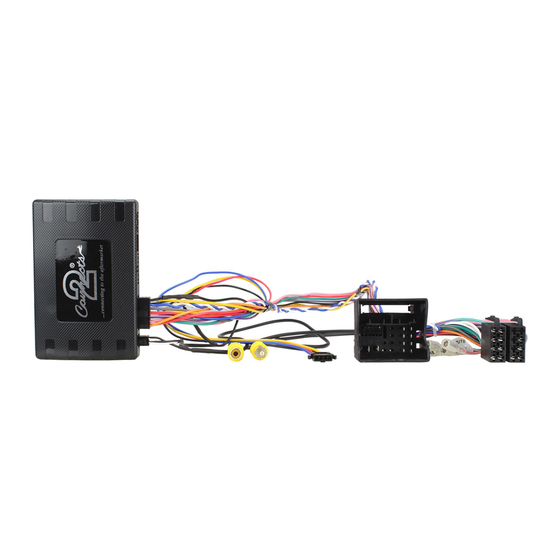

i. Interface Box
ii. Video/Camera RCA (Yellow)
iii. Quadlock Connector
APPLICATION
Seat Arona
Seat Ibiza (6P, KJ)
Seat Leon (5F)
For vehicles with MIB II systems
FEATURES
• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains Vehicle Settings and Generates Settings Menus
• Provides Optional Input for Reversing Camera
• Retains Parking Sensor Audio and Generates Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse and Mute
• Software Updatable
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
ii
iv. Additional Outputs
v. ISO Power/Speaker Connector
2017-UP
2015-UP
2012 - 2015
(contact supplier for more information)
DISCLAIMER
Infodapter Interface
for Seat Vehicles
iii
iv
Note: Application data is subject to change at any time
CTUST02
v
CTUST02_IG_v2
Advertisement
Table of Contents
Related Manuals for Connects2 CTUST02
Summary of Contents for Connects2 CTUST02
- Page 1 CTUST02 Infodapter Interface for Seat Vehicles i. Interface Box iv. Additional Outputs ii. Video/Camera RCA (Yellow) v. ISO Power/Speaker Connector iii. Quadlock Connector APPLICATION Note: Application data is subject to change at any time Seat Arona 2017-UP Seat Ibiza (6P, KJ)
- Page 2 Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
- Page 3 10. Test stereo and steering wheel control functionality for correct operation before reassembling the vehicle dashboard. If Infodapter functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. Need help? Visit support.connects2.com/tickets/technical CTUST02_IG_v2...
- Page 4 WIRING DIAGRAM Additional Outputs Pink - Speed Pulse Green - Park Brake Quadlock Connector Purple/White - Reverse Gear Connect to quadlock connector from vehicle Grey - Mute ISO Connector Connect to aftermarket stereo Female Yellow RCA Connector Connect reversing camera Male Yellow RCA Connector Connect to aftermarket radio camera input...
- Page 5 The driving mode button can be used as normal to activate or deactivate park normal. The graphic for the mode will be MODE MODE assist. The graphic will be shown on shown on the head unit display the head unit display Need help? Visit support.connects2.com/tickets/technical CTUST02_IG_v2...
- Page 6 INFODAPTER MENU Press and hold or double press MUTE or VOICE to Configuration Menu enter the Infodapter Configuration menu and navigate Vehicle Settings through the various options and settings below: Infodapter Settings ENTER MENU Language Version Back VEHICLE SETTINGS Configuration Menu Vehicle Settings The Infodapter interface retains the ability to adjust vehicle settings that were present when the original...
- Page 7 Note, this does not restore vehicle settings to defaults. Configuration Menu Access the vehicle’s trip computer and view data Vehicle Settings including distance travelled, fuel consumption etc Infodapter Settings LANGUAGE Language Version Select language (English/French/German/etc) Back VERSION View software version screen Need help? Visit support.connects2.com/tickets/technical CTUST02_IG_v2...
- Page 8 Need Help? No problem. support.connects2.com/tickets Send us a ticket online 24/7 Troubleshoot with our skilled team Get support until your issue is resolved CTUST02_IG_v2...
