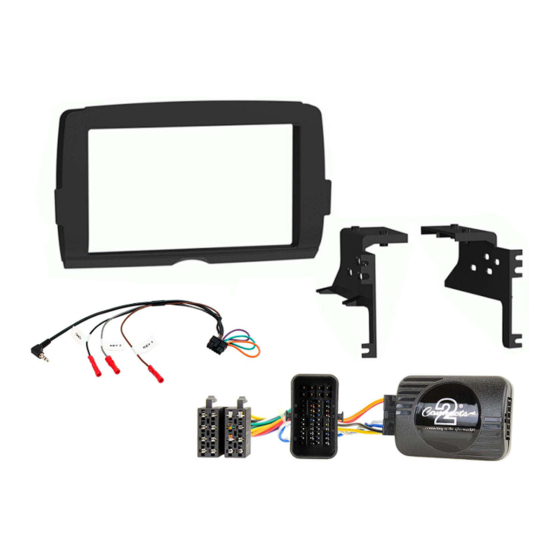

IN THE KIT
i.
Double DIN Fascia
ii.
Brackets
APPLICATION
Note: Application data is subject to change at any time
Harley Davidson Street Glide (FLHX-FLHT)
Please Note: this kit is to be used with double DIN stereos which feature an L shaped chassis only.
FEATURES
• Allows for the installation of a double DIN aftermarket stereo
• Retains steering wheel control & phone button functionality
• Plug-and-play connections for easy installation
• Includes additional accessories including universal patch lead
• Finished in black to match the vehicles dashboard
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
iv.
iii.
Vehicle Interface & Harness
iv.
Universal Patch Lead
DISCLAIMER
Complete Installation Kit
for Harley Davidson vehicles
iii.
2014 - UP
CTKHA02
ii.
CTKHA02_IG_v1
