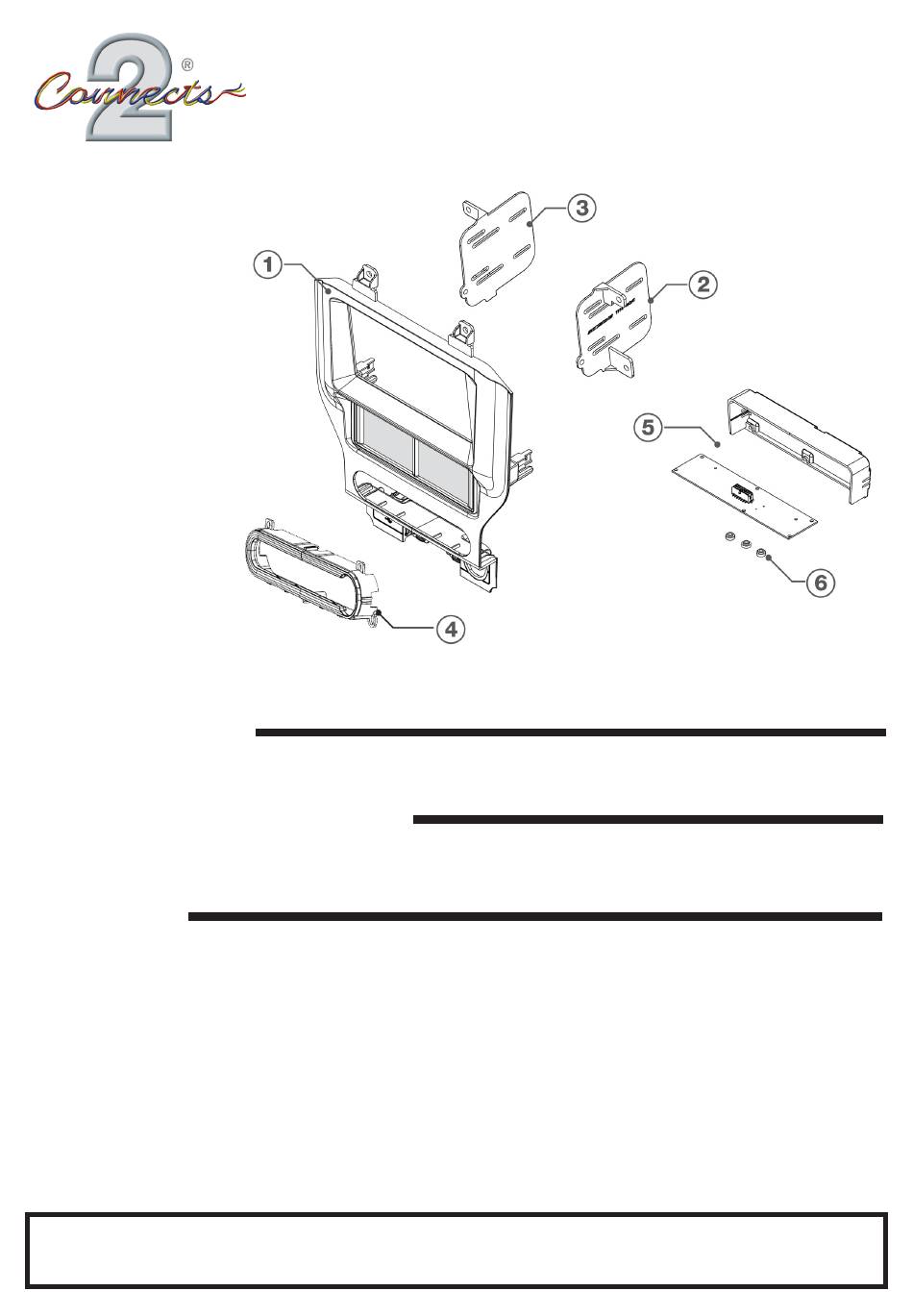

1. Fascia Panel
2. Right Bracket
3. Left Bracket
4. Four Switch Trim
5. Back Cover
6. PCB Spacer
APPLICATION
Ford Mustang
For vehicles with Concert, Chorus or Symphony factory stereo and Mini ISO connector
RECOMMENDED TOOLS
• Panel Removal Tool
FEATURES
• Allows for the installation of a double DIN aftermarket stereo
• Replaces HVAC control unit
• Retains climate controls, steering wheel controls, heated seats, vehicle OE
personalisation menus and settings
• Accomodates OEM toggle or OEM push button switches

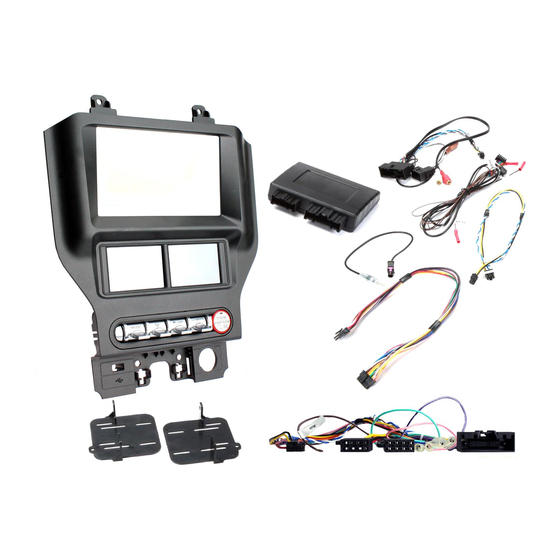

• Includes mounting brackets and fitting accessories
• Finished in gun metal to match vehicle dashboard
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Integrated Touch Screen Control Kit
2015>
(Right Hand Drive Models Only)
• Screwdriver
DISCLAIMER
for Ford Vehicles
Note: Application data is subject to change at any time
• Cutting Tool
CTKPFD10
CTKPFD10_IG_v2
