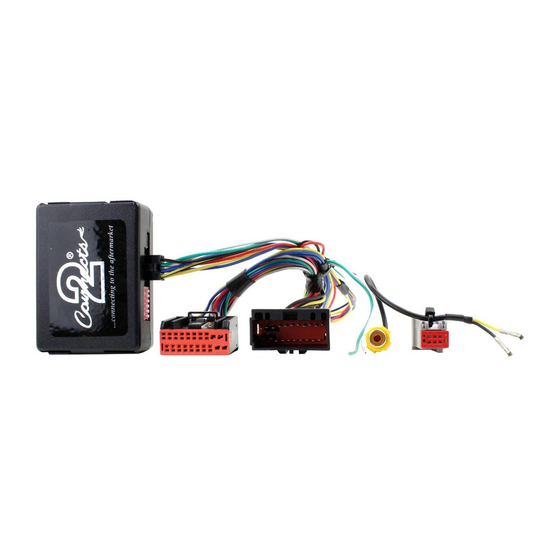

- Page 1 CAM-LR1-AD Rear View Camera Input and Video In Motion Application: Land Rover Range Rover Vogue (L322) 2010 - 2012, Range Rover Sport (L320) 2004 - 2013, Discovery (L319) 2010 - 2011 For Touch Screen Navigation Version 2.0 Head Units www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 Fakra male connector of the factory monitor. When reverse gear is engaged, the navigation will automatically switch to this input. Pin Configuration Range Rover Vogue Cable Colour Assignment Yellow/White CAN-HIGH Pin 9 Yellow/Blue CAN-LOW Pin 10 Range Rover Sport/Discovery Cable Colour Assignment Yellow/White CAN-HIGH Yellow CAN-LOW www.connects2.com...
- Page 4 Black Pin 5 Ground Green Pin 6 Activation of the video-in-motion function (+12V = TV-free activated) White Pin 2 Trigger output (+12V DC 500mA) Monitor Connection Pin Configuration Pin 2: Video-signal rear-view camera Pin 5: Video-signal ground rear-view camera www.connects2.com...
- Page 5 The installaton location is on rear of the radio module and behind the factory navigation monitor. In Range Rover Vogue vehicles, the radio module is a hide- away box, located behind the glove box. In Range Rover Sport and Discovery 4 vehicles, the radio module is located behind the factory navigation monitor. www.connects2.com...
- Page 6 3. Plug the female system-connector of the supplied harness into the male socket on the rear of the radio module. Connecting to Rear-View Camera Supplied Adapter Female 6pin connector www.connects2.com...
- Page 7 Connect a switch to the green cable and connect the green cable to +12V ACC. ● +12V = Video in Motion is activated ● 0V = Video in Motion is not activated Note: The loose white cable is not required and must be isolated. www.connects2.com...
- Page 8 NOTES www.connects2.com...
