i.
iii.

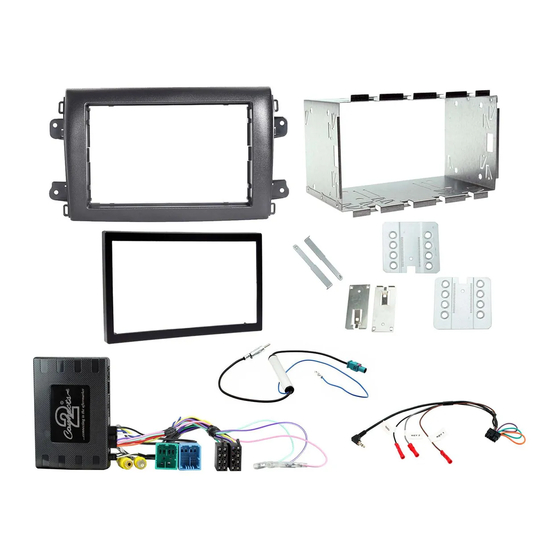

IN THE KIT
i.
Double DIN Fascia
ii.
Cage, Brackets & Accessories
iii.
Steering Wheel Interface & Harness
APPLICATION
Note: Application data is subject to change at any time
Fiat Ducato (8 Series)
FEATURES
• Allows for the installation of a double DIN aftermarket stereo
• Comes complete with accessories for fitment of single/double DIN stereo
• Retains steering wheel control & phone button functionality
• Retains vehicle settings and generates setting menus
• Provides outputs for Park Brake, Reverse Gear and Speed Pulse
• Includes additional accessories including antenna adapters and patch lead
• Finished in black to match the vehicles dashboard
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Complete Installation Kit
iv.
iv.
Antenna Adapter
v.
Universal Patch Lead
2021 - UP
DISCLAIMER
CTKFT34
for Fiat vehicles
ii.
v.
CTKFT34_IG_v1
Advertisement
Table of Contents
Related Manuals for Connects2 CTKFT34
Summary of Contents for Connects2 CTKFT34
- Page 1 CTKFT34 Complete Installation Kit for Fiat vehicles iii. IN THE KIT Double DIN Fascia Antenna Adapter Cage, Brackets & Accessories Universal Patch Lead iii. Steering Wheel Interface & Harness APPLICATION Note: Application data is subject to change at any time...
-
Page 2: Product Information
PRODUCT INFORMATION The CTKFT34 is a complete installation kit that allows for the fitment of an aftermarket head unit into the OEM dashboard of Fiat Ducato (8 Series) vehicles. The interface provided helps retain steering wheel control presets and phone button functionality, as well as retaining vital features and functions which include OEM vehicle settings. -
Page 3: Steering Wheel Controls
STEERING WHEEL CONTROLS EXAMPLE STEERING WHEEL CONTROL DIAGRAM The following diagram, though based on careful research, is an example only. Individual steering wheel control configurations may differ. The Infodapter will retain several of the vehicle’s original steering wheel control functions including moving up and down between tracks, adjusting the volume and picking up or hanging up calls. - Page 4 FASCIA DIAGRAM Need help? Visit support.connects2.com/tickets/technical CTKFT34_IG_v1...
-
Page 5: Wiring Diagram
WIRING DIAGRAM FM/Blue Phantom Power Connections Fakra Antenna Connection Connect to aftermarket stereo Connect to OEM Antenna connector from vehicle Flying Wires 12-Way/32-Way Connector Pink - Speed Pulse Connect to relevant connectors from vehicle Green - Park Brake ISO Connector Purple/White - Reverse Gear Connect to aftermarket stereo Aftermarket Camera RCA Connector... -
Page 6: Prior To Installation
Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product. -
Page 7: Dash Assembly
INSTALLATION GUIDE - FASCIA DASH ASSEMBLY Take the cage from within the kit and place it within the new fascia, locking it into place using the tabs surrounding the outside. With the cage in place, and the head unit connected correctly, proceed to slot the radio into the dashboard until it clips into place. - Page 8 If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. For further help, please contact and fill out a support ticket with the full details of your issue at: support.connects2.com/tickets/technical Need help? Visit support.connects2.com/tickets/technical CTKFT34_IG_v1...
- Page 9 INFODAPTER MENU Once the CTKFT03 has been installed into the vehicle successfully, simply hold the ‘Speech’ button (Fig.8) on the steering wheel to access the ‘Configuration Menu’. Note: In the case that the vehicle does not feature phone buttons, the ‘Source’ button will act as Infodapter enter/exit button.
- Page 10 The latter of the settings menu gives the user a selection ◎Français ◎Español of languages - English/French/German/etc. - as well as the ◎Swedish ◎Brasileiro ability of viewing the current version history. ◎Greek ◎Hungarian ◎Polski ◎Português ◎Russian ◎Türkçe Need help? Visit support.connects2.com/tickets/technical CTKFT34_IG_v1...
- Page 11 NOTES CTKFT34_IG_v1...
- Page 12 NOTES Need help? Visit support.connects2.com/tickets/technical CTKFT34_IG_v1...
