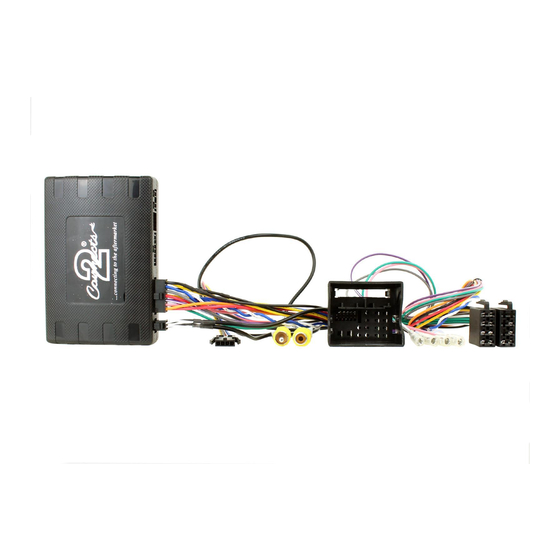

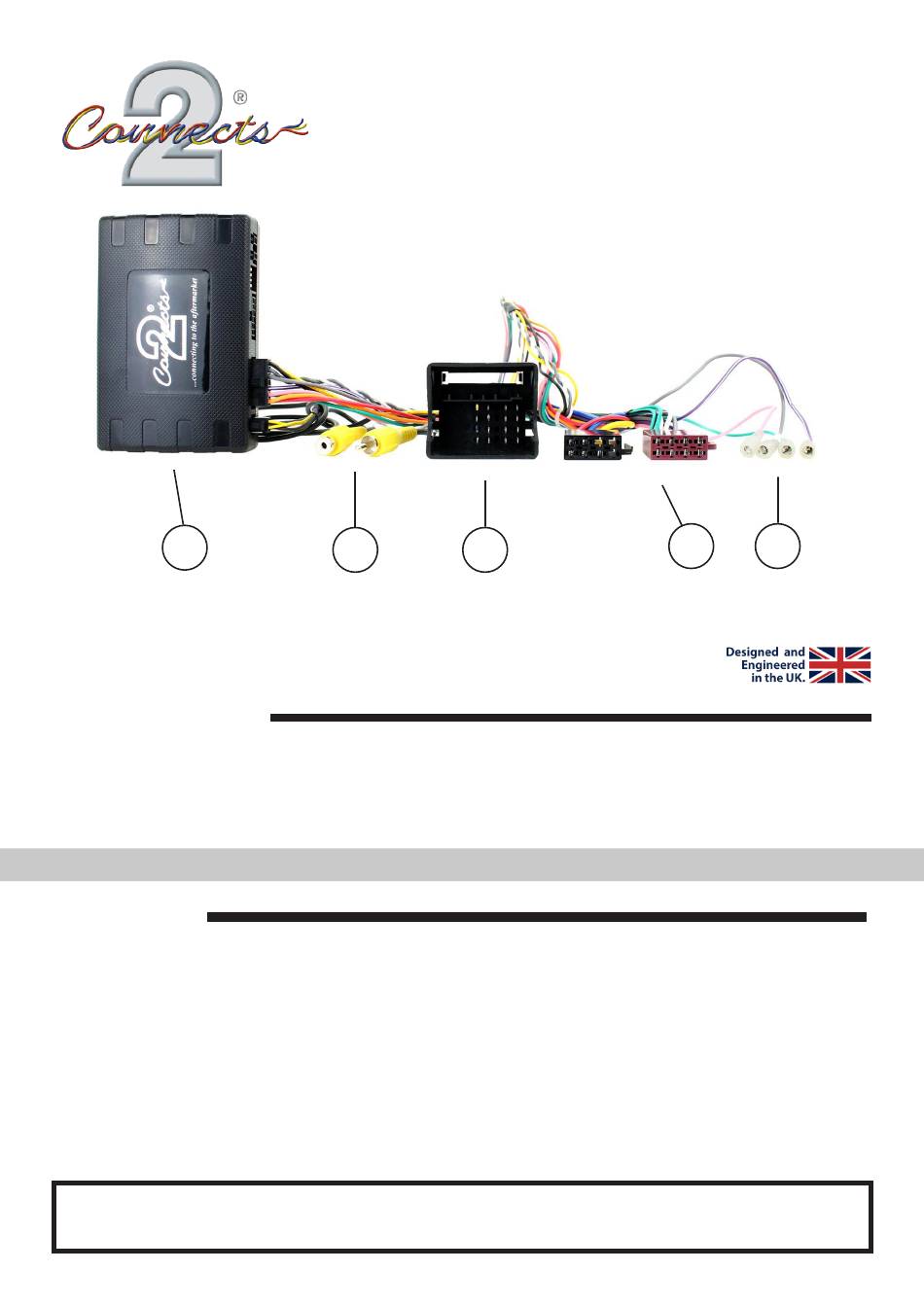

i. Interface Box
ii. Video/Camera RCA (Yellow)
iii. Quadlock Connector
APPLICATION
Skoda Fabia (NJ)
Skoda Rapid (NHx)
For vehicles with MIB II systems
FEATURES
• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains Vehicle Settings and Generates Settings Menus
• Provides Optional Input for Reversing Camera
• Retains Parking Sensor Audio and Generates Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse and Mute
• Software Updatable
