APPLICATION
Note: Application data is subject to change at any time
Subaru Impreza
Subaru XV
Subaru Crosstrek 2018-2021
FEATURES
• Retains Factory Steering Wheel Control Functionality
• Retains Factory Phone Button Functionality
• Retains factory Amplified System
• Retains factory rear camera
• Retains factory USB Panel
• Provides Outputs for Park Brake, Speed Pulse & Reverse Gear
• Software Updatable
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
2017-2021
2018-2021
DISCLAIMER
1

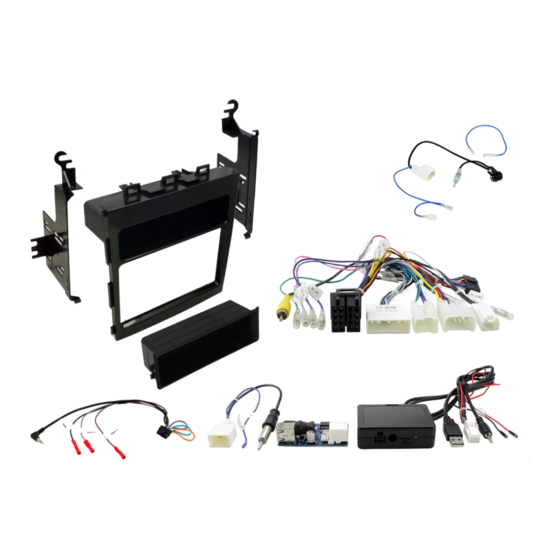

CTKSU04
Full Installation Kit
for Subaru Vehicles
CTKSU04
Advertisement
Related Manuals for Connects2 CTKSU04
Summary of Contents for Connects2 CTKSU04
- Page 1 CTKSU04 Full Installation Kit for Subaru Vehicles APPLICATION Note: Application data is subject to change at any time Subaru Impreza 2017-2021 Subaru XV 2018-2021 Subaru Crosstrek 2018-2021 FEATURES • Retains Factory Steering Wheel Control Functionality • Retains Factory Phone Button Functionality •...
- Page 2 Disconnect any wiring harnesses or cables that are still attached to the radio. There may be a clip that needs to be pressed in to release the harness or cable. Once all the wiring has been disconnected, the radio should be free to remove entirely. CTKSU04...
-
Page 3: Prior To Installation
Please ensure that the correct tools are using during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product. - Page 4 For further help, please contact and fill out a support ticket with the full details of your issue at: support.connects2.com/tickets/technical IMPORTANT: THIS STEP MUST BE COMPLETED BEFORE CONNECTING POWER TO THE INTERFACE. FAILURE TO DO SO MAY RESULT IN A LACK OF FUNCTIONALITY AND THE NEED TO REINSTALL THE PRODUCT CTKSU04...
- Page 5 In order trigger the vehicles time / date menu the MFD must not be displaying the following: Pull and hold “i/ SET” switch for menu. (As shown by the image above). You can scroll through the MFD in order to exit this page. Need help? Visit support.connects2.com/tickets/technical CTKSU04...
- Page 6 Once activiated, you will be able to access the vehicles original settings. Here you are able to adjust time/date alongside reviewing various other driver settings as illustrated by the image. The clock can now be adjusted through the vehicles factory protocol. CTKSU04...
