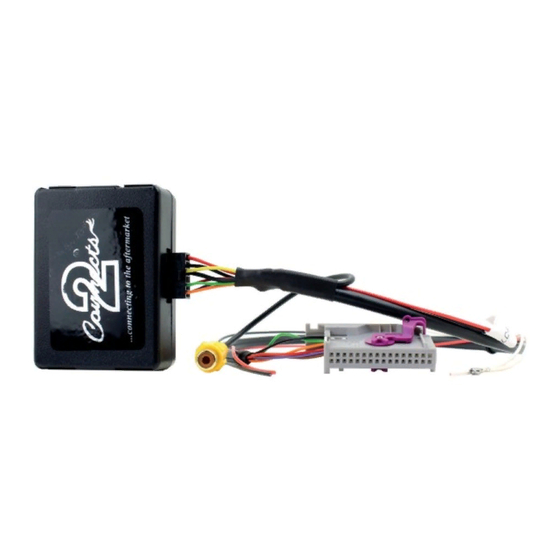

CAM-AU5-AD
Reverse Camera Add On Interface
Application:
Audi A3 2004-2010, A4 2004-2010, TT 2004-2010
For Audi Navi Plus RNS-E Head Units with 6.5" Display (16:9)
Newer Piano Black. High Res Colour RNS-E Not Compatible
www.connects2.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM-AU5-AD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Connects2 CAM-AU5-AD

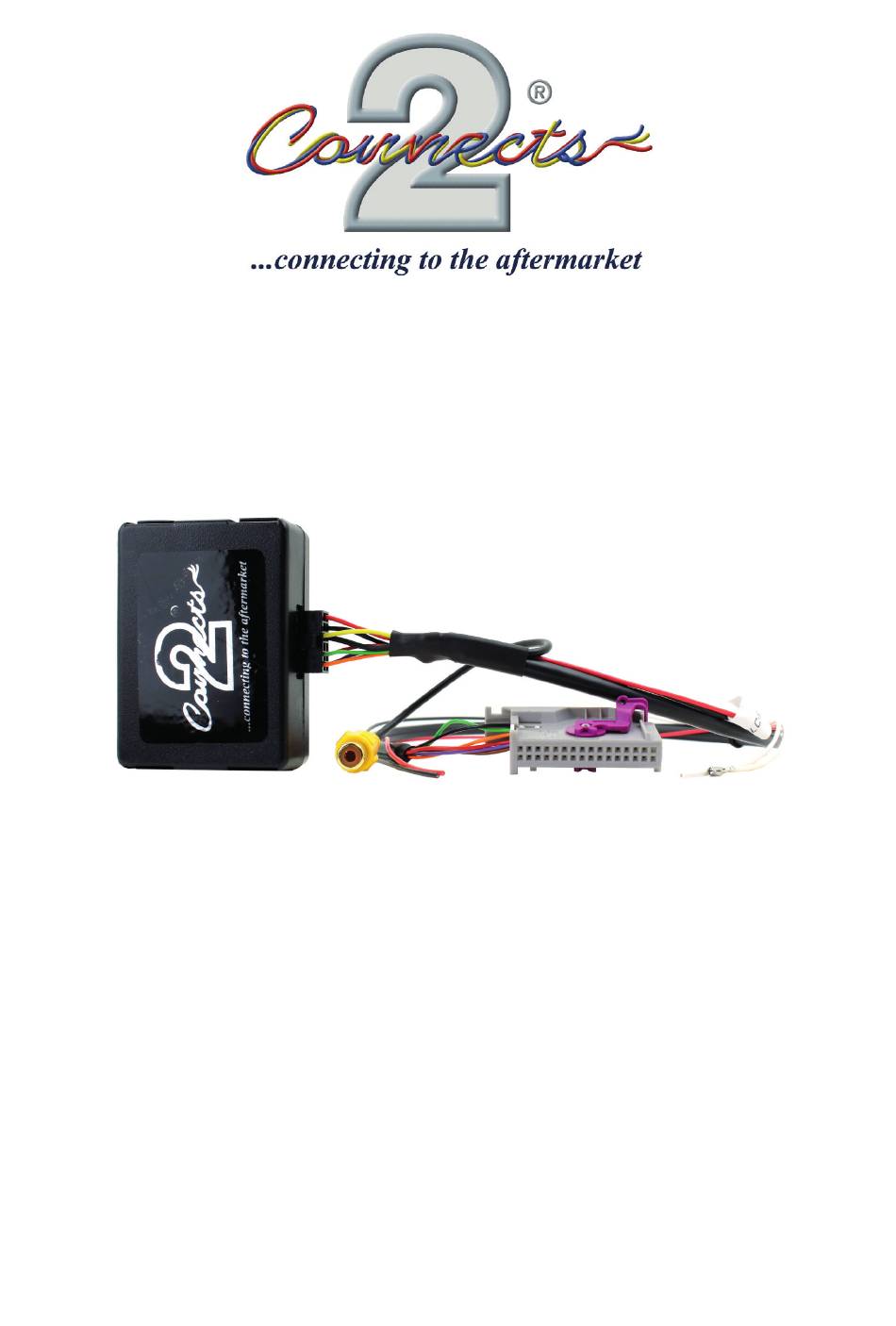

  • Page 1 CAM-AU5-AD Reverse Camera Add On Interface Application: Audi A3 2004-2010, A4 2004-2010, TT 2004-2010 For Audi Navi Plus RNS-E Head Units with 6.5” Display (16:9) Newer Piano Black. High Res Colour RNS-E Not Compatible www.connects2.com...
  • Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
  • Page 3 CONNECTION DIAGRAM/INSTALLATION Connection Diagram Interface Box Harness Installation NB: Before installation, switch off ignition, disconnect the vehicle battery and remove the vehicle’s head unit. www.connects2.com...
  • Page 4 Note: If the 32pin AMP-socket of the head-unit is already occupied, the vehicle may have a factory TV-tuner which must be uninstalled. Disconnect the female 32pin AMP-connector of the factory harness and disconnect all wires from the factory TV-tuner. www.connects2.com...
  • Page 5 (Only possible on RNS-E with minimum software 550 and <2010). If coding is done by diagnosis PC, code “match” rear-view camera to value 1 in channel 04, controller 56. After coding, the vehicle needs to be locked to reach sleep mode. www.connects2.com...
  • Page 6 NOTES www.connects2.com...
  • Page 7 NOTES www.connects2.com...
  • Page 8 NOTES www.connects2.com...
