Connects2 CTKFD91 Manual

Double din installation kit for ford sync3 vehicles
Hide thumbs

Advertisement

Quick Links

Download this manual
i.
iii.

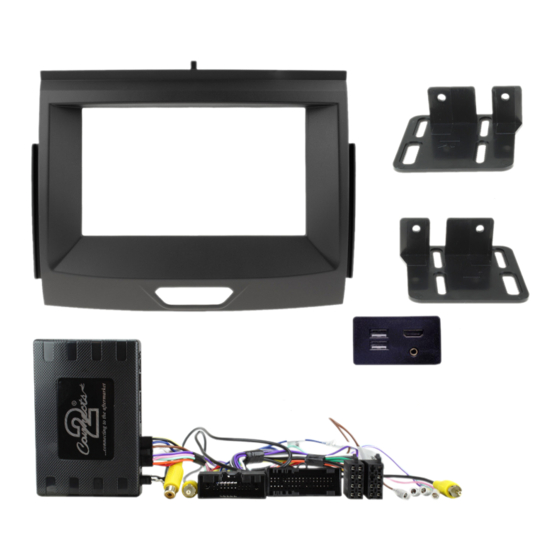

IN THE KIT
i.
Double DIN Fascia Panel
ii.
Brackets & Hex Screws (8)
iii.
Retention Interface & Harness
APPLICATION
Ford Ranger
2016 - 2022
For SYNC3 systems only.
FEATURES
• Allows for the installation of a double DIN aftermarket stereo
• Includes mounting brackets and fitting accessories
• Retains vehicles settings, steering wheel and phone button functionality
• Retains original fitted reverse camera feed
• Generates settings menus, parking sensor audio and graphics
• Provides outputs for Park Brake, Reverse Gear, Speed Pulse and Mute
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Double DIN Installation Kit
iv.
iv.
Audi Antenna Adapter
v.
USB Retention Lead
vi.
Universal Patch Lead
DISCLAIMER
for Ford SYNC3 vehicles
ii.
v.
Note: Application data is subject to change at any time
CTKFD91
vi.
V1 07/22
