APPLICATION

Porsche Panamera
Porsche Macan (95B)
Porsche Cayenne
Porsche 911 (991)
For non-amplified vehicles with quadlock connector

FEATURES

• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains USB and AUX Inputs
• Retains Reversing Camera
• Retains Parking Sensor Audio and OEM Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse, Mute & Amp Remote
• Updateable via USB
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
iii
v. RCA AUX (Red/White)
vi. RCA Camera (Yellow)
vii. Flying Wires
viii. USB Retention Harness
2009 - 2016
2014 - 2016
2011 - 2016
2011 - 2016
(contact supplier for more information)

DISCLAIMER

Infodapter Interface
for Porsche Vehicles
ii
i
viii
Note: Application data is subject to change at any time
CTUPO01
vi
vii
v
CTUPO01_IG_en-GB_v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTUPO01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Connects2 CTUPO01

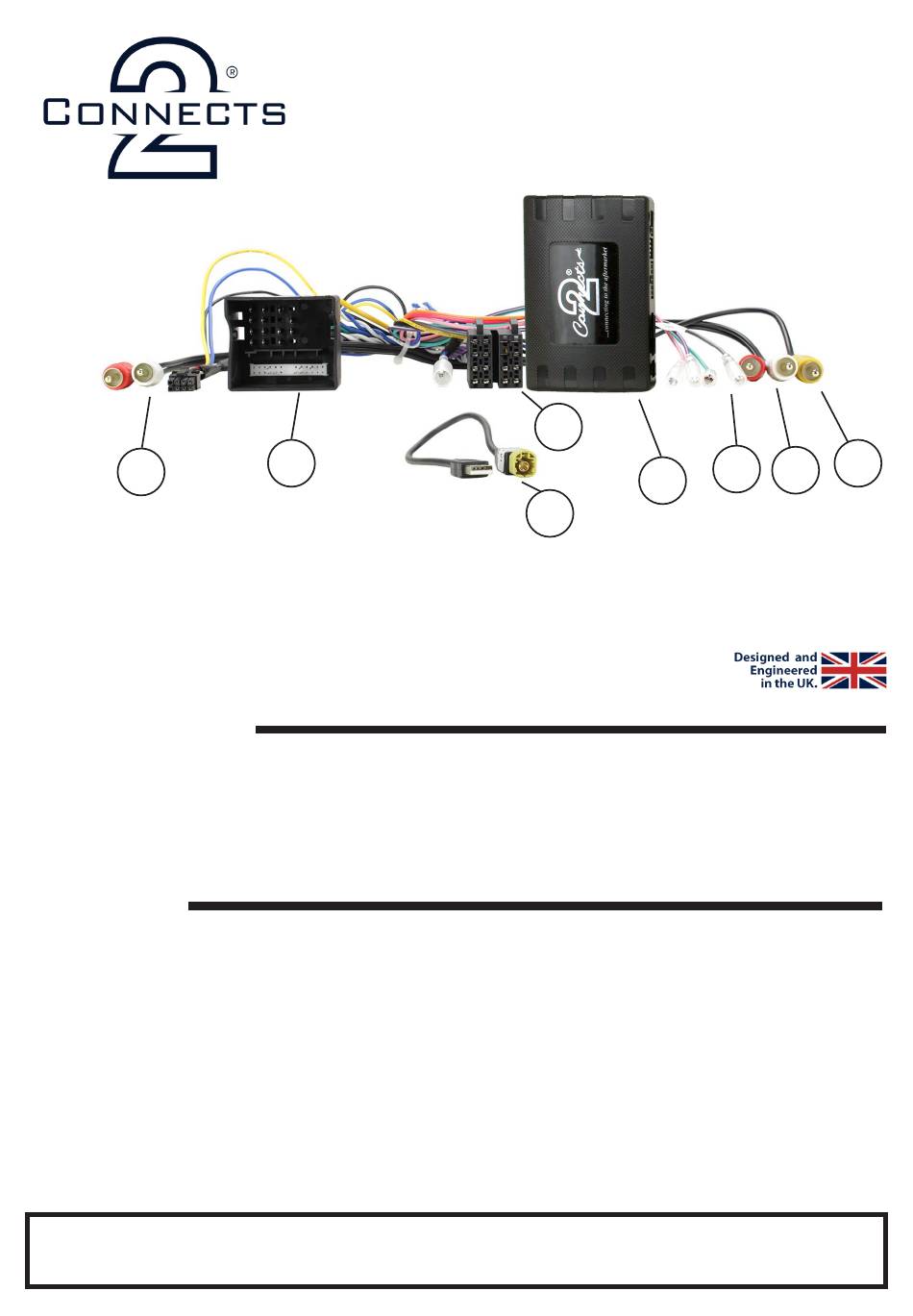

  • Page 1 CTUPO01 Infodapter Interface for Porsche Vehicles viii i. Interface Box v. RCA AUX (Red/White) ii. ISO Connector (16 Pin) vi. RCA Camera (Yellow) iii. Quadlock Connector (40 Pin) vii. Flying Wires iv. *RCA Amplifier (Red/White) viii. USB Retention Harness *Not Used...
