About this manual
This manual describes the installation steps of the splice application of the Compact Closure 40 series. Installation
steps in this document are limited to: drop cable installation, routing on and to the different trays , splicing on the
different trays, storage on the hinged tray, splitter application.
Installation steps of the feeder cables are explained in manual TC-1520-IP: CC 40 Basic Instructions.
The document starts with providing an overview of the tools required to perform the installation. Also warnings and
cautions are indicated, which should be observed before starting the product installation.
Images in this manual are for reference only and are subject to change.
General product information
Drop cable entry ports
Splice capacity
Overview organizer
1
1
Hinged tray
2
Front tray
3
Drop cable strain relief T-shapes
4
Octopus
gel seal
™
5
Locking features
NOVUX™ Fiber Optic System
CC 40 - Splice Application
2
3
4
5
7
page 1 / 9
© 2022 CommScope, Inc. All Rights Reserved
Installation Instructions
up to 8
up to 48 Smouv protectors (Smouv protectors length is up
to 45 mm / 1.77 Inches
Quantity
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope NOVUX CC 40
Summary of Contents for CommScope NOVUX CC 40

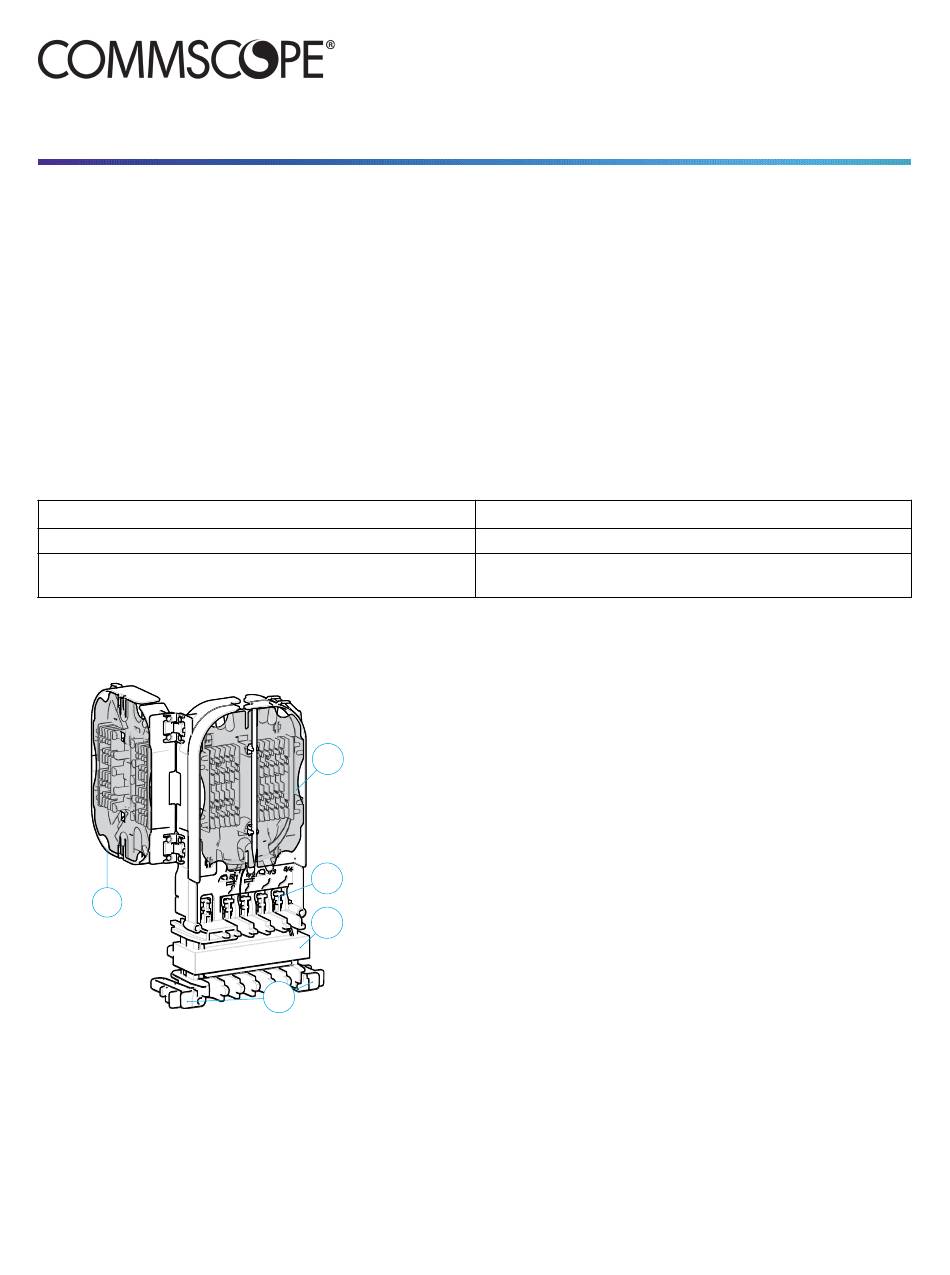

- Page 1 48 Smouv protectors (Smouv protectors length is up Splice capacity to 45 mm / 1.77 Inches Overview organizer Hinged tray Front tray Drop cable strain relief T-shapes Octopus gel seal ™ Locking features page 1 / 9 © 2022 CommScope, Inc. All Rights Reserved...
-
Page 2: Table Of Contents
7.2 Splicing on hinged tray.................7 4.1 Using T-shapes integrated in organizer..........4 Splitter application................8 Route drop fibers to front splice tray..........5 Trade-marks..................9 Routing feeder and drop to hinged tray.........6 Contact information................9 page 2 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 3: Abbreviations
Important: For this closure (CC 40), the jacket of the drop cable should be removed in all cases over a distance of 81 ±5 cm / 32 ±2 Inches. page 3 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 4: Using T-Shapes Integrated In Organizer
50% while wrapping the tape around the cable. First apply a full turn around the cable, then continue to cover up to the second mark. Make one turn at the end point and come back with the remaining tape. page 4 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 5: Route Drop Fibers To Front Splice Tray
If only 4 drops are used, they can be secured to the t-shapes. Use the mini dual cable strain relief kit to secure more then 4 drops. Store the drop fibers on the front tray, waiting for feeder fibers. page 5 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 6: Routing Feeder And Drop To Hinged Tray
Route the drop fibers over the hinge to the slot at the bottom of the hinged tray Drop fibers routed on the hinged splice tray, waiting for feeder fibers. page 6 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 7: Splice Drop Cable
Make sure all fibers are properly positioned underneath the lips and avoid bulging of the fiber. The fiber guidance pen can be used to position all the fibers underneath the lips. page 7 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 8: Splitter Application
The fiber guidance pen can be used to position all the fibers underneath the lips. Make sure all fibers are properly positioned underneath the lips and avoid bulging of the fiber. page 8 / 9 © 2022 CommScope, Inc. All Rights Reserved... -
Page 9: Trade-Marks
This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to CommScope products or services. CommScope is committed to the highest standards of business integrity and environmental sustainability, with a number of CommScope’s facilities across the globe certified in accordance with international standards, including ISO 9001, TL 9000, and ISO 14001.
