TC-1514-IP-PA
Rev. A, September 2022
http://www.commscope.com
About this manual
This manual describes the installation steps of the drop patch application of the Compact Closure 150 series.
Installation steps in this document are limited to: splice input connectors to feeder fiber, splitter application in the
pocket zone and install connectorized drop cable (SC, LC, SC Xpres and duplex LC Xpres).
Installation steps of the feeder cables are explained in manual TC-1514-IP: CC 150 Basic Instructions.
Installation steps of the branch applications are explained in manual TC-1514-IP-BR: CC 150 Branch Application.
The document starts with providing an overview of the tools required to perform the installation. Also warnings and
cautions are indicated, which should be observed before starting the product installation.
Images in this manual are for reference only and are subject to change.

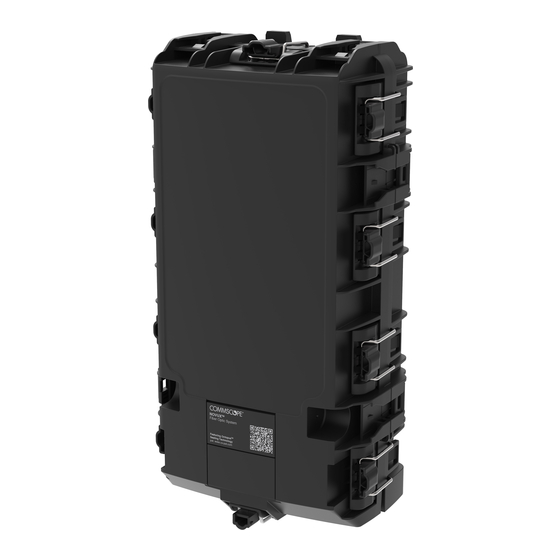

General product information
SC/APC or SC/UPC
up to 8
LC/APC or LC/UPC
up to 16
Overview organizer

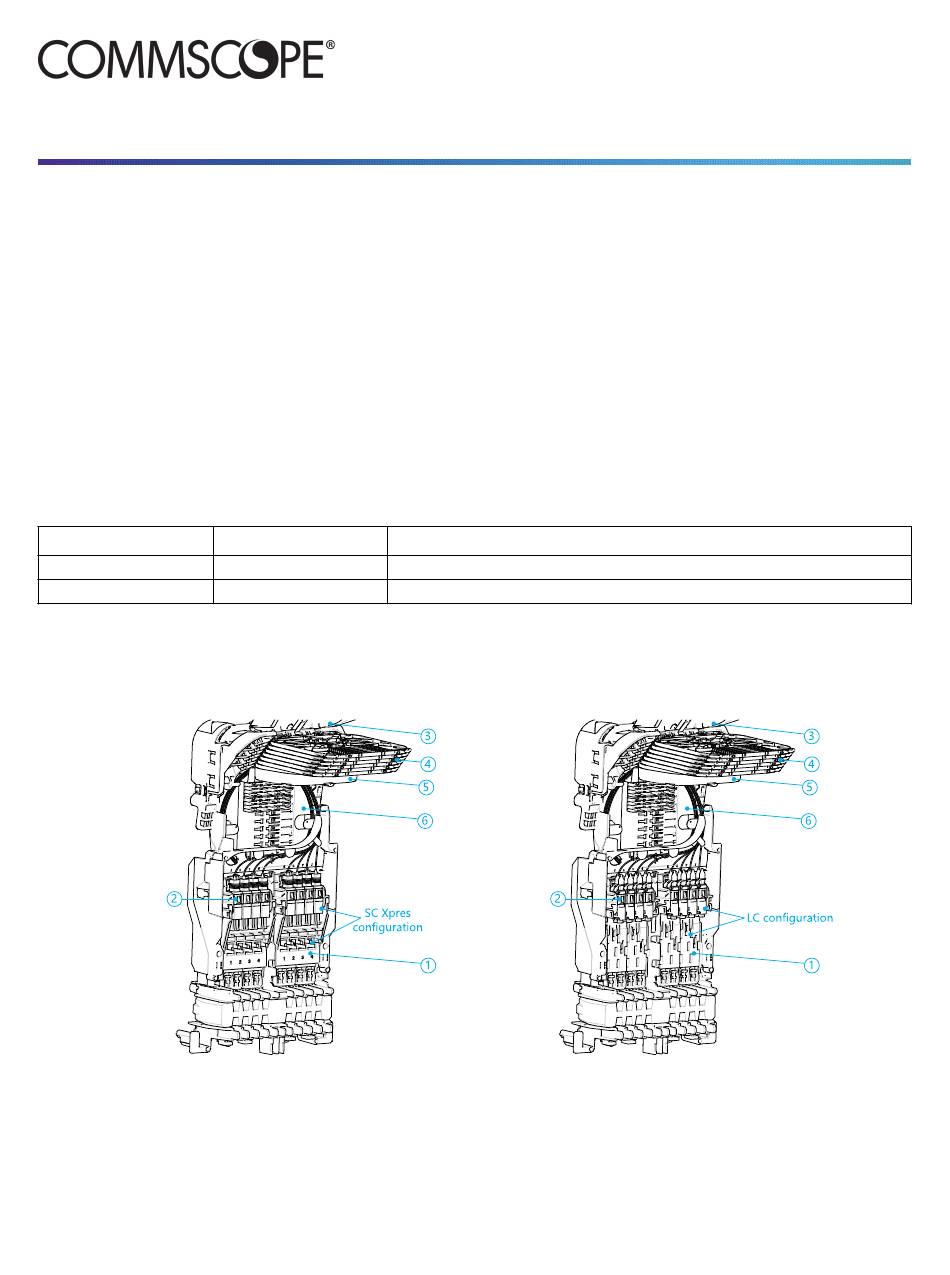

Different patch configurations are available: SC, LC, SC Xpres, duplex LC Xpres,..
First figure below shows SC Xpres configuration, second figure shows the LC configuration.
1
Drop cable positions
2
Adapters with input connectors factory installed (SC or LC)
3
Demarcation cover
4
Splice trays
5
Storage trays
6
Pocket with input 900µm (8 or 16) temporarily stored
NOVUX™ Fiber Optic System
CC 150 Drop Patch Application
Quantity drops
Pre-connectorized, Xpres drop
Pre-connectorized, dual Xpres drop
© 2022 CommScope, Inc. All Rights Reserved
Installation Instructions
Installation method drops
page 1 / 12
