CommScope SEC 100 Installation Instructions Manual
CommScope SEC 100 Installation Instructions Manual

CommScope SEC 100 Installation Instructions Manual

Novux fiber optic system patch application

Advertisement

Quick Links

TC-1449-IP-PA
rev. C, June 2022
http://www.commscope.com
About this manual
This installation instructions document describes the installation of the SEC 100 Patch Application. The document
provides an overview of the tools required to perform the installation. Also warnings and cautions are indicated, which
should be observed before starting the product installation.
Following installation steps are covered in this document: closure preparation, feeder cable preparation and installation,
drop cable preparation and installation, routing towards and on the trays, patching, closing the closure and mounting
the closure.
Note:
Closure variant shown in illustrations in these instructions are for reference only and doesn't impact installa-
tion procedure.

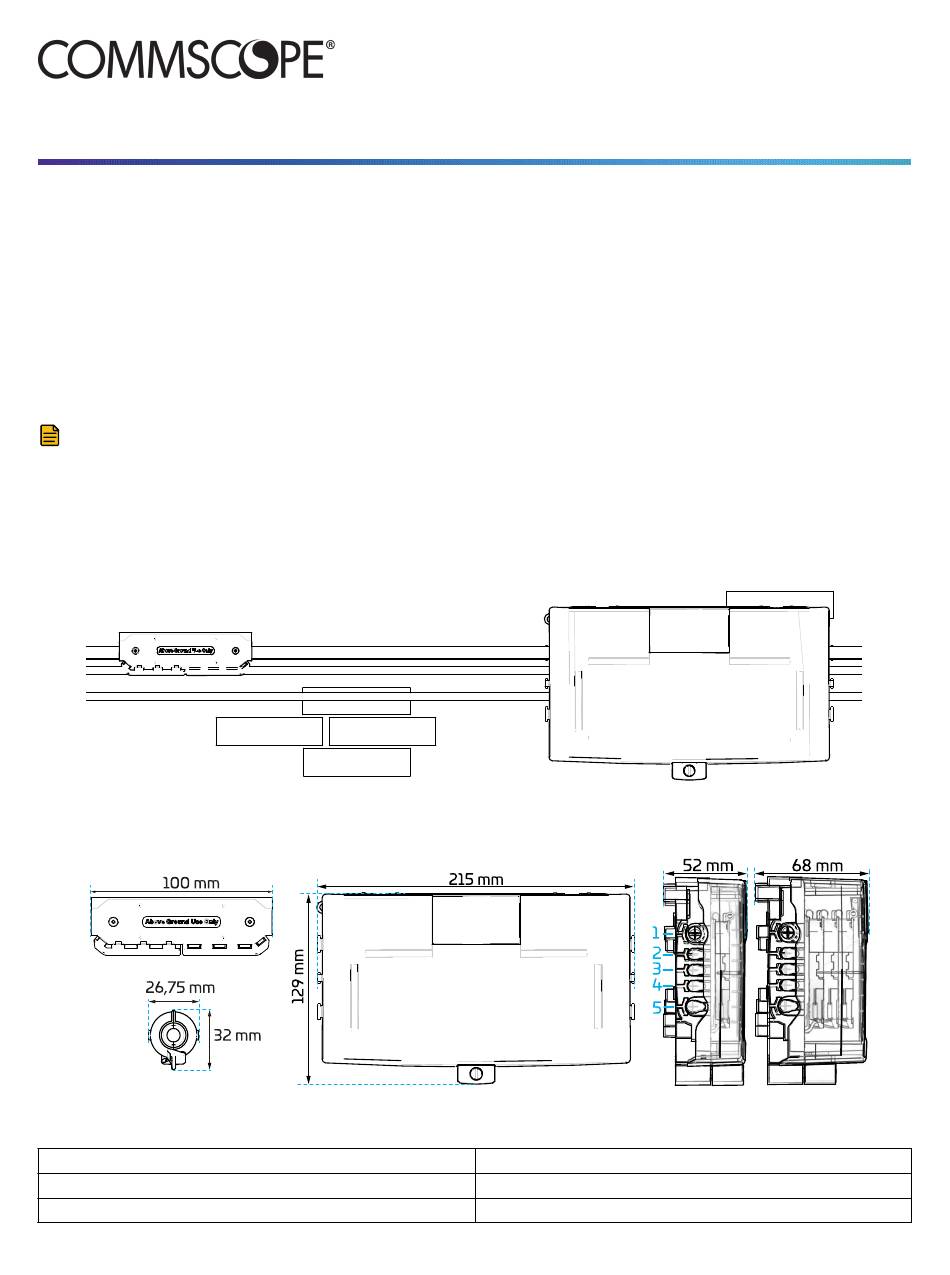

General product information
System overview
Clip
Dimensions
Cable range
1, 5(turn seal)
2, 3, 4
NOVUX™ Fiber Optic System
SEC 100 Patch Application
Position
© 2022 CommScope, Inc. All Rights Reserved
Installation Instructions
Cable diameter range
8-12 mm
up to 7 mm
page 1 / 14
S E C Closure

Advertisement

loading
Need help?

Need help?

Do you have a question about the SEC 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for CommScope SEC 100

  • Page 1 SEC 100 Patch Application About this manual This installation instructions document describes the installation of the SEC 100 Patch Application. The document provides an overview of the tools required to perform the installation. Also warnings and cautions are indicated, which should be observed before starting the product installation.
  • Page 2 4.6 Remove the cable holders and select correct screws......5 Reinstall closure cover..............13 Feeder cable preparation..............6 Lock the closure................13 5.1 Window cut......................6 Disclaimer..................14 5.2 Shave cable......................6 Contact information..............14 Position closure on the cable............7 page 2 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 3 Always observe the recommended bend radius limit when installing fiber optic cables, subunits and patch cords. Kit contents and accessories S E C Closure kit contents: Clip kit contents: Accessory 1: cable holder Accessory 2: shaving tool page 3 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 4 Closure preparation Open closure Rotate quarter turn left or right Lock cover and locate fiber guidance pen Lock cover 130° Remove the closure cover 90° page 4 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 5 Measure the cable diameter and select the correct set of screws. If the feeder cable is larger than 9 mm, use the longer screws provided in the kit contents. For the cables smaller than or equal to 9 mm use the screws that were installed in closure. page 5 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 6 Make opening in the cable over the complete length of the cable holder (8 cm +/-0,5 cm). Window closure Window closure 8 cm +/- 0,5 cm 8 cm +/- 0,5 cm page 6 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 7 Make second opening, at minimum 1 m distance of the existing opening, until mark on the cable holder (3 cm +/-0,5 cm). Window cut fiber Window cut fiber 3 cm +/- 0,5 cm 3 cm +/- 0,5 cm Position closure on the cable page 7 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 8 Mount the closure select correct screw check Secure at left and right side of the closure page 8 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 9 Feeder cable installation Pull back fibers Protect window to cut fiber CLICK page 9 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 10 Reinstall tray Connect output splitter page 10 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 11 Pull back the fiber and protect the window cut to cut the fiber. Route the feeder fiber to the tray (either left or right). Stripping point Feeder Input splitter Feeder Feeder Feeder Input splitter Feeder page 11 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 12 Connect drops Reinstall tray cover page 12 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 13 Reinstall closure cover CLICK Lock the closure Attention: Make sure that seals are in correct position before closing the cover! check CLICK page 13 / 14 © 2022 CommScope, Inc. All Rights Reserved...
  • Page 14 This product may be covered by one or more U.S. patents or their foreign equivalents. For patents, see www.cs-pat.com. This document is not intended to modify or supplement any specifications or warranties relating to CommScope products or services.
