TC-2164-IP
Rev. A, May 2018
www.commScope.com
Contents
1
2
3
4
5
CZ2416-000 Rev B
Fiber Drop Closure for Fiber Access Terminal
General
Sizing and product kit
information
Installation
conditions
precautions
Closure preparation
1
General
1.1 Installation Instruction description
The installation instruction describes the necessary steps to install the FDC-W8. The installation
instruction illustrates the use on loose tube cables. If other cable types are used, please contact
the local agent for relevant accessories and instructions.
1.2 Product description

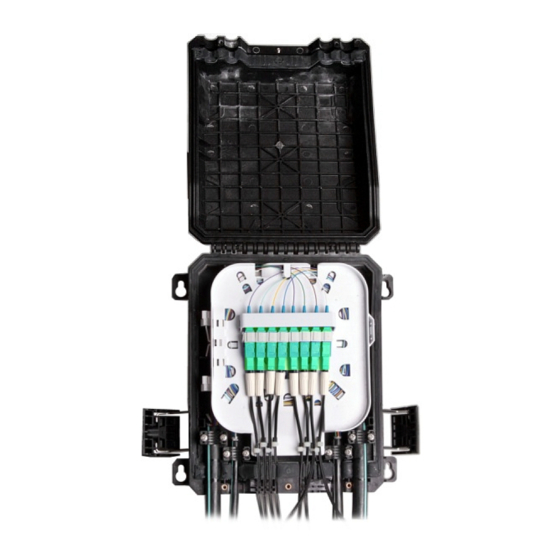

The FDC-W8-FAT is a butt type gel sealed fiber optic splicing and patching closures designed for
fiber access point applications in the telecom outside plant network. FDC-W8 FAT has 4 main
cable ports and 8 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop
through at the same time. The closure accommodates up to 24 fusion splices (or 8 mechanical
splices), two PLC splitters and 8 SC adapters. Sealing is achieved visa built-in gel technology,
resulting in extremely convenient re-entry and re-sealing.
2
2.1
Dimensions
Main Cable diameter range
Drop Cable diameter:
Closure outer dimensions
FDC-W8-FAT
I N S TA L L AT I O N I N S T R U C T I O N
6
7
8
9
8-14 mm
3mm round cable or 2 X3mm fig.8 cable
266 x 237 x 76.5 mm
Advertisement
Table of Contents
Related Manuals for CommScope FDC-W8-FAT
Summary of Contents for CommScope FDC-W8-FAT
- Page 1 1.2 Product description The FDC-W8-FAT is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FDC-W8 FAT has 4 main cable ports and 8 drop cable ports.
- Page 2 Closures preparation 2.2 Kit content 4.1 Open the closures by unscrew the all screws on the closure cover, as shown in left below. Then unlatched two sides, as shown, in right below. 4.2 Open the cover. Then open the tray by press-in the tray latch, as shown.
- Page 3 4.4 Take out upper clamp and the dummy rods. White snap block 4.5 Separate the dummy rod and the blocking ring, as shown Cable Installation 5.1 Make a window cut of 1500mm and cut the strength member up to 50mm from the cable jacket end. 50mm 1500mm Note: If the cable has jacket covered on strength...
- Page 4 5.3 Fix the strength member underneath the metal screw Note: leave 10mm from the clamp end to the tip end as shown in Step 5.4. Tighten the screw to secure the for each cable, as shown below. strength member. Cut the excess off. 5.4 Fit the cable onto the designated cable port and make sure the blocking ring is in the slot, as shown.
- Page 5 6.2 Secure the pass-through cable slack, as shown. 6.5 Route the transparent tubes to the tray entrance, as shown 6.3 Strip the input fiber cable 6.6 Secure the transportation tube at the tray entrance with two tie wraps. Note: Maximum two transportation tubes per tray entrance.
- Page 6 7.3 After each splice is made, the splice should be stored 7.6 Close the closure in the splice holder in the appropriate position, as shown. Do not deform the splice protector during insertion Pole mount installation 8.1 Insert the two pole strips onto the closure, as shown 7.4 Put on the tray lid.
- Page 7 Re-entry and drop cable installation 10.3 For easy FIC insertion, tilt the adapter, as shown. 10.1 Unscrew the center screw and unlatch the top cover, as shown. 10.4 Complete FIC connector assembly. 10.5 Remove the dust cap and insert the FIC. 10.2 Fully open the cover, as shown.
- Page 8 Visit our website or contact your local CommScope ® representative for more information. www.commscope.com FOSC, SMOUV, CommScope and all trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. © 2018 CommScope, Inc. All Rights Reserved This product may be covered by one or more U.S.
