USING THE UTILITY FOR ID-RP3
Programming the repeater
D Automatically adjusting the reference
frequency
1. Connect the reference signal to the target
repeater's [REF IN 10MHz] connector.
2. Confirm the repeater is turned ON.
L If multiple repeaters are connected, confirm all of
them are turned ON.
3. Open the utility.
4. Select "ON" in "Synchronize with REF IN," and
then click " " to write the settings to the repeater.
5. Select "REF Adjust" in the <Tool> menu.

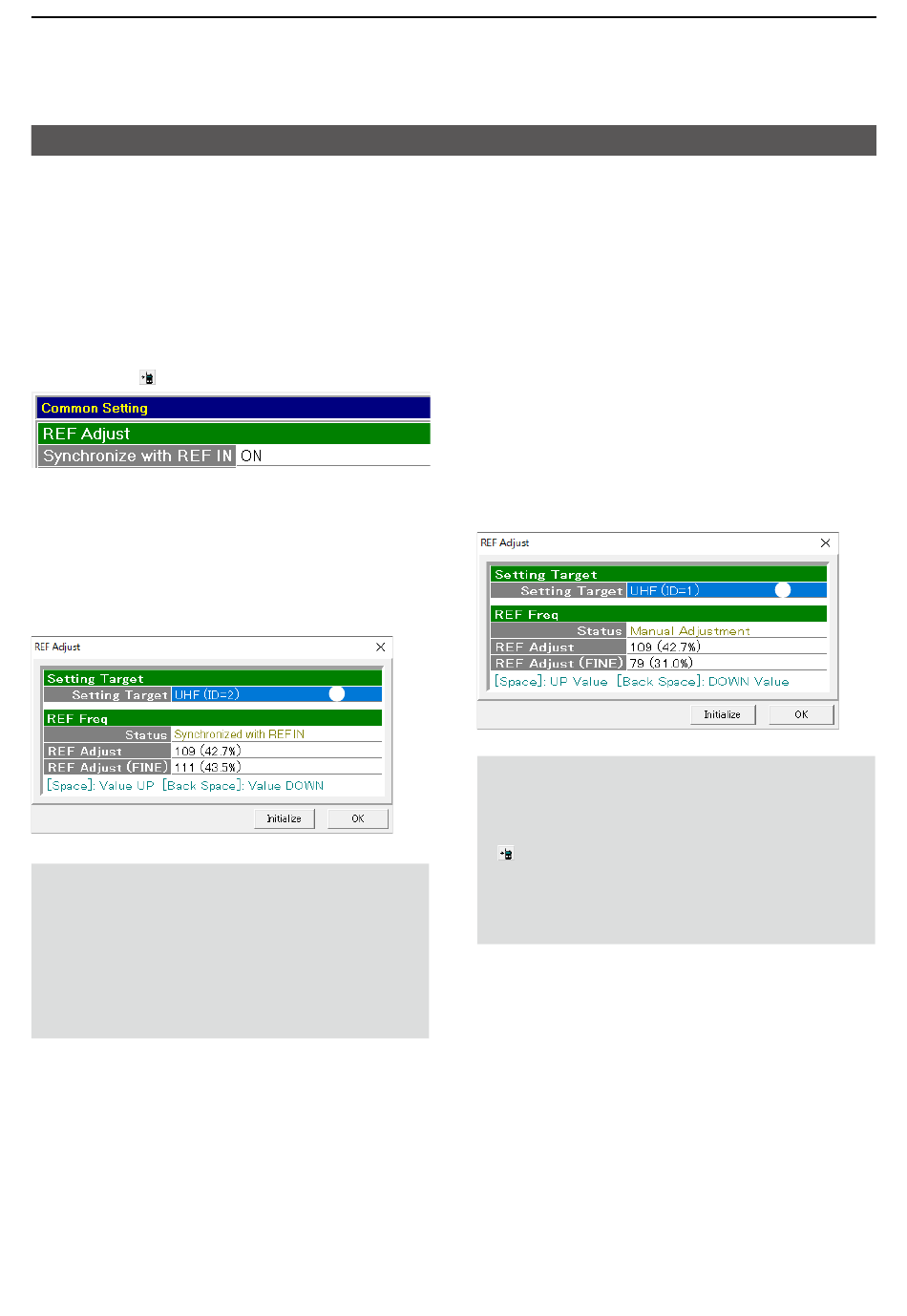

• The "REF Adjust" window is displayed.
6. Select the target repeaterʼs ID in
"Setting Target" (1).
7. Confirm "Synchronized with REF IN" is displayed
in "Status" (2).
8. Click <OK> to close the window.
NOTE:
• It may take some time to synchronize with the
reference frequency immediately after turning
ON the repeater, or immediately after it starts
transmission.
• If "Synchronization Error with REF IN" is displayed
in "Status," check the reference frequency input
level, impedance, and so on.
D Manually adjusting the reference
frequency
1. Confirm the repeater is turned ON.
2. Open the utility.
3. Select "REF Adjust" in the <Tool> menu.
4. Select the target repeaterʼs ID in
5. Enter the value for "REF Adjust" and
6. Click <OK> to close the window.
1
2
NOTE:
• The value entered for "REF Adjust" and "REF
Adjust (FINE)" will be immediately applied to the
repeater without clicking "Write -> Repeater" or
" ."
• Manually adjusting the internal frequency may
cause a frequency deviation since the suitable
reference frequency differs, depending on the
repeater.
6
L If multiple repeaters are connected, confirm all of
them are turned ON.
• The "REF Adjust" window is displayed.
"Setting Target" (1).
• "Manual Adjustment" is displayed in "Status."
"REF Adjust (FINE)."
L Click <Initialize> to reset to default.
L If multiple repeaters are connected, repeat Step 4
and 5 for all repeaters.
1
