USING THE UTILITY FOR ID-RP3

Programming the repeater

D Programming through a USB cable
1. Connecting the PC and repeater
Connect the PC that the utility and the USB driver have been installed in and the repeater, as shown below.
L Turn OFF the repeater when connecting.

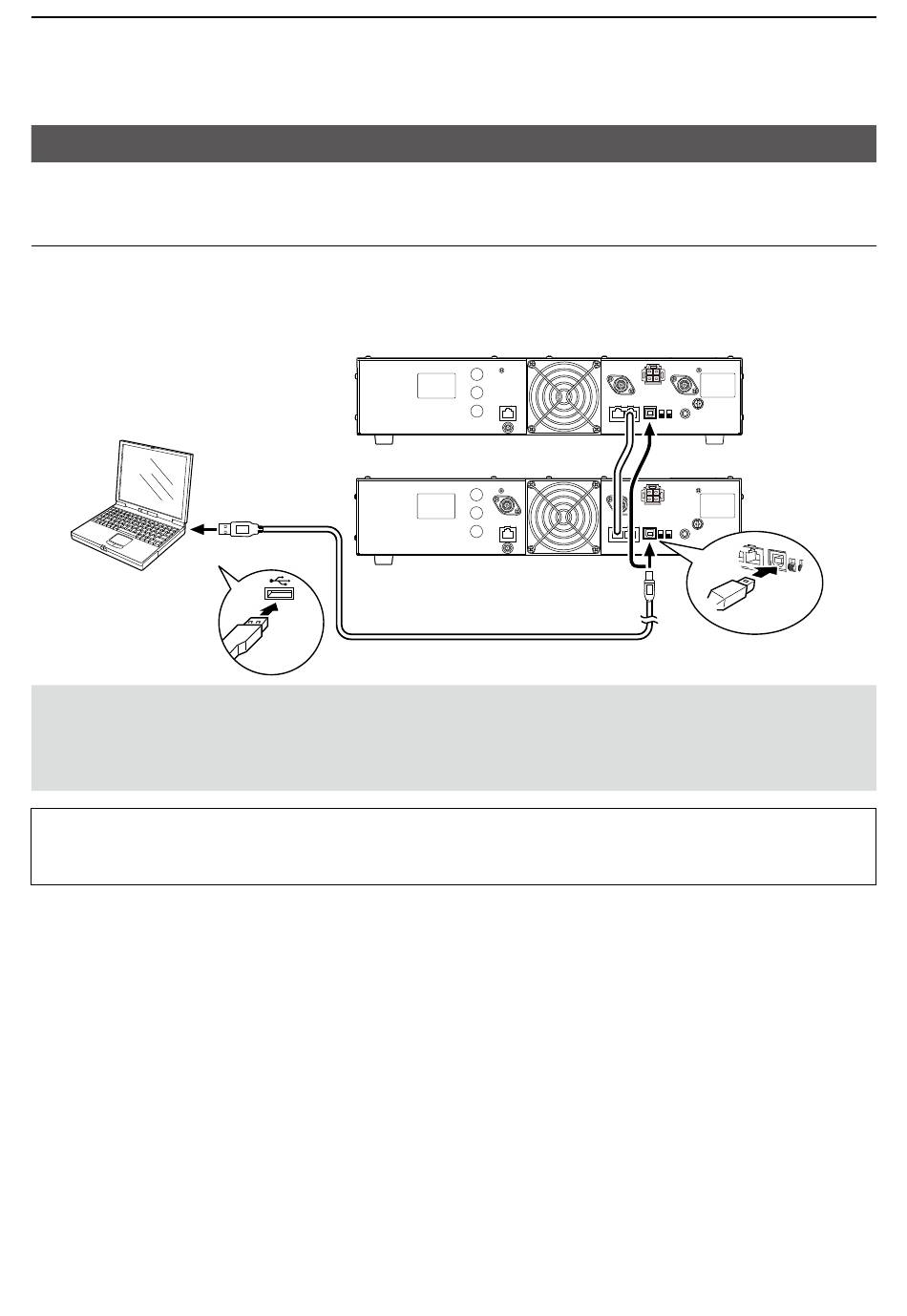

Connection example:
PC
NOTE:
• When using multiple repeaters, assign a different ID to each repeater, as shown above. This enables editing all
repeaters settings by connecting any one repeater to your PC.
• To assign the ID, connect your PC to the [USB] port of the target repeater.
• The edited setting data of each repeater can be saved as a single setting file (icf).
TIP: Using the DD mode (For only the ID-RP1200VD)
Turn OFF the repeater once, set [DV/DD] select switch to [DD], and then restart the repeater.
The operating mode is not changeable while the repeater is ON, and not changeable by using the utility.
ID-RP1200VD (Repeater ID: 3)
ID-RP4010V (Repeater ID: 2)
USB cable (Supplied with the repeater)
3
Type-B
