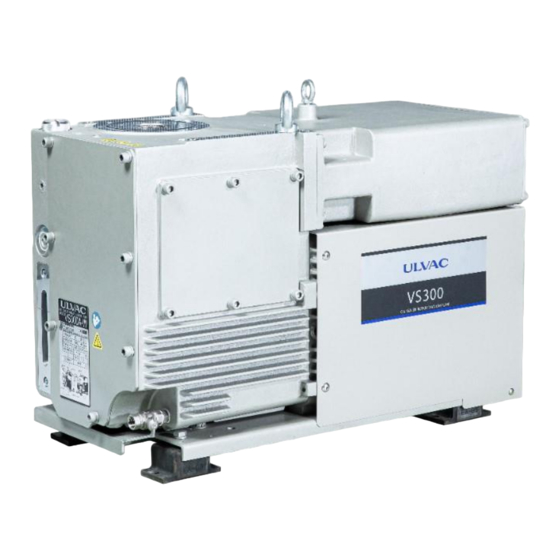

Ulvac VS Series Instruction Manual

Oil rotary vacuum pump
Hide thumbs Also See for VS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
YO１９-0934-DI-00２-0１
Prepared
on:：January、３０, 202４
Oil Rotary Vacuum Pump
INSTRUCTION MANUAL
Model
VS-Series
ⅤＳ３００Ａ-Ｗ
ULVAC KIKO INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ulvac VS Series

Summary of Contents for Ulvac VS Series

  • Page 1 YO１９-0934-DI-00２-0１ Prepared on:：January、３０, 202４ Oil Rotary Vacuum Pump INSTRUCTION MANUAL Model VS-Series ⅤＳ３００Ａ-Ｗ ULVAC KIKO INC.
  • Page 2 We would really appreciate your purchasing VS300A-W (hereinafter referred to as "this pump"), an oil rotary vacuum pump of ULVAC KIKO, Inc. (hereinafter referred to as "we" or "us"). Upon receipt of the machine, please confirm the contents included are the same as you ordered and check the machine for any damage attributed to transportation etc.

  • Page 3: Safety Indications

    Safety Indications Signal words and symbol marks are used in the warning indications contained in this manual and on the product so that the user can understand the matters to be observed. Their meanings are as follows. ▶ Definition of signal words: The terms that signify the warning level for safety are referred to as "Signal Words."...

  • Page 4: Warning Label Types And Display Positions

    Warning Label Types and Display Positions A warning label is attached onto a warning location on the machine. Before operating this pump, be sure to confirm the warning contents. ▶ Warning Label Types and Descriptions Parts with this warning label have a risk of electrical shock. Turn off the primary power supply before starting wiring or maintenance.

  • Page 5: Warning Label Display Position

    ▶ Warning Label display position (In the panel) Figure: Warning label pasting position （VS300A-W） YO１９-093４-DI-00２-01...

  • Page 6: Warranty Terms

    Warranty Terms Although this pump undergoes our stringent internal inspection before shipment, if there are any failures attributable to us such as a manufacturing defect or accident during shipping, contact our nearest sales office or dealer. We will repair or replace it free of charge. ▶...

  • Page 7: Response

    ・ Products for which the warranty period has elapsed. ▶ Response (a) Transactions in Japan: We will send a substitute product, or repair the product returned to us or our nearest ULVAC TECHNO office. If on-site action is required, contact our nearest sales office or dealer separately.

  • Page 8: About This Manual

    English perform work related to this pump, thoroughly provide safety training and handling instructions under your own responsibility. ● This instructions manual is copyrighted by ULVAC KIKO Inc. NOTES To use this product in Quebec, Canada, labels and an instruction manual in French are required.

  • Page 9: Table Of Contents

    Table of Contents Before Use of This Pump ..............i ▶ Definition of signal words: .................... ii Safety Indications ....................ii ▶ Definition of pictograms: ....................ii ▶ Warning Label Types and Descriptions ............... iii Warning Label Types and Display Positions ............iii ▶...
  • Page 10 3. Installation ..................15 3.1 Before Installation ..................15 3.1.1 Responsibility for work from shipping to startup ............. 15 3.1.2 Storage environment requirements ................ 16 3.1.3 Environmental requirements for installation and operation ........16 3.2 Unpacking ....................17 3.2.1 Precautions for unpacking ..................17 3.2.2 Confirmation after unpacking ..................
  • Page 11 6. Maintenance and Inspection ............53 6.1 Daily Inspection ................... 53 6.2 Regular Inspection ..................54 6.2.1 Inspection and replacement of oil ................54 6.2.2 Oil leakage check ....................56 6.2.3 Inspection of abnormal noise and vibration ............56 6.2.4 Inspection and replacement of oil mist separator ........... 57 6.2.5 Replacement of exhaust valve plate ...............

  • Page 12: For Safety Use

    1. For Safety Use This chapter describes how to reduce risks as well as which dangerous behaviors must be avoided for each work item. 1.1 Handling of this pump If you need an overhaul or repair or if you have a problem, contact our nearest service center. This manual assumes that this pump's interlock system or control system has been integrated into the host equipment.

  • Page 13: Acceptance/Transfer/Storage

    ● Before exporting this pump from Japan, it must undergo screening according to the Foreign Exchange and Foreign Trade Law as well as government ordinances, ministerial ordinances, notices, and other orders based on said law. Contact our nearest sales office or dealer. 【 List of sales offices 】 https://www.ulvac.co.jp/en/support_info/sales_office/ 1.2 Acceptance/Transfer/Storage 1.2.1 Acceptance...

  • Page 14: Transfer

    After unpacking, make sure that there are no missing items or damage NOTES After unpacking, make sure that there are no missing, damaged, or abnormal items. If there are any problems, do not perform installation work. * For accessories, refer to "Table 2: List of standard accessories" on page 18. 1.2.2 Transfer Do not use the casters as a transportation device or a means of...

  • Page 15: Removal

    Do not apply shock to this pump or put in at an incline, position it NOTES sideways, or stand it up or reverse it. Do not apply shock to this pump or put in at an incline, position it sideways, or stand it up or reverse it.

  • Page 16: This Pump Intrinsic Hazards And Safety Measures

    Installation of an overload protection device is made mandatory by the Technical Standards for Electrical Installations. For selection of an overload protector, refer to "Table 7: List of Wiring and Ratings of Recommended Ground-Fault Interrupters" on page 37. It is recommended to install a protective device (such as a ground- fault interrupter) other than the overload protector.

  • Page 17: Electrical Shock

    1.6.3 Electrical shock Electrical connections should be made after disconnecting the open-circuit device. Before installing electric wiring, turn off the open-circuit device. Never leave the voltage applied during the work. - There is the risk of electric shock. Before inspection/relocation, turn off the open-circuit device and lock (LOTO).

  • Page 18: Ruptures

    Install the protection cover to the piping. The temperature of the inlet/exhaust piping is 70°C or more. After connecting the inlet/exhaust port piping, install the protection cover. 1.6.5 Ruptures Do not increase the pressure on the pump's exhaust side to 0.03 MPaG or higher.
  • Page 19 Lubricating oil ULVOIL R-72 (Standard oil) The SDS describes the chemical substances that may be used or touched to operate this pump. To understand the characteristics of hazards, carefully read the SDS. Obtain the latest version of the SDS from our nearest sales office or dealer. The SDS provides reference information to ensure safe handling of dangerous or hazardous chemical substances.

  • Page 20: Product Overview

    ■ Oil leak seldom structure outside the pump. An oil leak seldom structure outside the pump with two stages of oil seal and shield bearing. ■ ULVAC's original IE3 high-efficiency multi-voltage motor installed A wide range of voltages are supported with a single motor.

  • Page 21: Application Purpose

    2.1 Application Purpose ● Optical film deposition system ● Thin film deposition system for reflector ● Evaporation system for decorative moldings ● Evaporation Roll coater systems ● In-line sputtering systems ● Vacuum Heat Treatment / Bake Furnace systems ● Vacuum Freeze drying systems ●...

  • Page 22: Performance Curve

    2.3 Performance Curve 2.3.1 Ultimate pressure "Ultimate pressure" described in the catalog and the body text means "the limit pressure that can be obtained by the pump without introducing gas from the inlet port of the pump (no-load operation)." We use the specified vacuum pump oil and, after completely cutting off the equipment, connect a Pirani gauge only to the inlet port of the pump for measurement.
  • Page 23 In addition, when the temperature of the pump installation location is low (such as in a cold area and an outdoor area in winter), the temperature of the pump oil is low in temperature and high in viscosity, requiring a large amount of power especially at startup.

  • Page 24: Name And Function Of Parts

    2.4 Name and Function of Parts Figure 3: Name of parts Table 1: Name of Parts Name Function Reference Connect the container and piping for evacuation. Inlet port 3.6.1 (DN63 ISO-F) Used when hoisting this unit using a crane. Eyebolt 3.3.1 Be sure to use all three.

  • Page 25: System Configuration

    2.5 System Configuration Perform the direct-connect starting of this pump. For the power capacity required for the direct-connect starting of 200 VAC / 400 VAC, refer to "Table 7: List of Wiring and Ratings of Recommended Ground-Fault Interrupters" on page 37. ●...

  • Page 26: Installation

    Packing ・ULVAC Transport ・ULVAC entrust this task to a specified carrier. Cargo reception and unpacking ・Customer Inspection ・Customer Transfer to the installation location ・Customer...

  • Page 27: Storage Environment Requirements

    3.1.2 Storage environment requirements Store into following conditions when this pump will be stored at warehouse or clean storage room prior to installation without use for a long period of time. -15 to 60°C (No freezing) Ambient temperature 95 %RH or less (No condensation) Ambient humidity 1,000m or less of altitude above sea level Altitude...

  • Page 28: Unpacking

    3.2 Unpacking This pump is protected by stretch film, cushioning materials, or by other means, packed in a wooden frame or cardboard, and shipped. In case the packaging is by crate, ask a specialist to dismantle. Provide following precautions and instructions to the dismantling contractor. 3.2.1 Precautions for unpacking Never get under this pump.

  • Page 29: Transfer

    Table 2: List of standard accessories Product name Specifications Q’ty Remarks For the usage, refer to the A fill of oil ULVOIL R-72 specification table. Japanese version, English Quick manual － version 3.3 Transfer Do not use the casters as a transportation device or a means of equipment support.

  • Page 30: How To Hoist Using Crane

    3.3.1 How to hoist using crane Never get under this pump This pump may fall or topple if a forcible operation is performed or if the equipment is not sufficiently maintained. Never get under this pump. Use a crane or other cargo-handling equipment Give instructions to lift and transfer this pump using a crane or other cargo-handling equipment securely with the three eyebolts on the top of this pump when unpacking or lifting it.

  • Page 31: How To Transport Using Pallet Truck

    3.3.2 How to transport using pallet truck Do not transport this pump with the adjusters raised When transporting this pump via pallet truck, lower the four adjusters. If you carry this pump without the adjusters attached to the pallet, the machine may topple, causing injury or damage.

  • Page 32: Installation

    3.4 Installation Arrange this unit in consideration of work, such as installation, removal, inspection, and cleaning, and release of exhaust gas to the outside. Install this unit in a horizontal position and fix it using vibration-proof rubbers to prevent looseness. Before installation or removal work, disconnect this unit from all energy sources.

  • Page 33: Leveling (For Optional Caster Models)

    3.4.1 Leveling (For Optional Caster Models) Install this pump in a horizontal position NOTES After moving to the installation location, adjust the four adjusters within the range of 1 to 10 mm and install this pump horizontally on G.L. If you operate it with casters, vibration is transmitted to the floor.
  • Page 34 ULVAC. Inc. Components Div. Date: February 2022 Table 3: Earthquake resistance assessments Unit VS300 Whole width of the surface of projection that falls easily Short distance from the fulcrum on the surface of projection that falls easily to the position of the center of gravity...

  • Page 35: Oil Filling

    3.5 Oil Filling Use the oil specified by us. In reference to "Figure 9: Oil filler port and oil level gauge position" and "Figure 10: Specified oil level" on page 25, add oil so that the oil level is at the "MAX." level line of the oil level gauge. The pump can operate when the oil level is between the level lines of the oil level gauge during operation.
  • Page 36 Use the unit with a specified amount of oil. Be sure to use the unit with a specified amount of oil. If it exceeds the upper limit, oil may blow out from the exhaust port when entering the atmosphere. In addition, if the oil level becomes lower than the lower limit during the operation, the bearings, shaft seals, etc.

  • Page 37: Piping And Wiring

    3.6 Piping and wiring Shut off hazardous energy sources. Before working on piping and wiring, make sure that all hazardous energy sources are shut off referring to "1. For Safe Use" before starting work. Install the protection cover to the piping The temperature of the inlet/exhaust piping is 70°C or more.
  • Page 38 ■Applicable Piping ●Piping according to the safety rules and laws and regulations in the country of destination. ●Materials that does not rust inside. ●Heatproof temperature of 100°C or more. Inlet piping cover Exhaust piping cover Figure 11: Sample installation of protection cover YO１９-093４-DI-00２-00...

  • Page 39: Inlet/Exhaust Port Piping

    3.6.1 Inlet/Exhaust port piping Be sure to use conductive material for the exhaust port piping and ground it. Be sure to use conductive material (which conducts electricity) and ground it when installing the piping of the exhaust port. If non-conductive material is used, static electricity is generated when the exhaust gas passes through, which may cause explosion or fire.

  • Page 40: Oil Mist Separator

    ● When connecting the pipes, take care not to drop foreign matter (e.g. bolts) into the inlet/exhaust port of this pump. If foreign matters drop, it is necessary to disassemble this pump and remove them. Contact your nearest service center ●...

  • Page 41: Cooling Water Piping

    3.6.3 Cooling water piping NOTES Use appropriate joints. The cooling water port of this pump is G1/2. Connect appropriate joints to the cooling water piping. Do not confuse between inlet cooling water port and the outlet cooling water port. NOTES Items to comply with in the use of cooling water piping.
  • Page 42 ● Install a flowmeter (e.g. flow sight) at the cooling water source. Install a flow meter (e.g. flow sight), which allows you to visually recognize the flow, at the cooling water supply source, such as a device, to check whether or not cooling water flows. ●...

  • Page 43: Gas Ballast Gas

    During operation, cooling water cools down oil circulating in the pump using a heat exchanger. When the pump stops, oil stops circulating at the same time and the main unit of the pump and the oil tank are naturally-cooled. This cooling takes time. 3.6.4 Gas ballast gas This unit comes equipped with the gas ballast function as standard.

  • Page 44: Pump's Ultimate Pressure And Operating Noise

    3.6.5 Pump's ultimate pressure and operating noise The pump's ultimate pressure and operating noise depend on the environment and power supply frequency used at your site. During no-load pump operation in your environment, if the ultimate pressure does not drop below 15Pa on the pressure gauge directly over the pump or drops below 15 Pa but there is a high-pitched loud crackling noise called a punch noise, make an adjustment using the slow leak valve inside the panel.

  • Page 45: Purge Gas

    3.6.6 Purge gas This pump has a purge gas port. By introducing purge gas, most of air built up in the oil tank can be expelled. Remove the seal plug and introduce nitrogen or compressed air (CDA with a dew point of -60°C) as a purge gas. When introducing compressed air, set the supply pressure to 0.03MPaG NOTES or less.

  • Page 46: Electric Wiring

    3.7 Electric Wiring 3.7.1 Electric wiring Electric wiring must be carried out by qualified personnel. Electric wiring must be carried out by qualified personnel. Wiring should be installed after disconnecting the open-circuit device. Before installing wiring, turn off the open-circuit device. Never leave the voltage applied during the work.
  • Page 47 Be sure to install an overload protector. Be sure to install an overload protector suitable for the capacity. If no overload protector is installed or it does not match the capacity, it causes damage to the motor or fire. In the wiring work, provide safety circuits. In the wiring work, be sure to provide safety circuits, such as molded-case circuit-breakers, electromagnetic contactors, and thermal overcurrent contactors.
  • Page 48 pass through the wire outlet. ● This unit uses 200-V and 400-V class shared motors. The unit can be operated without changing the 200-V and 400-V class motors by changing the wiring connections inside the motor terminal box. ● The ground terminal on the motor side is the screw indicated by the ground mark in the terminal box.
  • Page 49 Figure 15: Connection wiring diagram in terminal box Terminal block screw (6 places) Ground terminal screw Name Terminal screw / Hole size Tightening torque Ground terminal 4.0-5.0N ･ m M6 cross head screw screw Terminal block screw M5 nut 2.0-2.5N ･ m Wire outlet φ25 ―...

  • Page 50: Wire Connection Of 24 Vdc Power Connections

    3.7.2 Wire connection of 24 VDC power connections A thermostat is provided as standard on this unit to protect the pump when the pump overheats abnormally and exceeds the set temperature (80℃). Note that wiring needs to be installed to the 24-VDC power supply connection so that the power supply is shut off when the thermostat is activated.

  • Page 51: Operation

    4. Operation 4.1 Precautions on Operation Do not use any gas other than inability gas The pumping of toxic gas, flammable gas, combustible gas, corrosive gas, explosive gas and particle gas, may damage this pump and hazardous. Furthermore, the chemical reaction of remaining gases and/or generated particle and gases may cause the explosion, not only during operation but also after stop operation.
  • Page 52 Close the gas ballast valve before starting operation. Be sure to close the gas ballast valve before starting operation. In high pressure regions, oil may blow out from the gas ballast valve. Do not touch any place other than the valve during gas ballast operation.
  • Page 53 When exhausting a large amount of water etc., change oil frequently. When exhausting a gas containing a large amount of moisture etc., change oil frequently. When operating with a large amount of water mixed in oil, the ultimate pressure first increases and then the oil lubricity deteriorates. This may lead to failures such as oil leaks through oil seals, internal corrosion, breakage of exhaust plate, and seizure inside the pump.
  • Page 54 Take care not to allow foreign matter to mix. NOTES If the pump sucks solids, such as dust and fine powder, or water, not only the ultimate pressure gets worse but also it may cause a failure. The inside of the pump is designed to rotate with a slight clearance and, if foreign matter enters the pump, it may become unable to rotate.

  • Page 55: Preparation For Operation

    4.2 Preparation for Operation 4.2.1 Pre-operation check Before operating this pump, reconfirm the following. 1． Make sure that the cooling water piping and electric wiring connection are completed. 2． Check that the exhaust port is not blocked by a protective cap or storage flange. 3．...

  • Page 56: How To Startup/Stop

    4.3 How to Startup/Stop 4.3.1 Startup To start this pump, follow the procedure below. 1． Close the vacuum valve and leak valve. 2． Turn on the power to the motor. 3． Check whether the pressure gauge between the vacuum valve and the pump indicates a pressure drop to around the ultimate pressure.

  • Page 57: Drain Of This Pump

    4.3.3 Drain of this pump Perform drain work when there is a risk of freezing or when this pump is not used for a long period of time. NOTES Drain water in this pump. Drain water in this pump. Accumulated water may cause a failure, such as rusting inside this pump and damage to the parts due to freezing.
  • Page 58 How to operating of gas ballast 1. Close the vacuum valve, leak valve, and gas ballast valve, and start operation. 2. After the pressure drops, introduce air or nitrogen from the gas ballast valve. 3. Continue operation for approx. 20 minutes to sufficiently increase the temperature of the machine. If a lot of moisture enters the pump at a time and cannot be processed, the moisture is built up at the bottom of the oil tank.

  • Page 59: Removal

    5. Removal Do not suck toxic gases into this pump. If toxic gases are sucked into this pump, not only this pump but also the oil becomes toxic. Take care during maintenance. Before installation or removal work, disconnect this pump from all energy sources.

  • Page 60: Removal Of Piping

    5.1 Removal of Piping 5.1.1 Cooling water piping Wait for the temperature of this pump to decrease. Immediately after operation is stopped, this pump is at a high temperature. Wait for a while until the temperature of this pump decreases and then remove and check the parts.

  • Page 61: Inlet/Exhaust Port Piping

    5.1.2 Inlet/exhaust port piping After the temperature of this pump decreases, remove the piping for the inlet/exhaust port. The unit remains at a high temperature for a while after operation stops. Make sure that the temperature of the main unit has decreased and then remove the piping for the inlet/exhaust port.

  • Page 62: Maintenance And Inspection

    6. Maintenance and Inspection Daily and regular inspection and maintenance work are required to maintain the original performance of this pump and ensure safe use. Before inspection/relocation, turn off the open-circuit device and lock (LOTO). Before inspection/relocation, be sure to turn off the open-circuit device and lock (LOTO).

  • Page 63: Regular Inspection

    6.2 Regular Inspection The check items need to be changed depending on the use conditions of the pump, but the following points need to be checked regularly. It is effective in avoiding failures to extend the life of the pump. 6.2.1 Inspection and replacement of oil The oil is not only contaminated by suction gas but also gradually deteriorated by a temperature rise during the pump operation.
  • Page 64 NOTES Use the specified oil. The use of any oil other than the specified ones affects the performance and life of this unit, which is not covered by the warranty. Suction of chemicals such as acid NOTES If chemicals such as acid is drawn in, it may become unable to operate. If chemicals such as acid is drawn in, it may rust and become inoperable during the period of overnight stop.

  • Page 65: Oil Leakage Check

    Risk 0 Can operate normally. The ultimate pressure may be slightly Risk 1 lower than the specified value? Oil change interval Risk 2 There is a risk of trouble! Risk 3 There is a risk of serious trouble! Risk 4 Figure 20: Oil color sample 6.2.2 Oil leakage check In the event of oil leakage from the shaft-seal part or the pump body, it need to be repaired.

  • Page 66: Inspection And Replacement Of Oil Mist Separator

    6.2.4 Inspection and replacement of oil mist separator This unit comes equipped with an oil mist separator as standard. The oil mist separator separates oil from the gas discharged from the pump. Severe clogging of the separator can prevent exhaust gas from passing through the filter, increasing the pressure inside the pump and causing the pump and oil mist separator to burst.
  • Page 67 Replacement of oil mist separator 1. Stop the pump. 2. Remove the red-circled cover of the oil mist separators. 3. Remove the two inner bolts. 4. Remove the oil mist separator support. After the support is removed, the filter can be removed. Take care not to drop or make an impact.

  • Page 68: Replacement Of Exhaust Valve Plate

    6.2.5 Replacement of exhaust valve plate Replace the exhaust valve plate every 8,000 hours. It may break early due to suction of foreign matter and water. ■ Replacement of Exhaust Valve Plate Stop the pump. 2. Remove the maintenance cover on the side of the pump. 3.
  • Page 69 Replace the exhaust valve plate and fix the exhaust valve guide. At this time, place all the exhaust valve plates to close the exhaust port first and then install the bolts. This prevents bolts and spring washers from dropping into the cylinder through the exhaust port. If any parts drop into the cylinder, an overhaul is required.

  • Page 70: Cleaning Of Oil Tank

    6.2.6 Cleaning of oil tank The sucked foreign matter, products, sludge of pump oil, etc. are accumulated inside the oil tank. If the amount of deposit increases, it cannot be removed only by changing oil, which may cause damage to the pump as the contaminated/degraded pump oil is used for lubrication.

  • Page 71: Inspection Of Automatic Drain Valve

    6.2.7 Inspection of automatic drain valve If the ultimate pressure does not drop from several hundred Pa or so, it can be a fault in the automatic drain valve. Monitor the ultimate pressure as daily inspection and, if the ultimate pressure does not decrease, make an inspection.
  • Page 72 5. Carefully wipe off any deposits. Take special care when wiping off the rubber seal part of the sealing section. 6. After wiping it off, install the automatic drain valve. Install in the direction that the float section moves upward as shown in the photo. At this time, take care not to scratch the O-ring. 7.

  • Page 73: Replacement Of Oil Filter

    6.2.8 Replacement of oil filter This pump comes equipped with an oil filter as standard. The oil filter removes impurities contained in oil that circulates in the pump. If the amount of oil circulation is reduced due to a clogged oil filter, it may cause failures such as rapid wear or seizing up of the parts.

  • Page 74: Maintenance And Cleaning Of Heat Exchanger

    5. Add the specified amount of oil into the pump from the oil filler port. Operate the pump and check whether or not the oil level is within the range of the oil gauge. 6. Install the other parts in reverse order. 6.2.9 Maintenance and cleaning of heat exchanger This unit uses cooling water to cool down oil circulating in the pump in a heat exchanger.

  • Page 75: Inspection After Long-Term Storage

    If this pump is stored for a long period of time without being operated (at least six months), trouble may occur when the pump is operated due to rusting. If the pump has not been used for a long period of time, request an inspection from your local ULVAC service center before using the pump.

  • Page 76: Troubleshooting

    7. Troubleshooting 7.1 Trouble with Basic Operation Table 10: Trouble with Basic Operation Problem Cause Measures Reference The motor is not properly wired. Check wiring connection. 3.7.1 Adjust the safety circuits to the motor The safety circuits are not set correctly. 3.7.1 specifications.
  • Page 77 Problem Cause Measures Reference The motor rotates in the opposite Connect wires again so that it rotates in the 3.7.1 direction. correct direction. 4.2.1 The pump continuously operates at high The noise becomes louder when operating at suction pressures. high suction pressure. In such a case, make an pressure adjustment.
  • Page 78 Problem Cause Measures Reference The method of measuring pressure is Measure the pressure in the correct way. 2.3.1 incorrect. The vacuum gauge is not appropriate. Measure using a vacuum gauge that matches the pressure range to be measured 2.3.1 and is calibrated correctly. The connection pipe for the inlet port is Connect with a pipe larger than the inlet port thin or the piping distance is long.
  • Page 79 Problem Cause Measures Reference The specified amount of oil is not contained. The oil level is outside the range of the Control the oil level. oil level gauge. Add the specified amount of oil. (A small amount of oil reduces the cooling effect of the pump.) Oil is deteriorated.

  • Page 80: Specifications

    8. Specifications 8.1 Performance Specifications Model VS300A-W 50Hz 250(4166) Designed / hr pumping speed (L/min) 60Hz 300(5000) GP Close ≦15 １ Ultimate pressure * GP Open ≦200 50Hz Power consumption ｋW (At ultimate pressure) 60Hz Totally enclosed fan cooled Model 3 phase induction motor Capacity ｋW(Poles）...
  • Page 81 Model VS300A-W Usage environment Overvoltage category II Pollution Degree 2 ・Inlet port VG flange (VG80) ・Inlet port NW flange (NW80） ・Exhaust port NW flange (NW50) ・Fitting nipple for exhaust port hose Options and accessories *7 (G2 -> Nominal diameter: φ50) ・Pressure gauge for monitoring pump internal pressure monitoring ・Casters・Adjuster feet...

  • Page 82: External Dimensions

    8.2 External Dimensions VS300A-W Work space 500 or more 500 or more Work space Figure 21: External dimensions of VS300A-W YO１９-093４-DI-00２-00...

  • Page 83: Appendix

    Appendix Major replacement parts The list of parts to be replaced through an overhaul is shown below: The replacement period depends on the part. In addition, the recommended replacement cycle shown in the table below is given for reference only. It depends on your usage and environment. Figure 22: Overall bird's eye view YO１９-0934-DI-001-00...
  • Page 84 Figure 23: OMS Box assembly drawing Figure 24: Oil tank assembly drawing YO１９-093４-DI-001-00...
  • Page 85 Figure 25: Pump unit assembly drawing Figure 26: Motor unit assembly drawing YO１９-0934-DI-001-00...
  • Page 86 Figure 27: Base unit assembly drawing YO１９-093４-DI-001-00...
  • Page 87 Table 11: Parts list Number of Code Item name Material Dimensions configurations 1st cylinder 1st pump Rotor 1st vane Rear side-cover Rear cover Seal sleeve 29 Exhaust valve plate Exhaust valve guide Exhaust baffle Gas ballast valve Gas ballast spring Oil tank Oil tank cover 1 Oil tank cover 2...
  • Page 88 Number of Code Item name Material Dimensions configurations Bush Hexagon nipple R1/2 Socket 3/8B Check valve Check valve Insert O.D6、I.D4 Insert O.D8、I.D6 Male connector R3/8 φ12 Male connector R1/4 φ8 Male connector R1/4 φ6 Male elbow R1/4 φ8 Reducing union elbow φ8-φ6 Union tee φ8...
  • Page 89 Number of Code Item name Material Dimensions configurations Vibration-proof rubbers φ30×18 Grease YO１９-0934-DI-001-00...
  • Page 90 Table 12: Replacement parts list for overhaul Number of Code Item name Material Dimensions configurations O-ring: 1st cylinder O-ring: S110 O-ring: S150 O-ring: Oil seals Rear side-cover Bearing 6307 C3 Wave washer O.D78、I.D61 Seal sleeve 29 Rear cover O-ring: O-ring: O-ring: Gas ballast gas tube O.D8、I.D6...
  • Page 91 Table 13: 8000-hour replacement parts list Number of Code Item name Material Dimensions configurations Exhaust valve plate 1st cylinder Exhaust valve guide Table 14: Replacement parts due to scratches or clogging Number of Code Item name Material Dimensions configurations Vibration-proof rubbers φ30×18 Hexagon socket head bolt M8x15...
  • Page 92 Form: A00315268-01-00 YO１９-093４-DI-001-00...
  • Page 93 YO１９-0934-DI-001-00...

This manual is also suitable for:
