Nexperia UM90029
NEVB-MCTRL-100-01-3INV-001-01 motor driver evaluation kit
Over Voltage LED
8-throw bus switch/multiplexer for fault LEDs

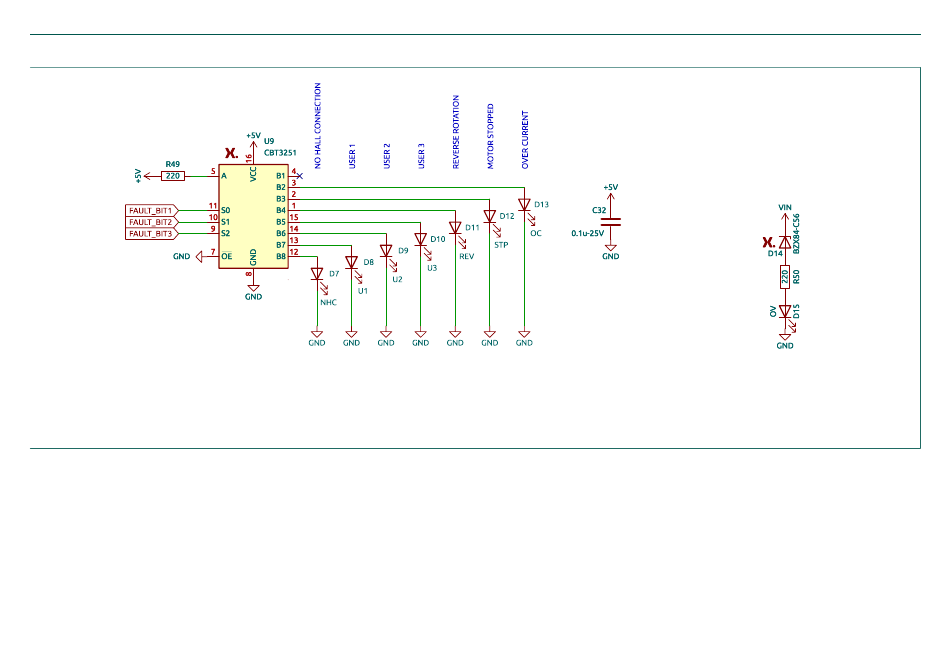

Fig. 29. Motor controller board schematic sheet 5
