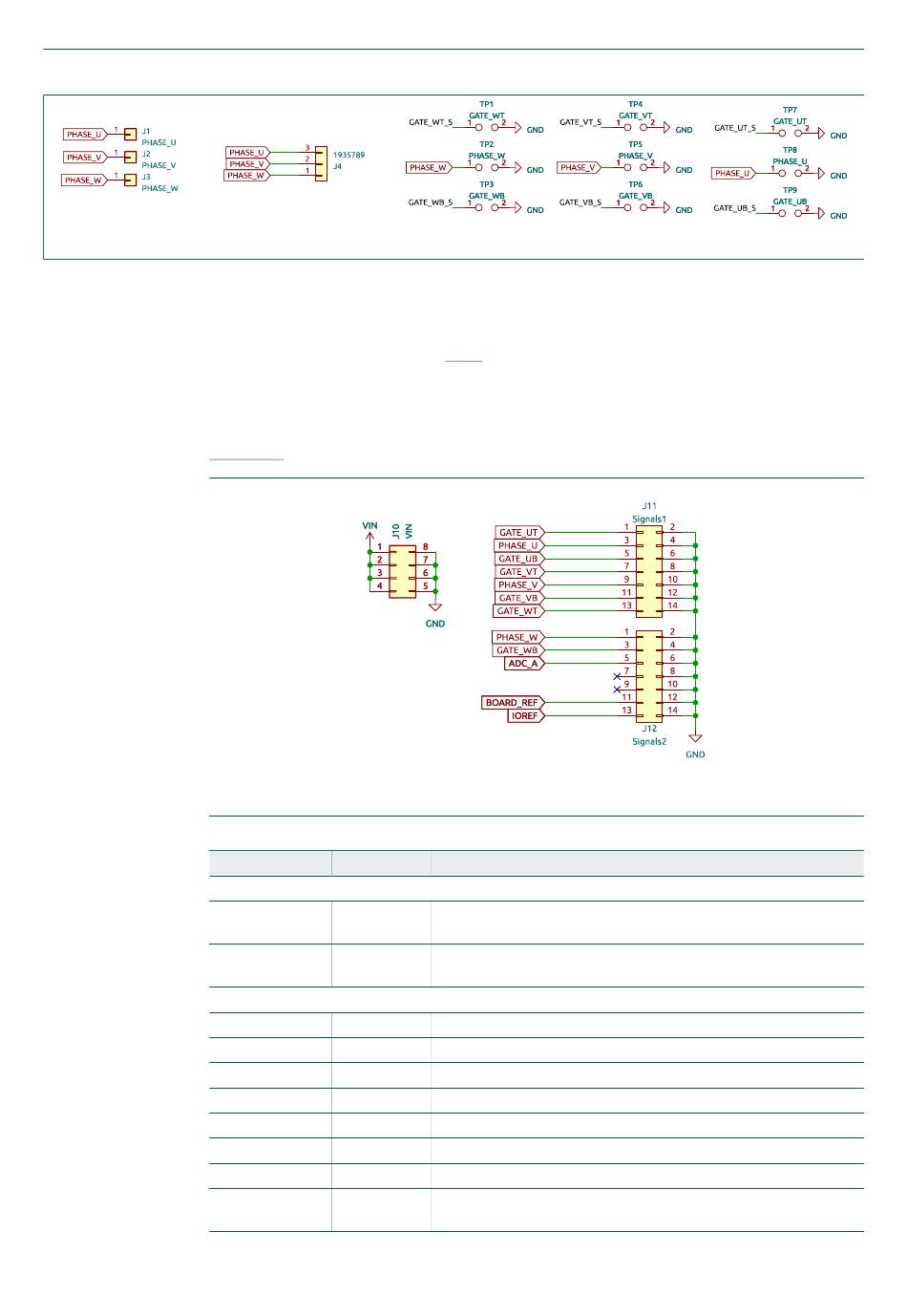

Fig. 7. Motor phase terminal block

3.3. Interface Connector

The interface connector (J11 and J12) is the signal interface between the 3-phase inverter
board and the controller board, see
connections are used as IOs or monitoring. In addition, the 3-phase inverter board current
consumption and IO reference voltage are also connected.
There is a main supply voltage interface connector (J10) for VIN that is used to power the motor
controller board. This will go to the Buck converter stage on the motor controller board described in
Section
Fig. 8.

Table 3. J10 / J11 / J12 VIN interface connectors

Net name
J10
VIN
GND
J11
GATE_UT
PHASE_U
GATE_UB
GATE_VT
PHASE_V
GATE_VB
GATE_WT
GND
UM90029
Submit document feedback
User manual
NEVB-MCTRL-100-01-3INV-001-01 motor driver evaluation kit
4.1.
Interface connector
Pin number Description
1 - 4 Main input supply voltage (VIN) that supplies the motor
controller board
5 - 8 Return path of the main input supply voltage (GND) from the
motor controller board
1 High side gate voltage for phase U
3 Switch node or motor phase voltage of phase U
5 Low side gate voltage for phase U
7 High side gate voltage for phase V
9 Switch node or motor phase voltage of phase V
11 Low side gate voltage for phase V
13 High side gate voltage for phase W
2, 4, 6, 8, 10, GND or return path
12, 14
