User inputs

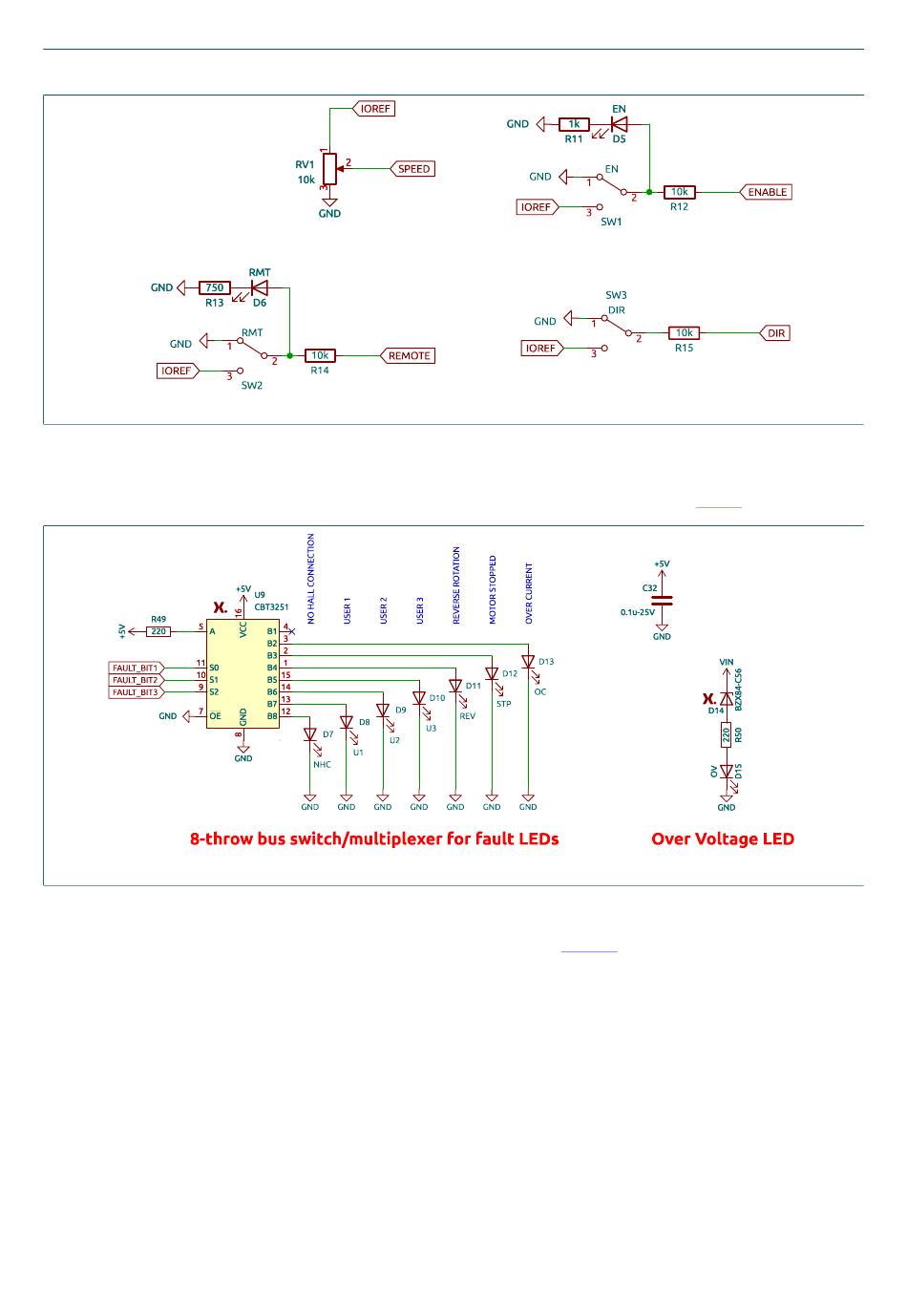

Fig. 19. Motor control board user inputs
4.8. MUX, fault and over-voltage LEDs
The motor controller board includes LEDs to indicate fault conditions, see
Fig. 20. MUX, fault LEDs, and over-voltage LEDs
Fault bits 1, 2, and 3 are inputs to a Nexperia multiplexer IC (MUX), CBT3251, The multiplexer
switches the +5 V supply to activate LEDs, D7 to D13, according to the input bits. These bits
control the following fault indicator LEDs as shown in
UM90029
Submit document feedback
User manual
NEVB-MCTRL-100-01-3INV-001-01 motor driver evaluation kit
All information provided in this document is subject to legal disclaimers.
Rev. 1.0 — 15 April 2024
Fig.
20.
Table
12:
Nexperia B.V. 2024. All rights reserved
©
UM90029
24 / 64
