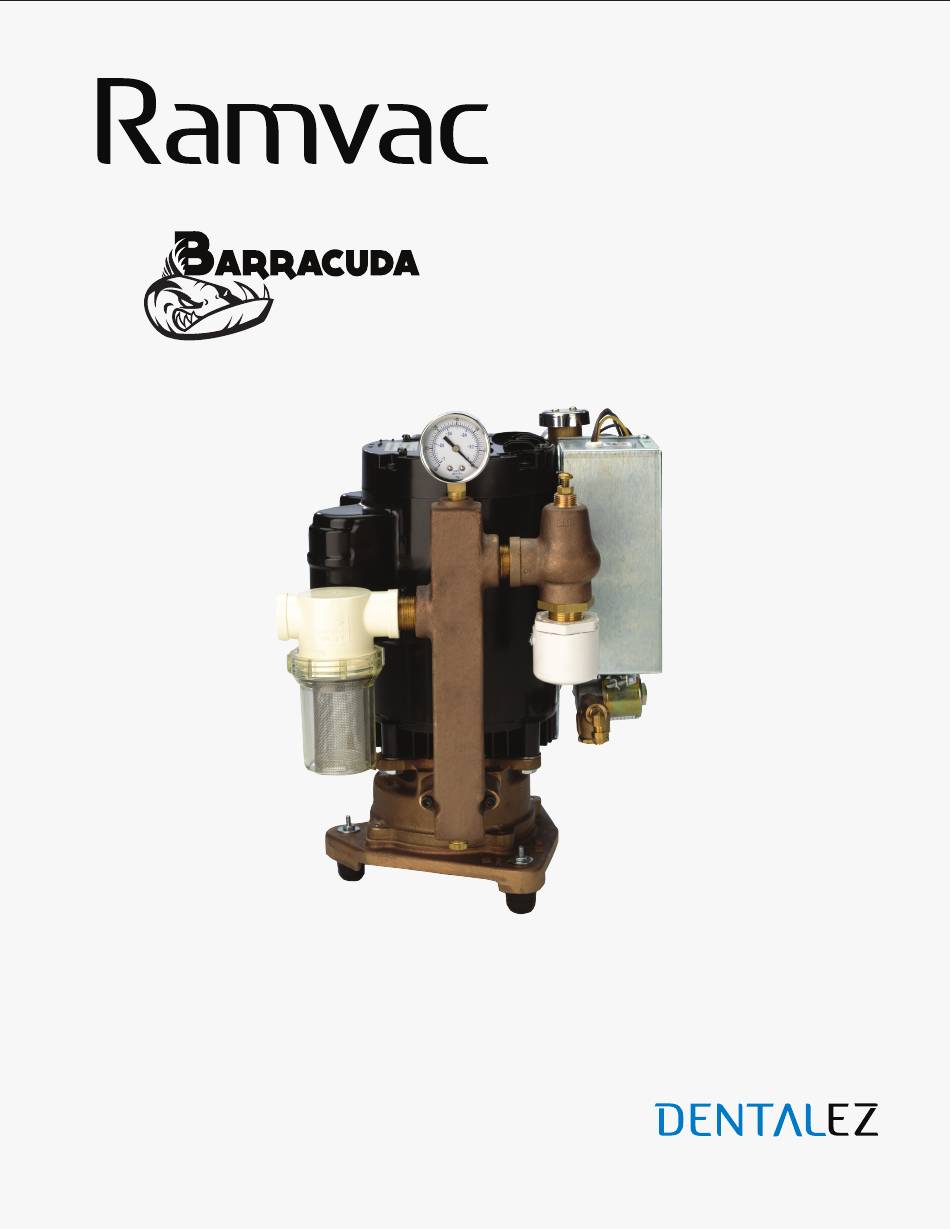

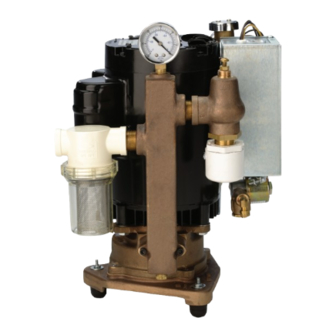

- Page 1 USER MANUAL MODELS: CV-101FS & CV101FSW S I NGLE W ET VAC U U M CV-102FS & CV-102FSW...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION I - INTRODUCTION Product Overview ............................1 Product Features............................2 Specifications............................3 Recommended Environmental Conditions ....................3 Classifications ............................4 Explanation of Symbols & Signs ....................... 4 Safety Precautions ............................ 5 SECTION II - PREINSTALLATION Site Requirements ............................ 6 Suggested Pump Sites .......................... - Page 3 TABLE OF CONTENTS WET VACUUM USER MANUAL SECTION VII - PARTS Replacement Parts List ........................... 37 EMC INFORMATION ........................43 LIMITED WARRANTY ........................47 PRIVACY POLICY .......................... . 49 TERMS OF USE ..........................54 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 4: Section I - Introduction
This manual contains site preparation, installation, operation, care and user service information for the Ramvac ® Barracuda Single Wet Vacuum Pump. To view the latest manual, go to DENTALEZ.COM to download a digital (PDF) copy. The Barracuda Single Wet Vacuum Pump is designed to provide trouble-free service when installed, operated and cared for according to the procedures set forth in this manual. -
Page 5: Product Features
Five-year warranty (see LIMITED WARRANTY section of this manual). ‚ OPTIONAL FEATURES Optional air/water and nitrous oxide separator. ‚ Optional water recirculator reduces water consumption by approximately 75% without sacrificing high vacuum ‚ power. SINGLE WET VACUUM PUMP 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 6: Specifications
SECTION I - INTRODUCTION SPECIFICATIONS CV-101FS / CV-101FSW CV-102FS / CV-102FSW Max Users Recirculator Included Phase Horsepower (kW) Voltage Rating (Min/Max) 115 (208-230) 230 (208-230) Cycle (Hz) Breaker Size (Amps) Unit Power Consumption (Amps)(ea. Motor) 13.2 / 7.2-6.6 11.9-10.7 Running Speed (RPM) 3,450 3,450 Max Sealed Vacuum (Hg) -
Page 7: Classifications
= Manufacturer = Hazardous Moving Parts = Box Must Remain Upright = Do Not Place Box on Unlevel Surface = Do Not Stack Box = Box Contents Safe Temperature Range = Box Contents Safe Humidity Range 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 8: Safety Precautions
SECTION I - INTRODUCTION SAFETY PRECAUTIONS To ensure that the safety potential of this equipment is achieved, make sure equipment is installed according to written instructions. Electrical shock could occur as a result of improper grounding. This product must be grounded according to NEC ‚... -
Page 9: Section Ii - Preinstallation
Separate circuit with 20-Amp breaker, single-phase. breaker, single-phase. *Model CV-101FS is manufactured and shipped for 115 V operation. This model may be converted to 230 V operation by qualified installation technicians only following connection diagrams inside the pump control box. 866-DTE-INFO dentalez.com PN: 64710084J... - Page 10 SECTION II - PREINSTALLATION SITE REQUIREMENTS (CONTINUED) WATER LINES Water lines must be installed by a licensed plumber according to all local building codes. ‚ Requirements: 1/2" gate valve reduced to 1/8" FIP. ‚ WASTE LINES Waste lines must be installed by a licensed plumber according to local building and health codes. ‚...
-
Page 11: Suggested Pump Sites
TYPICAL UTILITY LOCATIONS & MEASUREMENTS ELECTRIC OUTLET DRAIN WATER P-TRAP LINE LOW-VOLTAGE 18-3 FOR LIGHTED SWITCH VACUUM LINE 8" FLOOR SINK 12" NOTE: Locations and measurements are approximate. A and B are alternate waste line connection methods. 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 12: Section Iii - Installation
SECTION III - INSTALLATION INSTALLATION KIT Each vacuum pump is supplied with an installation kit (PN: 64568036). AIR/WATER FLOW CIRCULATION PARTS QTY. PART/KIT NAME PART/KIT NO. Adaptor, Nylon, 3/4 MIP × 3/4 MHT 64504005 Adaptor, Nylon, 3/4 MIP × 3/4 BARB 64504079 Adaptor, PVC, 1 NPT ×... -
Page 13: Cabinet
Intake hose to vacuum line. Low-voltage wire to operatory control switch (24V). 1/4" nylon water line. Power cord or direct wiring. Water hose to P-trap or floor sink. Waste muffler. Figure 2. SiNK CABiNeT ASSeMBLY FOr SiNgLe WeT VACuuM 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 14: Drip Plate
SECTION III - INSTALLATION DRIP PLATE INSTALLATION INSTRUCTIONS Locate two holes on top of the pump motor. 2. Place parts in order as shown; insert screws and tighten (FIGURE SCREW DRIP PLATE COVER BUSHING SELF-RETAINING WASHER Figure 3. DriP PLATe ASSeMBLY iNSTALLATiON... -
Page 15: Water Supply Line
A saddle valve may be tapped into an existing cold water line. Follow the instructions on the saddle valve package. SADDLE VALVE INSTALLATION QTY. PART/KIT NAME PART/KIT NO. Water Line Saddle Valve, 1/4", Complete Kit 4 ft Tube, Nylon, 1/4" 64618006 *Supplied by plumber 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 16: Vacuum Line
SECTION III - INSTALLATION VACUUM LINE NOTICE All vacuum systems must be installed according to local building and electrical codes. ‚ All vacuum lines and risers are recommended to be IPS, PVC, schedule 40. Type “M” copper should be used if local code does not allow the use of PVC. -
Page 17: Waste Line
Clamp, Stainless Steel, 1" 64527003 Elbow, Brass, 1" × Nut Bushing, PVC, 1" MIP × 1" FIP Adapter, Air Gap, 2" Reducer, Bell, 2" × 1½", Galv. Nipple, 1½" × Close, Galv. Trap, “P” , 1½" *Supplied by plumber 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 18: Water Recirculator (Optional)
SECTION III - INSTALLATION WATER RECIRCULATOR (OPTIONAL) WARNING Before doing any work, turn OFF the main power. ‚ NOTE: For convenience, refer to the itemized illustration below during installation. MOUNTING Disconnect the vacuum pump exhaust hose from the hose connector on the pump [2]. - Page 19 [17] on the opposite side of the recirculator assembly. VIEW C OPERATION CHECK After installation is complete, operate the system and check all connections for leaks. 2. Correct leaks as required. 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 20: Electrical Connection
SECTION III - INSTALLATION ELECTRICAL CONNECTION Complete the electrical hook-up per the electrical code to L1/L2 and ground as shown. 60 Hz GROUND... -
Page 21: Section Iv - Operation
If the evacuator operates for extended periods of time, proper ventilation is important. Installations in small, confined areas should be supplied with a ventilation system capable of keeping the air temperature around the pump at 40°C/104°F or less. 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 22: Section V - Care & Maintenance
SECTION V - CARE & MAINTENANCE OVERVIEW WARNING Before starting cleaning procedures, make certain to put on eye protection, a mask, and puncture-resistant nitrile gloves. Prior to performing any maintenance, proper precautions should be taken to reduce the possibility of contact with infectious substances. -
Page 23: Preventive Maintenance Schedule
NOTE: Although the water supply to the vacuum system is normally turned off electrically when the system is turned off, it is possible that a solenoid valve may malfuntion, allowing water to flow through the valves and into the vacuum system. 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 24: Daily Maintenance
SECTION V - CARE & MAINTENANCE DAILY MAINTENANCE FLUSH VACUUM PLUMBING SYSTEM Before the system is turned off at the end of the day, it is recommended that the hoses in the operatory be flushed with fresh water and vacuum system cleaner. Just before turning off the vacuum, rinse lines first with hot water– approximately one (1) quart through each high-volume line and a few ounces through each saliva ejector line. -
Page 25: Weekly Maintenance
8. Check all connecting vacuum, waste and water lines for tightness. INSPECT OPERATORY FILTERS Check and clean all operatory and secondary filters weekly. Follow the equipment manufacturer's recommendations. INSPECT VACUUM SYSTEM Check the vacuum system for water leaks and loose or broken connections weekly. 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 26: Monthly Maintenance
SECTION V - CARE & MAINTENANCE MONTHLY MAINTENANCE CLEAN WATER RECIRCULATOR Clean the water recirculator one (1) or two (2) times per month, depending on workload. NOTICE Failure to use the water recirculator cleaner as directed (sample included with recirculator) will VOID the manufacturer's warranty! To clean water recirculator: Turn the vacuum pump OFF. - Page 27 For greater vacuum level, turn the screw clockwise. ‚ For less vacuum level, turn the screw counter-clockwise. ‚ 2. Set to desired volume level and tighten lock nut. VACUUM PRESSURE GAUGE SCREW LOCK NUT Figure 5. VACuuM PreSSure gAuge, SCreW AND LOCKNuT 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 28: Section Vi - User Service Info
SECTION VI - USER SERVICE INFO TROUBLESHOOTING - VACUUM PUMP PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Check all wires for loose or broken If voltage is not present, replace connection. Check fuse. Check low-voltage the transformer or fuse. (Also see leads (yellow and black wires) for 24 volts. ELECTRICAL SYSTEM chart, p. -
Page 29: Troubleshooting - Electrical System
If it is less than 21V, replace the transformer. If it is more than 21V, replace the relay. If the problem is not addressed by using these actions, contact Ramvac technical service at 866-DTE-INFO. 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 30: Relay Box
SECTION VI - USER SERVICE INFO RELAY BOX MOTOR BLUE BLACK GREEN & YELLOW BLACK BROWN WHITE BLUE BLACK BROWN L2/N YELLOW GREEN & YELLOW LIGHT BLUE BROWN BLACK PURPLE BROWN & WHITE PN: 64529265F July, 2018 FUSE REPLACEMENT WARNING For continued protection against fire hazard, correct fuse must be used. -
Page 31: Wiring Schematic
PART/KIT NO Filter, Water 64568135 Valve, Solenoid (Only) 64568156 Valve, Anti-Siphon 64622011 Valve, Flow Regulator - 1 HP 64568192 Valve, Flow Regulator - 2 HP 64622010 Filter, Vacuum 64545040 Muffler, Vacuum Relief 64568159 Valve, Vacuum Relief 64622001 866-DTE-INFO dentalez.com PN: 64710084J... -
Page 32: Vacuum Pump System Repair Procedures
SECTION VI - USER SERVICE INFO VACUUM PUMP SYSTEM REPAIR PROCEDURES WARNING To prevent any chance of electrical shock, always disconnect power when indicated. ‚ Do not attempt these repairs in the dental office. ‚ If the motor does not start after checking through the TROUBLESHOOTING section of this manual, the motor may be defective. - Page 33 Figure 7. reMOVe eLeCTriCAL BOX COVer PLATe 8. Remove the chase nipple from inside the box where it screws to the motor. WIRES WATER LINE SCREWS (2) BOLT CHASE NIPPLE Figure 8. reMOVe WATer LiNe FrOM PuMP HOuSiNg 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 34 SECTION VI - USER SERVICE INFO VACUUM PUMP SYSTEM REPAIR PROCEDURES (CONTINUED) MOTOR PUMP REMOVAL/DISASSEMBLY Remove the motor cover plate (top of motor). VACUUM 2. Shut OFF the valve supplying water to the pump. INTAKE 3. Disconnect the vacuum and exhaust lines at the pump and install line closure plugs.
- Page 35 11. Remove the housing bolts and take off the housing by pulling it off the shaft (FIG 12). 12. Remove the water seal spring assembly then inspect the housing for pitting or scoring. Figure 11. reMOVe iMPeLLer BOLTS (4) HOUSING Figure 12. TAKe OFF HOuSiNg 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 36 SECTION VI - USER SERVICE INFO VACUUM PUMP SYSTEM REPAIR PROCEDURES (CONTINUED) PUMP TO MOTOR ASSEMBLY Apply lubricating oil to the motor shaft, seal and motor housing (FIGURE 13). 2. Press the seal into the pump housing with the ceramic side facing outward (FIGURE 14).
- Page 37 Figure 16. iNSTALL BOLTS AND reQuireD SHiMS Set the pump upright and insert a screwdriver into the slot on top of the motor to check for free spin and smooth operation of the pump. BASE GASKET Figure 17. reiNSTALL BASe AND gASKeT 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 38 SECTION VI - USER SERVICE INFO VACUUM PUMP SYSTEM REPAIR PROCEDURES (CONTINUED) HOUSING/IMPELLER SPACING VACUUM PUMP OPERATION TESTING SHIMMING PROCEDURE To check for proper operation of the vacuum pump, connect to an electrical source, water and waste line. A. Insert shims between the motor and the housing at two opposite mounting legs until snug.
-
Page 39: Service Instruction
SECTION VI - USER SERVICE INFO WET VACUUM USER MANUAL SERVICE INSTRUCTION If the area of concern is not addressed in this manual, contact DENTALEZ customer service at 866-DTE-INFO. (See LIMITED WARRANTY.) Please have the following product information available. Information may be found on the product model/serial number... -
Page 40: Section Vii - Parts
SECTION VII - PARTS REPLACEMENT PARTS LIST 1 HP SINGLE PUMP ASSEMBLY QTY. PART/KIT NAME PART/KIT NO. Relay Unit, 115V, 230V 64501150 Water Manifold, 1/2 Gallon 64568196 Motor, 1 HP, FS 64568165 Adaptor, Brass, 3/4" × 1/2" 64568146 Cap Screw, 3/8"-16 × 1" 1615-028 Shim, Steel .005 Thick 64604001... - Page 41 Mounting Feet Kit, 2 HP 64568151 Bracket, Electrical Box to 64514054 Motor, Stabilizer *NOTE: See OPERATION CARE & MAINTENANCE sections of this manual for detailed information on hookup and care of the Barracuda single wet vacuum pump. Pump Kit 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 42 SECTION VII - PARTS REPLACEMENT PARTS LIST (CONTINUED) INSIDE OUTSIDE ELECTRICAL BOX COVER COVER QTY. PART/KIT NAME PART/KIT NO. Electrical Box Assembly, 115V 64501150 or 230V Control Box Chassis 64513011 Control Box Cover 64513011B Decal, Low, 24V 64529027 Decal, Fire/Shock Warning 64529174 Decal, D V Elec.
- Page 43 Elbow, Brass, 1/4" Tube × 3/8" 64541084 Elbow, Brass, 3/8" 64541104 Valve, Dole Control, 1/8" 64622018 Valve, Dole Control, 1/4" 64622019 WITH RECIRCULATOR Adapter, Brass, 1/4" Tube × 3/8" 64504091 16** Loctite, #571 Sealant 64690008 Req. 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 44 SECTION VII - PARTS REPLACEMENT PARTS LIST (CONTINUED) ANTI-SIPHON VALVE ASSEMBLY WATER SOLENOID VALVE ASSEMBLY QTY. PART/KIT NAME PART/KIT NO. QTY. PART/KIT NAME PART/KIT NO. Anti-siphon Valve Assembly 64622011 Water Solenoid Valve 64568156 Assembly, 24V 1,2,3 Anti-siphon Repair Kit 64568016A...
- Page 45 Bowl, Screen & Gasket 64568120 Socket Head Cap Screw, 64611059 1/4"-20 × 2 Plug, 1/4" MIP, Brass 64584009 Nipple, 3/4" × Close, Brass 64578003 Vacuum Relief Valve, Brass 64622001 Manifold Gasket, Fiber 64568137 Vacuum Relief Muffler 64568159 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 46: Emc Information
EMC INFORMATION The Barracuda Wet Vacuum Unit is suitable for use in the specified electromagnetic environment. The customer and/or user of the vacuum should ensure that it is used in an electromagnetic environment as described in this manual. Medical electrical equipment needs special precautions regarding electromagnetic compatability (EMC) and needs to be installed and put into service according to the EMC information provided in the accompanying documents. - Page 47 (50/60 Hz) Magnetic Field 3 A/m Not Applicable levels characteristic of a typical location in a IEC 61000-4-8 typical commercial or hospital environment. NOTE: Ut is the AC mains voltage prior to application of the test level. 866-DTE-INFO dentalez.com PN: 64710084J...
- Page 48 EMC INFORMATION GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY ME EQUIPMENT AND ME SYSTEMS The vacuum is intended for use in the electromagnetic environment specified below. The customer or the user of the vacuum should assure that it is used in such an environment. IEC 60601 Test Compliance Immunity Test...
- Page 49 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 50: Limited Warranty
We are not responsible for shipping damages. We will, however, help you file a claim with the freight carrier. Written repair estimates are available. DENTALEZ warrants all equipment and parts to be free of defects in material and workmanship, under normal usage under the following terms:... - Page 51 WET VACUUM USER MANUAL NOTES: 866-DTE-INFO dentalez.com PN: 64710084J...
-
Page 52: Privacy Policy
Effective Date: November 1, 2023. Introduction and Overview. This Privacy Policy describes how DentalEZ, Inc. its subsidiaries and affiliates (collectively “DentalEZ,” “we,” “our,” or “us”) collects, uses, and shares information about you as well as your rights and choices. This Privacy Policy applies to your use of the DentalEZ equipment containing the Aeras platform, or similar “smart technology”... - Page 53 Equipment Usage and Performance Data, including performance data collected from sensors connected to the DentalEZ smart technology in your dental or medical equipment, including by not limited to when the equipment is used and for how long, what equipment functions are being used, how the equipment is running, power surges, tank pressure, voltage, oil or water level, maintenance alert, service history, pump intake, runtime and vacuum efficiency, and other kinds of equipment performance data.
- Page 54 We also share information in accordance with the applicable laws in order to protect the rights, property, life, health, security and safety of DentalEZ, DentalEZ personnel, the Service or any third party.
- Page 55 “Contact Us” section below with the word UNSUBSCRIBE in the subject field of the email. Please note that you cannot optout of non-promotional emails, such as those about your account, transactions, servicing, or DentalEZ’s ongoing business relations. •...
- Page 56 The Service is intended for a general audience and not directed to children under eighteen (18) years of age. DentalEZ does not knowingly collect personal information of children under the age of thirteen (13). If you are a parent or guardian and believe DentalEZ has collected such information in a manner not permitted by law, please contact us as set out in the “Contact Us”...
-
Page 57: Terms Of Use
These Terms of Use (“Online Terms”) set forth a legally binding agreement between DENTALEZ, Inc., DentalEZ Alabama, Inc., DTE Oregon, Inc., their subsidiaries and affiliates (collectively “DentalEZ” , “we” , “our” , or “us”) and the person or entity identified on the order form or other Service (as defined below) subscription purchase document (“Customer”). - Page 58 Availability. DentalEZ may suspend or terminate the availability of the Service and Content, in whole or in part, to any Account, individual user or all users, for any reason (including, a failure to pay Service subscription fees when due), in DentalEZ’...
- Page 59 In the event of any errors relating to the pricing or specifications, DentalEZ shall have the right to refuse or cancel any orders in its sole discretion. If we charged your credit card or other Account prior to our cancellation, we will issue a credit to your Account in the amount of the charge.
- Page 60 (whether express or implied) or other obligations with respect to Service hereunder. DentalEZ has no obligation to monitor or maintain Other Services and may disable or restrict access to any Other Services at any time without notice.
- Page 61 DentalEZIOT@ DentalEZ.com and specifying you want to opt-out of calls. For text messages, you can also text “HELP” at any time for more information. We will unsubscribe your phone number from reoccurring texts messages from us within 10 business days of our receipt of your opt-out request.
- Page 62 D. Authority of Arbitrator. The arbitrator will decide the rights and liabilities, if any, of you and DentalEZ, and the dispute will not be consolidated with any other matters or joined with any other cases or parties. The arbitrator shall have the authority to grant motions dispositive of all or part of any claim.
- Page 63 You agree to cooperate with DentalEZ’ defense of any claim. You will not in any event settle any claim without the prior written consent of DentalEZ. This provision does not require you to indemnify us for any unconscionable commercial practice by us or for our fraud, deception, false promise, misrepresentation or concealment, suppression or omission of any material fact in connection with the Service.
- Page 64 The summaries of provisions and section headings are provided for convenience only and shall not limit the full Terms. DentalEZ may assign its rights and obligations under the Terms, in whole or in part, to any party at any time without any notice. The Terms may not be assigned by you, and you may not delegate your duties under...
- Page 65 Service. Except as expressly set forth in the Terms, (i) no failure or delay by you or DentalEZ in exercising any of rights, powers, or remedies under will operate as a waiver of that or any other right, power, or remedy, and (ii) no waiver or modification of any term of the will be effective unless in writing and signed by the party against whom the waiver or modification is sought to be enforced.
- Page 66 2500 Highway 31 South Bay Minette, AL 36507 T: 866-DTE-INFO DENTALEZ.COM © 2024 DENTALEZ, Inc. DENTALEZ is a registered trademark of DENTALEZ, Inc. Ramvac is a registered trademark of Ramvac Dental Products, Inc. PN: 64710084J February, 2024 Printed in USA...
