DentalEZ Star TITAN Indications For Use

DO NOT USE FOR ORAL SURGERY
Before operating the handpiece, carefully read and follow all of these instructions. Save
these instructions for future reference and observe all warnings and cautions.
INDICATIONS FOR USE
Low speed dental attachments are used intraorally by trained dental professionals for drilling
and preparation of dental cavities for restoration, such as fillings. This also includes disking,
cavity and crown preps, polishing, post and pin drilling and pin setting.
Caution: U.S. Federal law restricts this device to sale by or on the order of a
licensed physician.
CONTENTS

FEATURES

ANGLE INSTALLATION

SPECIFICATIONS

CLEANING & STERILIZATION

INSTALLATION

Troubleshooting

TORQUE MULTIPLIER OPERATION

Replacement Part Numbers

STRAIGHT NOSE CONE OPERATION

Warranty
FEATURES
LUBEFREE
SMOOTH RUNNING, LOW FRICTION PERFORMANCE
EASY MAINTENANCE
LONG-TERM RELIABILITY
QUICK-DISCONNECT MECHANISM
STEAM STERILIZATION: 275° F (135° C) MAXIMUM
SPECIFICATIONS
PART # DESCRIPTION

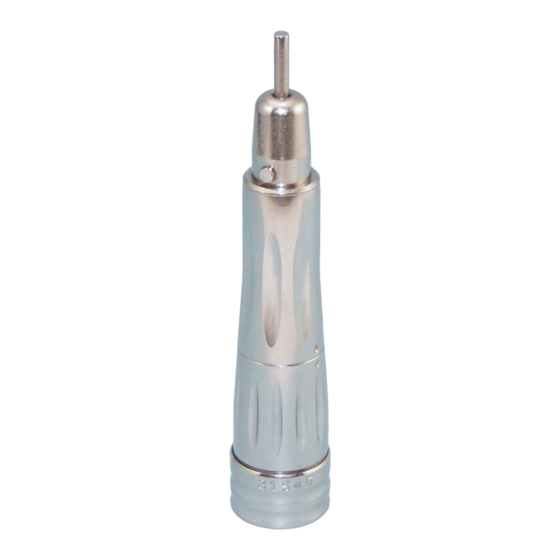

Titan 3 Straight Nose Cone
257506 ®
263942 Titan-T TM Straight Nose Cone
264073 Titan 3 BB Motor-to-Angle Adapter
®
263970 Titan-T TM BB Motor-to-Angle Adapter
258443 Titan 3 Torque Multiplier
®
263944 Titan-T TM Torque Multiplier
INSTALLATION
CAUTION
To prevent injury, always remove bur or cutting tool from the straight nose
cone before installing or disconnecting the straight nose cone.

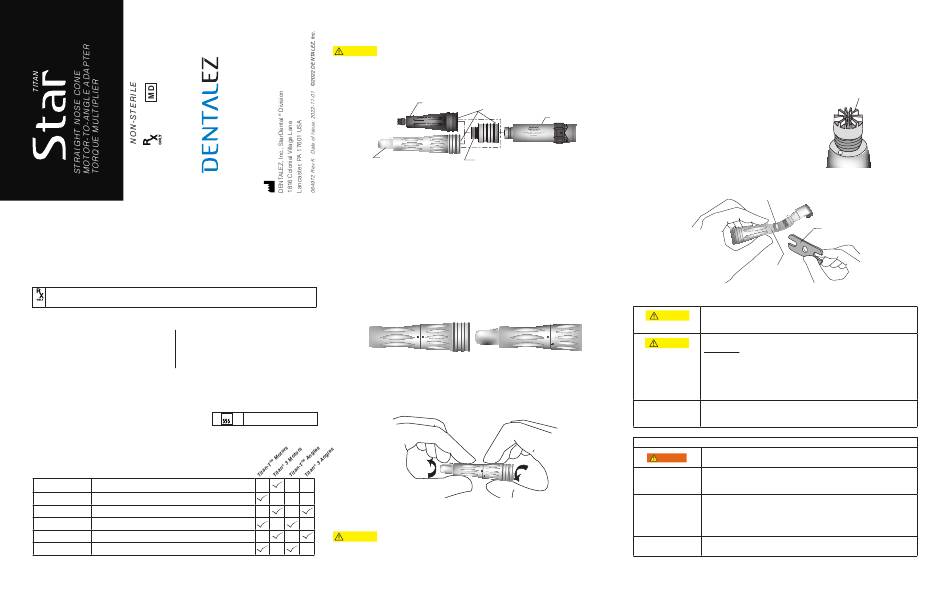

1. Assemble straight nose cone or motor-to-angle adapter to torque multiplier or motor
by retracting the quick connect collar with fingers while placing straight nose cone or
motor-to-angle adapter on motor; release the quick connect collar. (Fig. 1)
STRAIGHT NOSE CONE
2. To remove straight nose cone, motor-to-angle adapter or torque multiplier, reverse
the above procedure.
Note: Never use force to connect or disconnect the straight nose cone, motor-to-angle
adapter or torque multiplier.
TORQUE MULTIPLIER OPERATION
The torque multiplier, Titan 3 Star Part #258443 or Titan-T Star Part# 263944, fits
between the motor and either the straight nose cone or motor-to-angle adapter. Use the
torque multiplier to reduce speed four to one and increase torque by a multiple of four.
When used with the 20K motor, low speed capability expands to perform low speed,
high torque procedures: prophylaxis, pin placement, endodontics, caries removal, and
operations where higher torque is required.
STRAIGHT NOSE CONE OPERATION
DOTS ALIGNED
Fig. 2
CHUCK: CLOSED AND LOCKED
Engraved on the sleeve and chuck locking collar of the straight nose cone are two dots.
(See Fig. 2) Aligned dots indicate chuck is closed and locked. When dots are not aligned,
chuck is open and unlocked.
To open chuck, grasp the chuck locking collar with one hand, the sleeve with the other,
and rotate counterclockwise until a 'click' is heard. (See Fig. 3)
135°C
Sterilizable up to 135°C
With the chuck open, insert a .0925"(2.350mm)Ø shank bur, Doriot angle or disposable
prophy angle the full length of the chuck. Close chuck and lock by reversing the opening
procedure.
CAUTION
Operate the straight nose cone with a bur, Doriot angle or disposable angle
in chuck. Operating either with the chuck open or without a bur, Doriot angle or disposable
angle installed will damage the chuck.
FOR USE WITH
MOTOR-TO-ANGLE ADAPTER
QUICK CONNECT COLLAR
MOTOR
Fig. 1
TORQUE MULTIPLIER
DOTS NOT ALIGNED
CHUCK: OPEN AND UNLOCKED
Fig. 3
ANGLE INSTALLATION
1. Thread contra angle attachment of choice onto the motor-to-angle adapter, Titan-T
BB Star Part #263970 or Titan 3 BB Star Part #264073, by hand. Seat completely.
Note: If angle does not seat on adapter, gears are not
meshed correctly (see Fig. 4). Remove angle;
spin motor-to-angle adapter drive gear and
repeat step one.
2. Fit universal wrench, Star Part #203048, furnished with every angle, to mating
indentations on angle neck; tighten securely. (See Fig. 5)
MATING INDENTATIONS
MOTOR-TO-ANGLE
ADAPTER
CLEANING & STERILIZATION
It is the responsibility of the user to use only FDA compliant
CAUTION
sterilizing equipment and accessories that are capable of meeting
the manufacturers recommendations below.
Do not exceed 135°C
CAUTION
Do not use:
dry heat sterilizer cold sterilizers
ultrasonic cleaners sterilizer bags containing disinfectants
immersion techniques surface sprays
detergents surface wipes
surgical milk hand soaps
chemical disinfectors
LIMITS ON Repeated processing has minimal effect on these attachments.
End of life is normally determined by wear and damage due to
REPROCESSING
use.
INSTRUCTIONS
The attachments must be cleaned and sterilized before first use and
WARNING
after each patient.
CONTAINMENT
It is recommended that attachments are reprocessed as soon as
AND is reasonably practical following use.
TRANSPORTATION:
PREPARATION Wear puncture-resistant gloves to prepare attachments for
FOR CLEANING: sterilization. Remove bur, disc or prophy cup from angle
attachment. Disconnect straight nose cone, torque multiplier or
angle and motor-to-angle adapter from motor. Disconnect angle
from motor-to-angle adapter.
CLEANING
Washer-disinfectors are not recommended.
AUTOMATED:
MOTOR-TO-ANGLE
ADAPTER DRIVE GEAR
Fig. 4
UNIVERSAL
WRENCH
Fig. 5
