DentalEZ Star Instruction Manual

S TA RB R I G H T L A M P CO N T R O L
NO N - ST E R I L E M E DI CA L DE V ICE
DentalEZ, Inc.,
StarDental ® Division
1816 Colonial Village Lane
Lancaster, PA 17601 USA
065668 Rev F Date of Issue 2021-01-30 ©2021 DENTALEZ, Inc.
Before operating the handpiece, carefully read and follow all of these instructions. Save
these instructions for future reference and observe all warnings and cautions.
INDICATIONS FOR USE
The lamp control is used with any of a variety of dental air driven handpieces which
have fiber optic capability in order to illuminate the work area
CONTENTS

SPECIFICATIONS

SPECIFICATIONS AC Adaptor
Height x Width x Length:
Voltage Input Range:

PRODUCT DESCRIPTION

Power Output:

LAMP CONTROL INSTALLATION

StarBright Fiber Optic Controller
Adjusting Lamp Voltage
StarDental Part Number:
Lamp Control Operation
Height x Width x Length:
Weight:
Cleaning
Voltage Input:
Air Pressure Input:
Troubleshooting Voltage Output at
Handpiece Terminal:
Calibration Range:
Replacement Part Numbers
Automatic Light Delay:
Lamp, StarBright:
Warranty
Voltage:
Wattage:
Current:
Lamp, non-StarDental:
PRODUCT DESCRIPTION
The StarBright Lamp Control System (PN 265677 or 265676), from StarDental is
designed to provide power for a handpiece light source. The system may be installed
into a dental unit to provide a clean, aesthetic visual appearance. For this reason,
it is highly recommended that a qualified service technician be consulted for proper
installation of the product.
The StarDental Lamp Control System has a power requirement of 7.5 – 9 V AC/DC,
1.2A. and has an output range of 2.5 – 4.2 VDC. StarDental recommends using AC
Adaptor # 265672. It is factory preset to 3.3 VDC to operate with a StarDental Fiber
Optic Swivel.
LAMP CONTROL SYSTEM INSTALLATION
Handpiece light source tubings are available in various styles and colors to be
compatible with dental unit colors and desired handpiece connections. If a unit does not
already have a handpiece light source tubing, install tubing that is compatible with the
particular handpiece being used.
1. Route signal air tubing from the Reducing Tee to the lamp control. Select a position on
the drive air tubing near the lamp control for installation. It may be necessary to trim
back the outer tube jacket to get correct position of the drive air tube (clear).
2. Cut the drive air tubing and slide a ferrule over each end of the cut tubing.
3. Install the Reducing Tee by sliding each cut tubing onto each barb of the Reducing
Tee.
4. Push ferrules over tubing at each barb to lock tubing in place.
Note: Install a 1/8" x 1/8" x 1/16" plastic tee and air sensing tube assembly into the drive-
air line of the appropriate handpiece position not more than 12" from the desired location
of the Lamp Controller.
Signal air tubing must be free of kinks to activate lamp control properly.

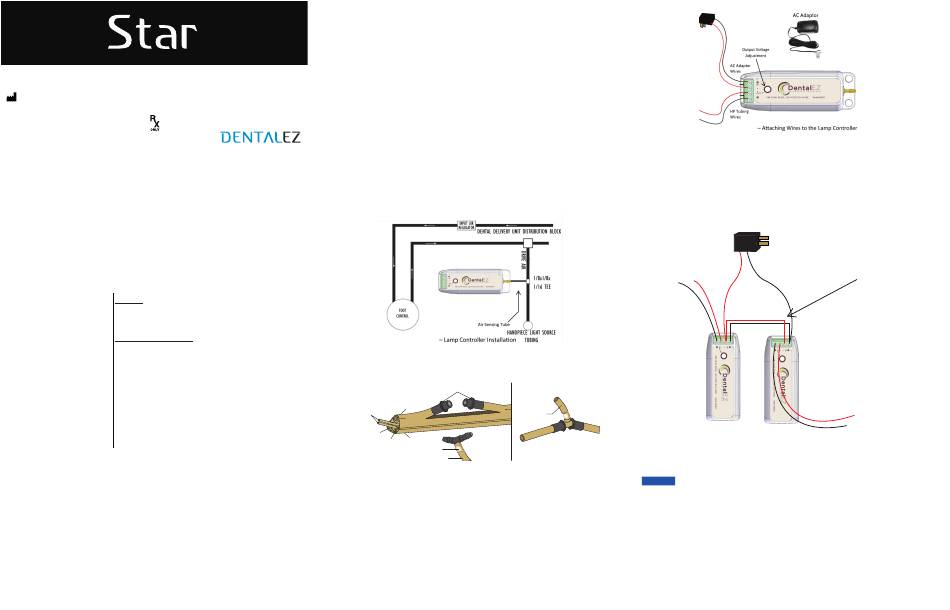

See Fig. 1 and Fig. 2
Approximately: 2" x 1.85" x 3.25"
00V-240VAC
20 watts
2.2 amp current
9 VDC
265677 Single Position Controller
265676 Dual Position Controller
NOTE: Tubing, Ferrules and Tees not included
0.92" x 1.0" x 3.0"
1.5oz (113.8 g)
7.5-9V AC/DC, 1.2A
100 psi max. 10-15 psi activation
3.3 VDC
2.5-4.2 VDC
7 seconds
ELECTRIC
Lens end, Xenon-Halogen, StarDental Part #262522 CONNECTION
WIRES
3.3 VDC
4.3 watts
1.36 amps
EXHAUST AIR
Consult with tubing or handpiece manufacturer
COOLANT AIR
to confirm correct voltage setting.
5. Carefully route the power supply cord through or on the support arm of the delivery
head for eventual connection to the Lamp Controller. Provide sufficient slack to
prevent binding any moving part. Prevent the cord from hanging loosely in an area
where personnel travel.
6. Attach wire marked "+" on the AC adaptor to the "+" terminal on the controller. Attach
the remaining wire to the "-" terminal.
FIG 1
FERRULES
DRIVE AIR
SIGNAL AIR
COOLANT WATER
REDUCING TEE
SIGNAL AIR TUBE
7. Attach the handpiece tubing wires to the Lamp Controller terminals as shown in
Fig. 3.
NOTE: If bare wire is visible, take it out of terminal and trim it down so that the end of the
insulation butts up to the electrical terminal, ensuring that no bare wire is visible.
8. To create a dual output fiber optic controller, attach the AC Adaptor wires and the
handpiece wires as shown in figure 4. Make sure signal air is applied to both controllers from
their respective handpieces.
FIG 4
POSITIVE
HANDPIECE #1
PARALLEL CONNECTION
FIG 2
FO CONTROLLER #1
FIG. 4 DUAL LAMP CONTROLLER SETUP
Only use a StarDental AC adaptor (Part # 265672). Use of other
NOTICE
transformers may cause damage to the controller.
9. Plug AC adaptor into wall outlet.
NOTE: If measuring voltage from the set screw, ensure screws are fully tightened for
correct voltage reading.
NOTE: Non-StarDental tubing installation procedure is the same as StarDental tubing
installation procedure unless otherwise specified by tubing manufacturer.
FIG 3
AC ADAPTOR
22 AWG SOLID JUMPER
NEGATIVE
WIRE, 3" LONG
INSULATION UL1061, 1/4"
STRIPPED EACH END
(PROVIDED WITH DUAL
CONTROLLER KIT
PART # 265676)
HANDPIECE #2
FO CONTROLLER #2
