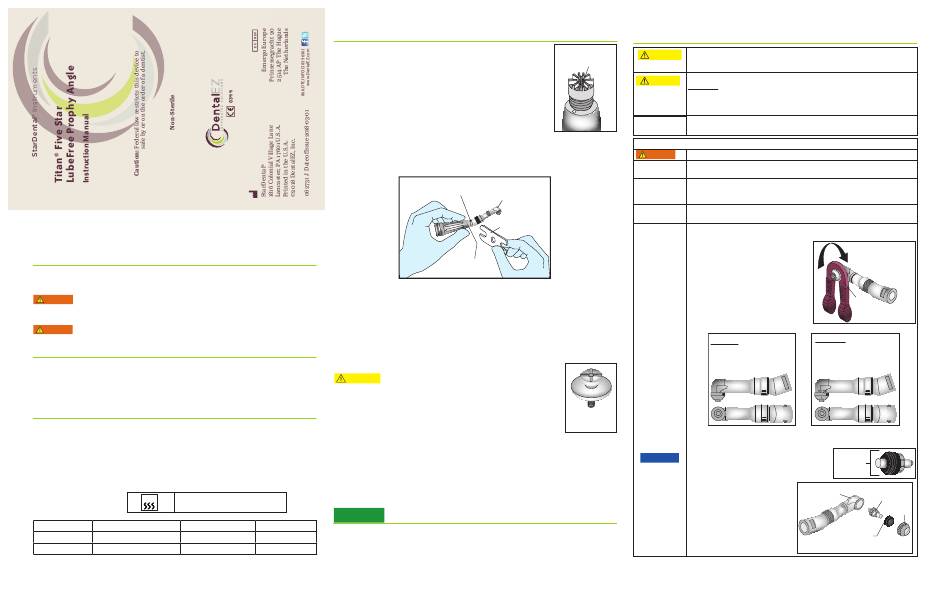

DO NOT USE FOR ORAL SURGERY
BEFORE OPERATING THE PROPHY ANGLE, CAREFULLY READ AND FOLLOW ALL OF THESE
INSTRUCTIONS. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND OBSERVE ALL
WARNINGS AND CAUTIONS.
Indications For Use
Used intraorally by trained dental professionals for drilling and preparation of dental cavities for
restoration, such as fillings, disking, cavity and crown preps, polishing, post and pin drilling and pin setting.
Under normal operating conditions, air is exhausted from the back of the head of this
WARNING
handpiece. If air is directed into an open soft tissue wound or beneath the mucosa
or dermis, injury to the patient could result from air emphysema of air embolism.
This angle has no internal air or water cooling capabilities. External water for
WARNING
cooling maybe required.
Contents
• Features
• Troubleshooting
• Installation and Operation
• Cartridge Replacement
• Safety Rule
• Replacement Part Numbers
• Cleaning & Sterilization
• Warranty
Features
Rated for use with StarDental Motors and Attachments
Titan LubeFree Five Star Prophy Angle:
®
StarDental
Titan 3 Part #265801 or Titan T Part #265802
Controlled Speed Reduces Prophy Paste 'Spin-off'
Field Replaceable Cartridge
Quick, Easy Cleaning
Compatible with Titan 3 and Titan T Systems
Steam Sterilization: 135° C
135°C
Sterilizable up to 135°C
Motor
Accessories
Ratio
5K
MTA
1:1
20K
Torque Multiplier & MTA
4:1
Installation and Operation
Prophy Angle Installation for Titan 3 or Titan T Systems
1. For the Titan 3 or Titan T systems thread angle onto
motor-to-angle adapter, StarDental Titan 3 Part #264073 or
Titan T Part # 263970, by hand. Seat completely.
NOTE: When angle does not seat on adapter, gears are not
meshed correctly. Remove angle; spin motor-to-angle
adapter drive gear and repeat step one.
2. Fit angle disconnect wrench, StarDental Part #203048, furnished with every angle,
to mating indentations on angle neck; tighten securely.
Mating Indentations
Prophy Cup Installation
The prophy angle uses either a screw-on or a snap-on type polishing cup. When using
a snap-on type cup, use the screw-to-button adapter, StarDental Part #258950.
Thread the screw-to-button adapter, or polishing cup, with a clockwise rotation until
snug into the hollow cartridge shaft of the prophy angle.
CAUTION Operate the Titan motor in the forward direction only.
If the Titan motor is operated in reverse direction, the
prophy cup will separate from the prophy angle.
Prophy Cup Removal
Unthread the adapter, or polishing cup, counterclockwise. If the screw-to-button
adapter is difficult to disengage, remove the prophy cup, and use a small screwdriver
to loosen the screw-to-button adapter.
SAFETY
INSTRUCTIONS
Max Allowable RPM
PLEASE OBSERVE SAFETY RULE
5,000
Before use, verify concentric rotation by operating the handpiece outside the oral
5,000
cavity in a safe place.
Motor-to-Angle
Adapter Drive Gear
Titan
LubeFree
Prophy Angle
Disconnect
Wrench
Motor-to-Angle
Adapter
Screw-to-
Button Adapter
Cleaning & Sterilization
It is the responsibility of the user to use only FDA compliant sterilizing equipment
CAUTION
and accessories that are capable of meeting the manufacturers recommendations
below.
Do not exceed 135°C
CAUTION
• cold sterilizers • ultrasonic cleaners
Do not use: • dry heat sterilizer
•immersion techniques
• sterilizer bags containing disinfectants
• surface wipes
• detergents
• chemical disinfectors
• hand soaps
Limits on
Repeated processing has minimal effect on these angles. End of life is
normally determined by wear and damage due to use.
Reprocessing
INSTRUCTIONS
The angle must be cleaned and sterilized before first use and between patient use.
WARNING
Containment &
It is recommended that angles are reprocessed as soon as is reasonably
transportation:
practical following use.
Preparation
Wear puncture resistant gloves to prepare the prophy angle for
for cleaning:
sterilization. Remove prophy cup or screw-to-button adapter from prophy
angle. Remove angle from motor-to-angle adaptor.
Washer-disinfectors are not recommended.
Cleaning
Automated:
Cleaning
1. Clean and inspect once before first use and after each patient.
Manual:
2. Clean all external surfaces with
isopropyl alcohol and a lint-free cloth
or brush.
3. Use the plastic wrench, StarDental Part
#258953, to unthread the end cap by
turning clockwise. See illustration:
Note: Older style angle - denoted by
having no marking on the end cap
of the angle (See illustrations
below) - will unthread by turning
counterclockwise.
Old Style:
-No Markings on End Cap
- Unthread End Cap in
CounterClockwise Direction
4. Remove the cartridge per instructions in 'Cartridge Replacement' and
inspect as follows:
Do not use pliers on the plastic bushing,
NOTICE
damage to the bushing might occur.
5. If prophy paste is not found on
the cartridge, internal cleaning is
not necessary. Simply wipe off
with lint-free cloth.
6. If prophy paste is found on
the cartridge, clean off the
paste manually. The gear
assembly and end cap may be
ultrasonically cleaned.
•surface sprays
• surgical milk
New Style - Unthread
End Cap in Clockwise
Direction
Plastic
Wrench
New Style:
-c
o and L
34
Marked On End Cap
- Unthread End Cap in
Clockwise Direction
Cartridge
Housing
Gear Assembly
End Cap
Plastic Bushing
