ROUTING DRAIN/SUCTION LINE

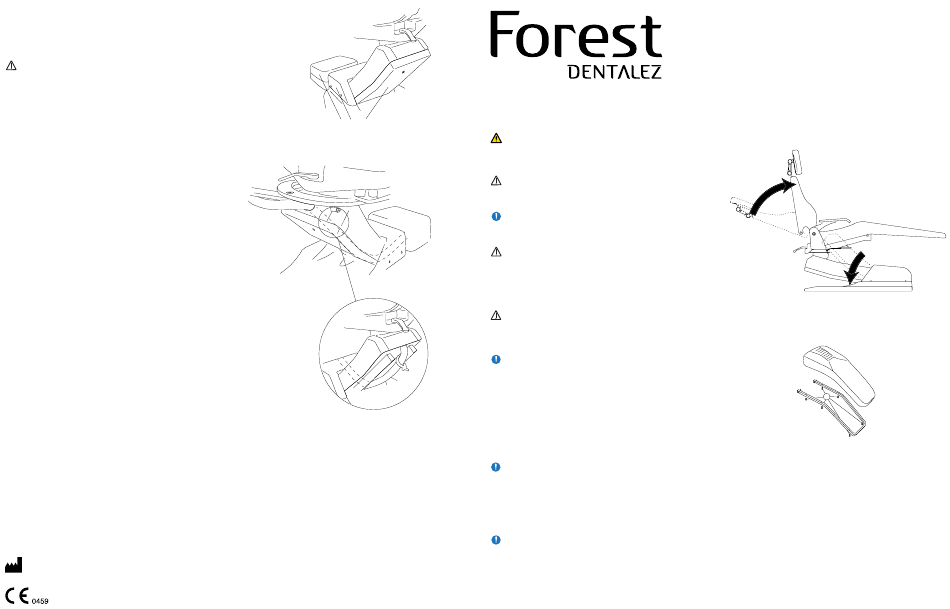

STEP 1: Remove covers (FIG. 1).
STEP 2: Route and secure tubings together with zip tie (FIG. 2).
CAUTION: Do not kink tubings with zip tie.
STEP 3: Make appropriate connection at utility center.
STEP 4: Reinstall covers.
STEP 5: Reinstall upholstery if originally removed.
