- Page 1 AU-11CD HDMI Audio De-Embedder (5.1) with Built-in Repeater OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Top Panel ............8 6.2 Right Panel ........... 9 6.3 Left Panel ............9 6.4 Front Panel ..........10 6.5 Rear Panel ...........10 7. -
Page 6: Introduction

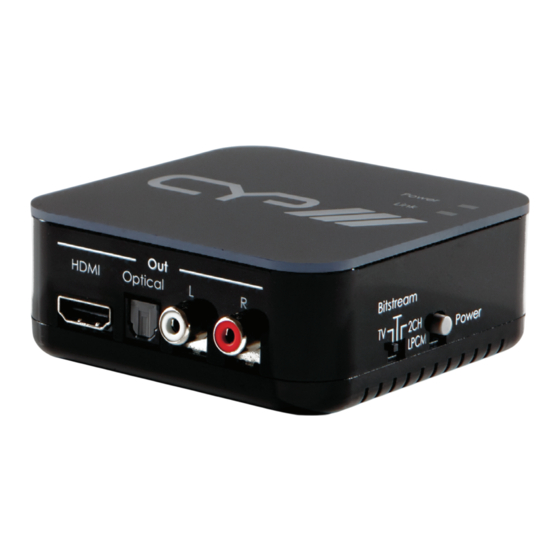

1. INTRODUCTION The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analogue Stereo (L/R) audio. -
Page 7: Features
5. FEATURES Compliant with HDMI, HDCP 1.2 and DVI 1.0 Supports HDMI audio sampling rates up to 192 kHz Supports Optical S/PDIF sampling rates up to 48 kHz Supports TMDS clock frequency rate 225 MHz Supports high-bit-rate (HBR) audio No HDMI output connection is required to receive audio at the analogue and optical outputs Maximum input and output HDMI cable length can run up to 15... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel Power Link Power LED: The Power LED will illuminate in blue when the unit is connected to the power supply and switched on. Link LED: The Link LED will illuminate in green when both the source and the display are connected and have established a link. -
Page 9: Right Panel
6.2 Right Panel Bitstream Power LPCM TV/Bitstream/2CH LPCM: This switch allows users to select the source's audio EDID. TV Mode: Switch to TV mode for the HDMI source to output audio per the EDID of connected TV or AV receiver, supports up to LPCM 7.1 channels. -
Page 10: Front Panel
6.4 Front Panel HDMI In HDMI In: Connect to a source device such as a DVD/Blu-ray player with an HDMI cable. 6.5 Rear Panel HDMI Optical HDMI Out: Connect to the display (TV/monitor) with an HDMI cable for video and audio signal output. No HDMI output connection is required to send audio through the analogue and optical outputs. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input HDMI In HDMI Optical Analogue Stereo Output Digital HDMI Output Audio Output (Optical) Active Speakers Display Amplifier... -
Page 12: Specifications
8. SPECIFICATIONS Input Port 1×HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical Audio Sampling Rate Up to 48 kHz Output Ports 1×HDMI, 1×Optical,1×L/R HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1, DD+, D-TrueHD & DTS-HD Optical Audio Format LPCM 2CH, Dolby 5.1 &... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
