Summary of Contents for CYP AU-1HARC
-

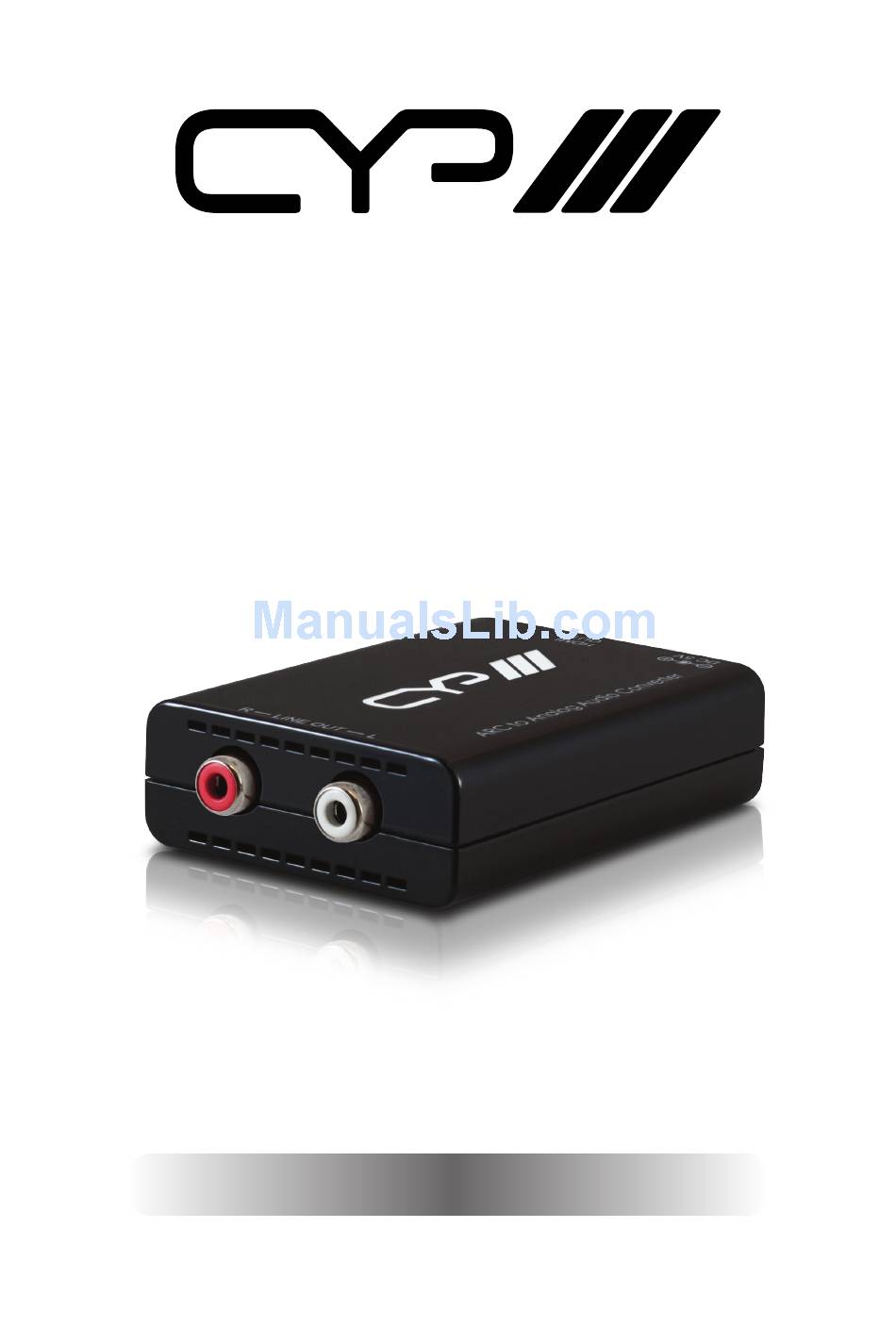

Page 1: Operation Manual

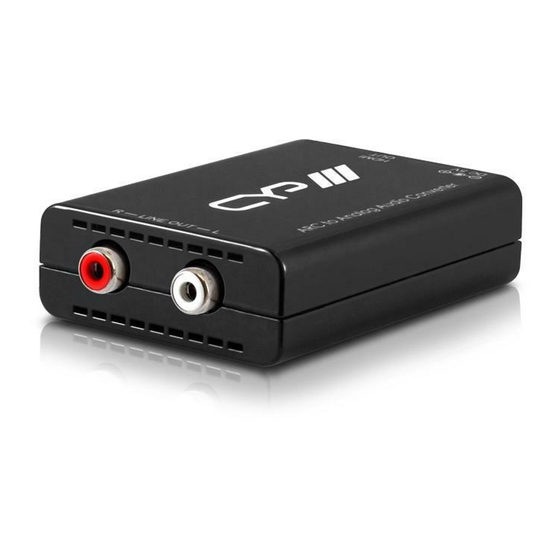

AU-1HARC ARC Extractor to Analogue Audio Operation Manual Operation Manual... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 4: Introduction
1. INTRODUCTION The ARC to Analog Audio Converter is designed to get HDMI audio signal from the TV’s ARC (Audio Return Channel) output and send out to active speakers or amplifier. Allowing immediate enjoyment over HDMI audio without delay and obstruct. Supporting HDMI sampling rate up to 192kHz and output analog 2CH audio. -
Page 5: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI DC 5V DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. HDMI: Connect from TV’s ARC connector with Audio signal activated. Power LED: This LED will illuminate when the device is connected with power supply. -
Page 6: Rear Panel
6.2 Rear Panel LINE OUT LINE OUT: Connect the R/L OUT to amplifier or active speakers. -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM TV/Display with ARC function LINE OUT Stereo Analog Output Active Speakers... -
Page 8: Specifications
8. SPECIFICATIONS HDMI ARC port 1 x HDMI Output Port 1 x R/L (Analog Stereo 2RCA) HDMI Sampling Rate Up to 192kHz ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V DC/ 1A Dimensions (mm) 55(W) x 82(D) x 22.5(H) Weight(g)
