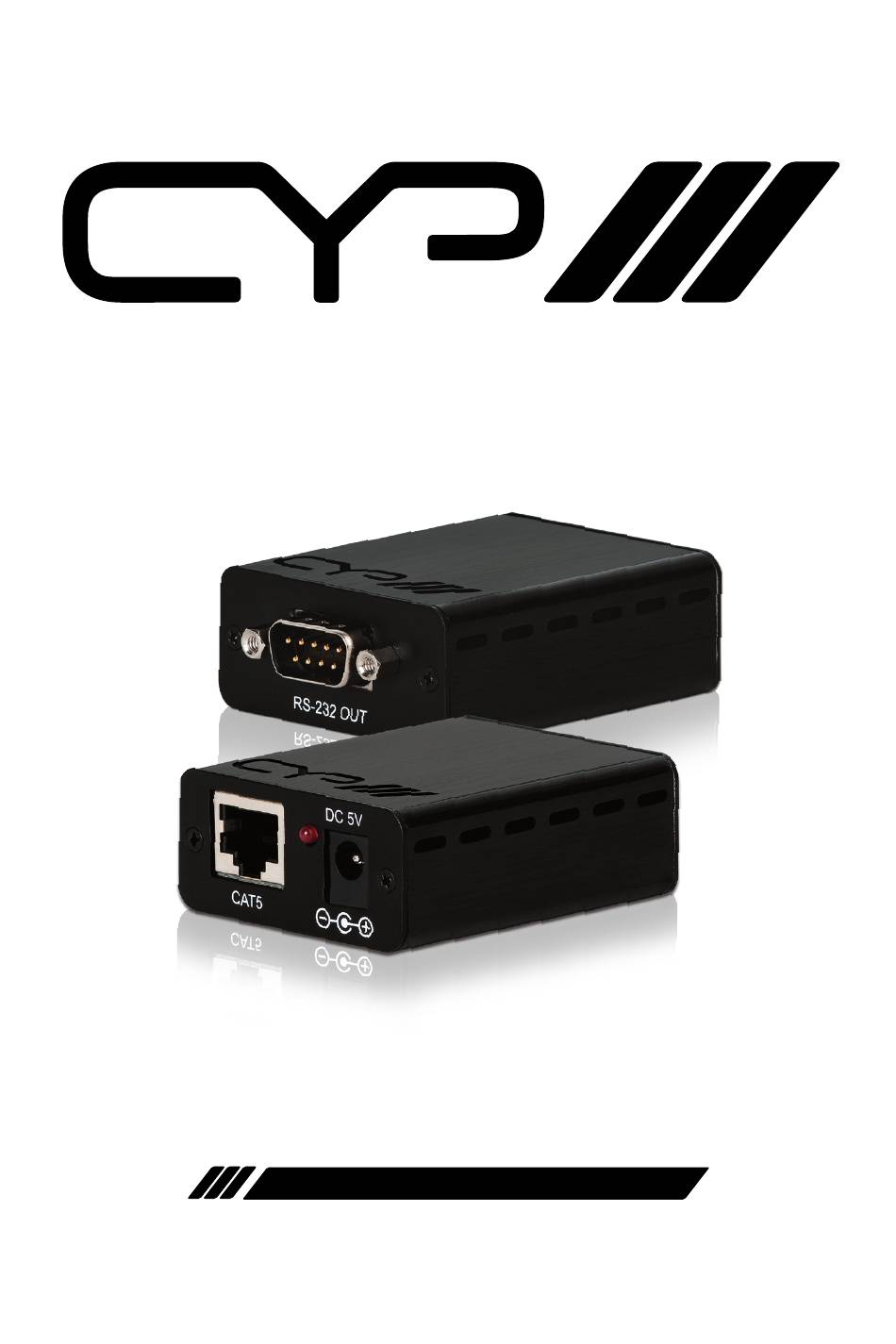

- Page 1 PU-232 RS-232 Control over CAT5e/6 Extender Set OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6.1 Transmitter Front and Rear Panels ..7 6.2 Receiver Front and Rear Panels .... 7 7. Connection Diagram ......8 8. Specifications .........9 8.1 Technical Specification ...... -
Page 6: Introduction
2. APPLICATIONS System installation. Control RS-232 devices in a remote location. System upgrading. 3. PACKAGE CONTENTS PU-232 Transmitter. PU-232 Receiver. 5V DC power adaptor. Operation Manual. 4. SYSTEM REQUIREMENTS Input PC/laptop equipment, DB 9 female to male cable x 2, CAT 5 cable and output source device. -
Page 7: Transmitter Front And Rear Panels

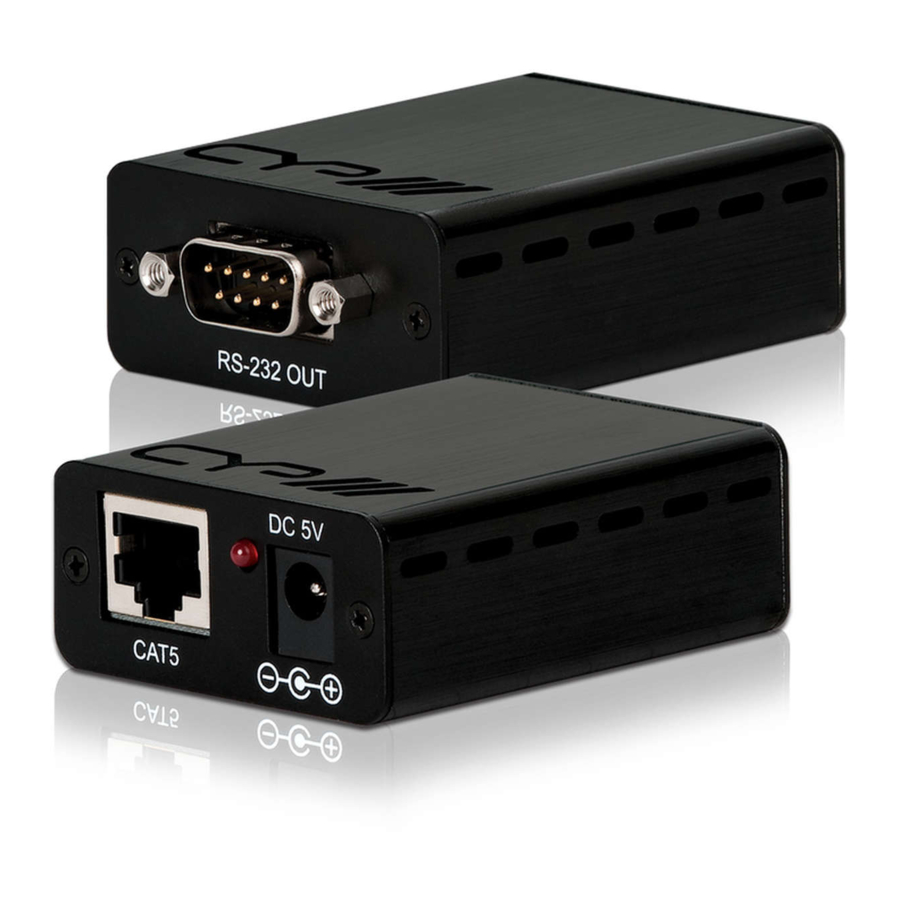

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V RS-232 IN CAT5 RS-232 IN: Connect a PC/laptop‘s main control system with a DB 9 female to male cable in order to send protocol to the source device. CAT5: Connect a CAT 5 cable (up to 250m) and link it to the Receiver unit . -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM Laptop or RS-232 Control System RS-232 RS-232 IN DC 5V CAT5 CAT5e Cable DC 5V CAT5 RS-232 OUT RS-232 RS-232 Device to be controlled... -
Page 9: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Input Port RS232 D-Sub-9 female CAT 5 Output Port RS232 D-Sub-9 male CAT 5 5V/1A DC (US/EU standards, CE/FCC/UL Power Supply certified) Dimensions (mm) 50(W) x 67(H) x 23(D) / each Weight (g) 80 / each Chassis Material Aluminum Silkscreen Colour... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
