PU-506-KIT
3-Play HDBaseT™ Extender Kit (2-way IR, RS-232 & HDMI,
up to 100m)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-506-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PU-506-KIT

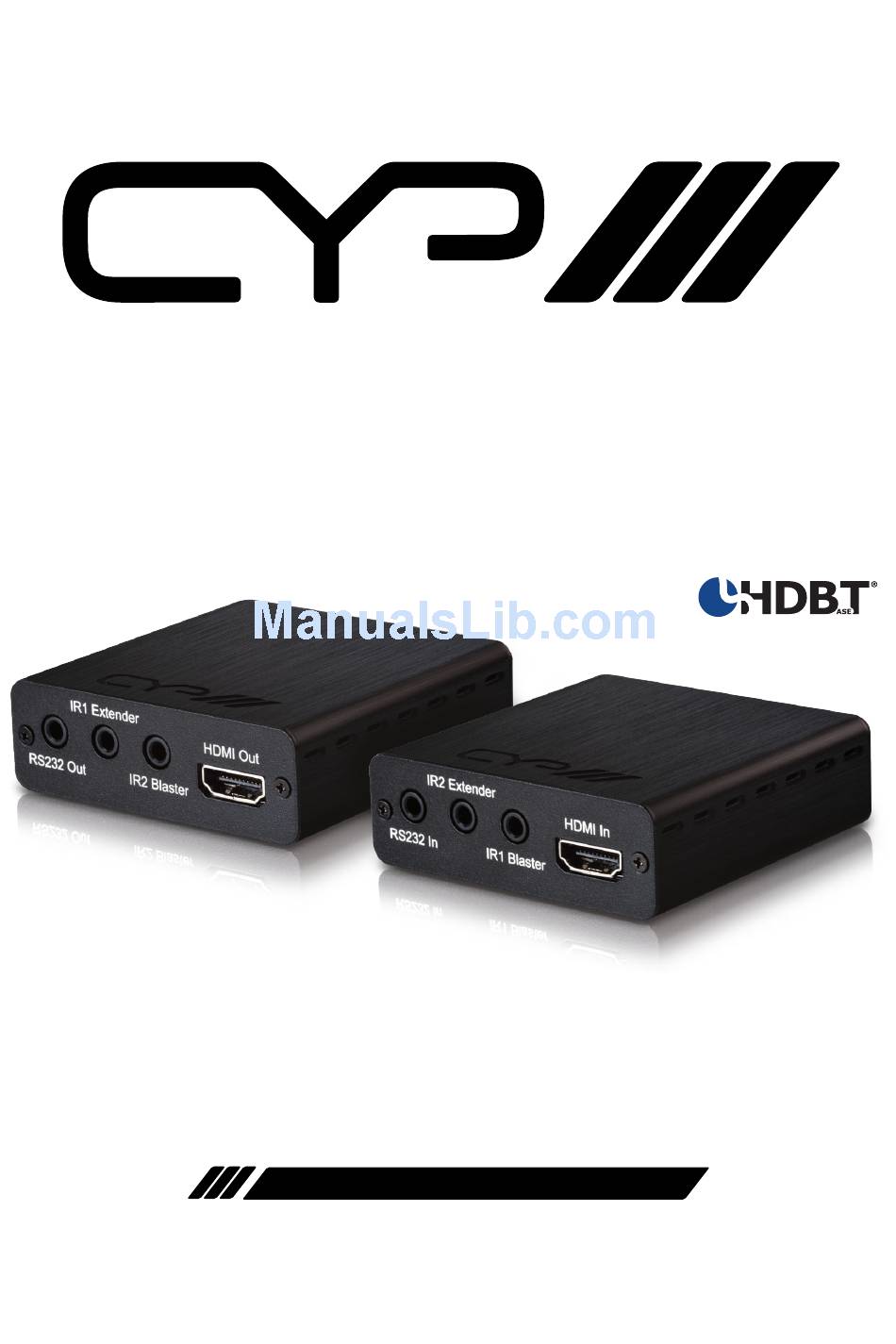

  • Page 1 PU-506-KIT 3-Play HDBaseT™ Extender Kit (2-way IR, RS-232 & HDMI, up to 100m) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 D-Sub 9-Pin Definitions ......10 6.4 IR Cable Pin Assignment .......10 7.
  • Page 6: Introduction

    1. INTRODUCTION The PU-506-KIT allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres.
  • Page 7: Features

    - APC-USB) : * Please note the performance and consistency of USB power outputs from TV's can vary and cannot be guaranteed by CYP. Note: This system was tested with CAT6/23AWG cable. Results may vary with cables of different specifications.
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 5V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster CAT 5e /6 Out RS232 In: Connect to a PC/laptop or RS-232 enabled device (with supplied 3.5 mm mini-jack to D-sub 9-pin adaptor) for the transmission of RS-232 commands.
  • Page 9: Receiver Front And Rear Panels

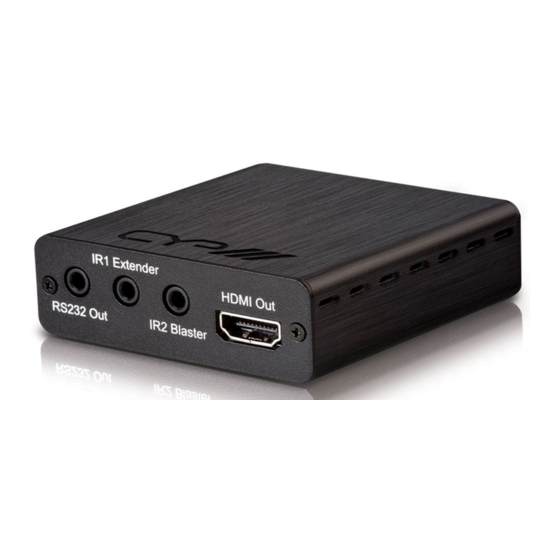

    6.2 Receiver Front and Rear Panels Front Rear DC 5V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster CAT 5e /6 In DC 5V: Plug the 5 V DC power supply into the unit and connect the adaptor to an AC outlet. Power LED: This green LED will illuminate when the device is connected to a power supply.
  • Page 10: D-Sub 9-Pin Definitions

    6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding...
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook DVD or Blu-ray Player HDMI RS-232 1.5m Input Adaptor 60° IR Blaster 60° Power Supply IR Extender IR2 Extender HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Single CAT5e/6/7 Cable Power...
  • Page 12: Specifications

    8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Transmitter Input Ports 1×HDMI, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster, 1×RS-232 CAT5e/6/7 Cable Up to 100m Distance HDMI Cable Input 10 meters/8-bit, 6 meters/12-bit Distance HDMI Cable Output...
  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared...
  • Page 16 CIE-Group Ltd 3 Widdowson Close Blenheim Industrial Estate Nottingham NG6 8WB UK Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com v1.01...
