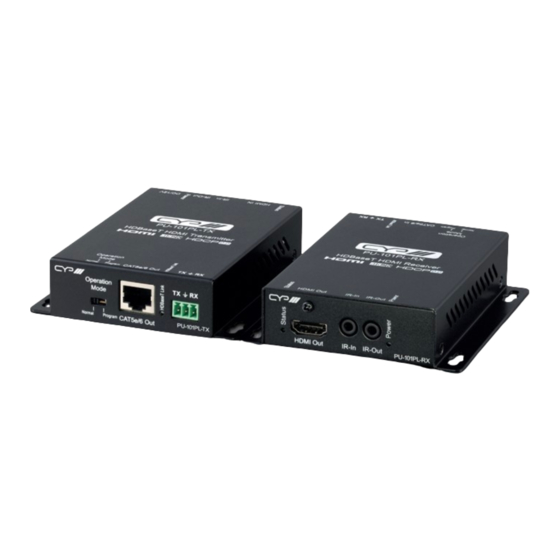

CYP PU-101PL-KIT Operation Manual

Hdbaset hdmi extender set

Advertisement

Quick Links

PU-101PL-KIT
HDBaseT HDMI Extender Set
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PU-101PL-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP PU-101PL-KIT

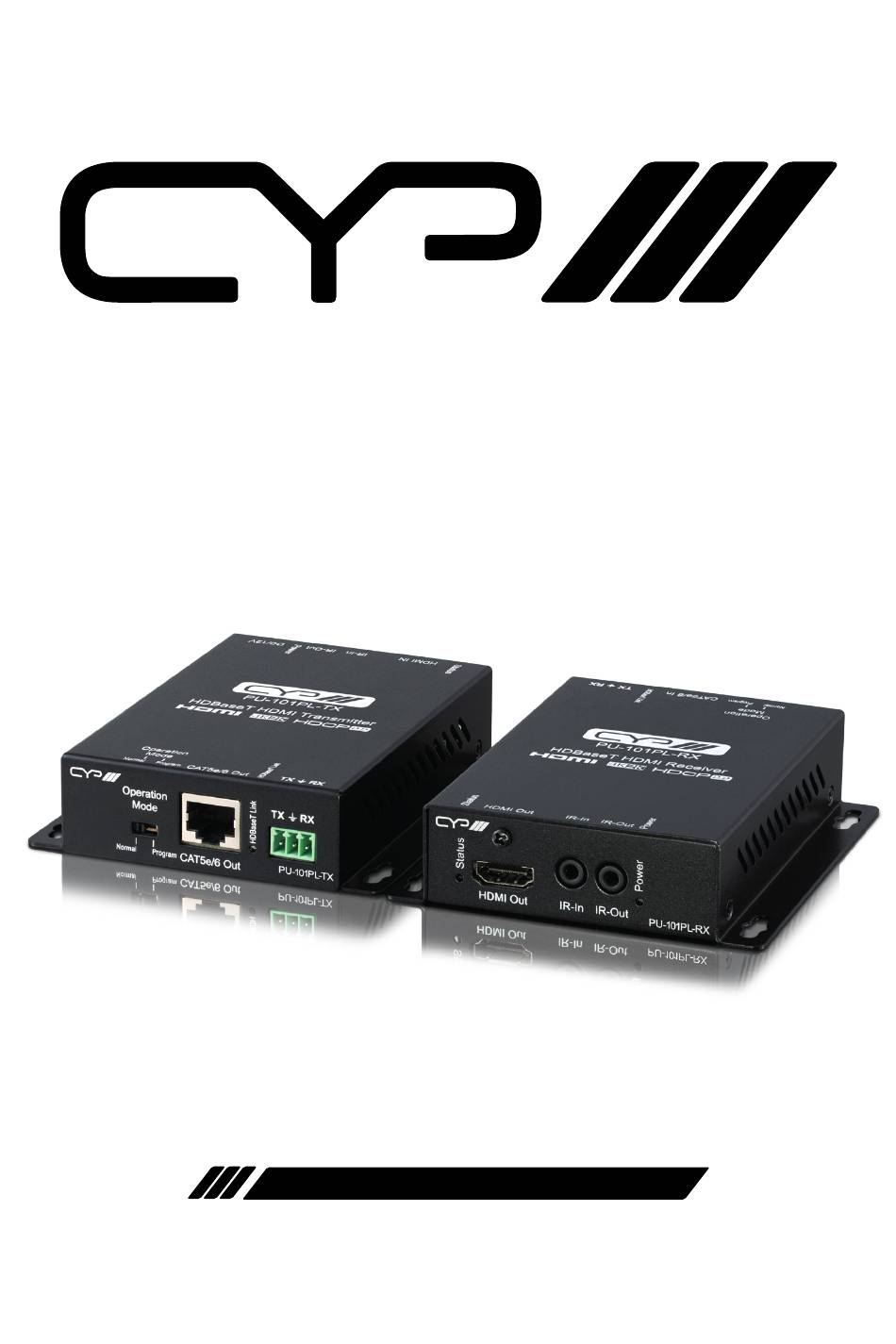

  • Page 1 PU-101PL-KIT HDBaseT HDMI Extender Set OPERATION MANUAL...
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 TX Front Panel ............3 6.2 TX Rear Panel ............4 6.3 RX Front Panel ............5 6.4 RX Rear Panel ............6 6.5 Setting Instructions ..........7 7.
  • Page 6: Introduction

    1. INTRODUCTION The HDBaseT HDMI over single CAT5e/6 with bi-directional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 metres at 1080p or 40 metres at 4K. with the PoC function and added benefit of controls through the built-in RS-232 and IR ports.
  • Page 7: Features

    5. FEATURES  HDMI 1.x and DVI 1.0 compliant  HDCP compliant  Supports HDCP repeater and CEC bypass  Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K60 4:2:0 through CAT5e/6 cable  HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz (YUV 4:4:4, 8-bit)  Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 TX Front Panel PU-101PL-TX Operation Mode: The switch is for bypassing RS232 signal or for firmware updating CAT5e/6 OUT: Connect to a compatible HDBaseT Receiver with a single Cat.5e/6 cable for transmission of all data signals. HDBaseT Link: HDBaseT Link indicator RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals.
  • Page 9: Tx Rear Panel

    6.2 TX Rear Panel Status: HDMI input indicator. HDMI In: Connect to the HDMI source equipment such as a DVD or Blu-ray player. IR-In: Connect an IR extender cable for IR signal reception. Ensure that remote control being used is within the direct line-of-sight of the IR extender.
  • Page 10: Rx Front Panel

    6.3 RX Front Panel PU-101PL-RX Status: HDMI input indicator. HDMI In: Connect to the HDMI source equipment such as a DVD or Blu-ray player. IR-In: Connect an IR extender cable for IR signal reception. Ensure that remote control being used is within the direct line-of-sight of the IR extender.
  • Page 11: Rx Rear Panel

    6.4 RX Rear Panel Operation Mode: The switch is for bypassing RS232 signal or for firmware updating CAT5e/6 In: Connect to a compatible HDBaseT Transmitter with a single Cat.5e/6 cable for transmission of all data signals. HDBaseT Link: HDBaseT Link indicator RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial controllable device for the extension of RS-232 signals.
  • Page 12: Setting Instructions

    6.5 Setting Instructions The switch is for bypassing RS232 signal or for firmware updating. According to the silk prints nearby ("Program" for firmware update, "Normal" for RS232 transmission), change the switcher positions to set RS232 port's function. The user should recieve a Firmware burn package, containing all software needed for burning and updating the firmware on the EEPROM.
  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM PC or RS-232 IR Remote Blu-Ray Player Control system HDMI Input IR Emitter IR Receiver RS-232 PU-101PL-TX CAT. 5e/6 IR Emitter Cable RS-232 IR Receiver PU-101PL-RX IR Emitter RS-232 Device to be controlled HDMI Output IR Remote...
  • Page 14: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Format Supported DTV/HDTV: 4K/1080p/1080i/720p/576p/ 480p/576i/480i Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Output Video HDMI 2.0, HDCP 1.4/2.2 Output Audio Supports DTS-HD, Dolby HD Maximum Transmission 70m (1080p), 40m (4K) Distance Input Ports (TX) 1x HDMI [1x HDMI Uncompressed AV...
  • Page 15 Dimensions (W×H×D) 71mm×105mm×25mm (each) Weight 70g (Pair) Chassis Material (Face) Metal (Steel) Chassis Colour Black Operating Temperature 5˚C – 35˚C/-41˚F – 95˚F Relative Humidity 5 – 90% RH (Non-condensing) 12V 2A Power from TX to RX over Cat5e/6 cable Power Consumption 25W (TX) 5W (RX)
  • Page 16: Video Specifications

    8.2 Video Specifications Supported Resolutions 480p 60Hz 4:4:4  720p 60Hz 4:4:4  1080i 60Hz 4:2:2  1080i 60Hz 4:4:4  1080i 60Hz  1080p 30Hz 4:2:2  1080p 30Hz 4:4:4  1080p 30Hz  1080p 60Hz 4:2:2  1080p 60Hz 4:4:4 ...
  • Page 17: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) HDMI High-Definition Multimedia Interface High Dynamic Range Kilohertz Light-Emitting Diode LPCM Linear Pulse-Code Modulation...
  • Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com V1.00...
