Summary of Contents for CYP CH-506TX

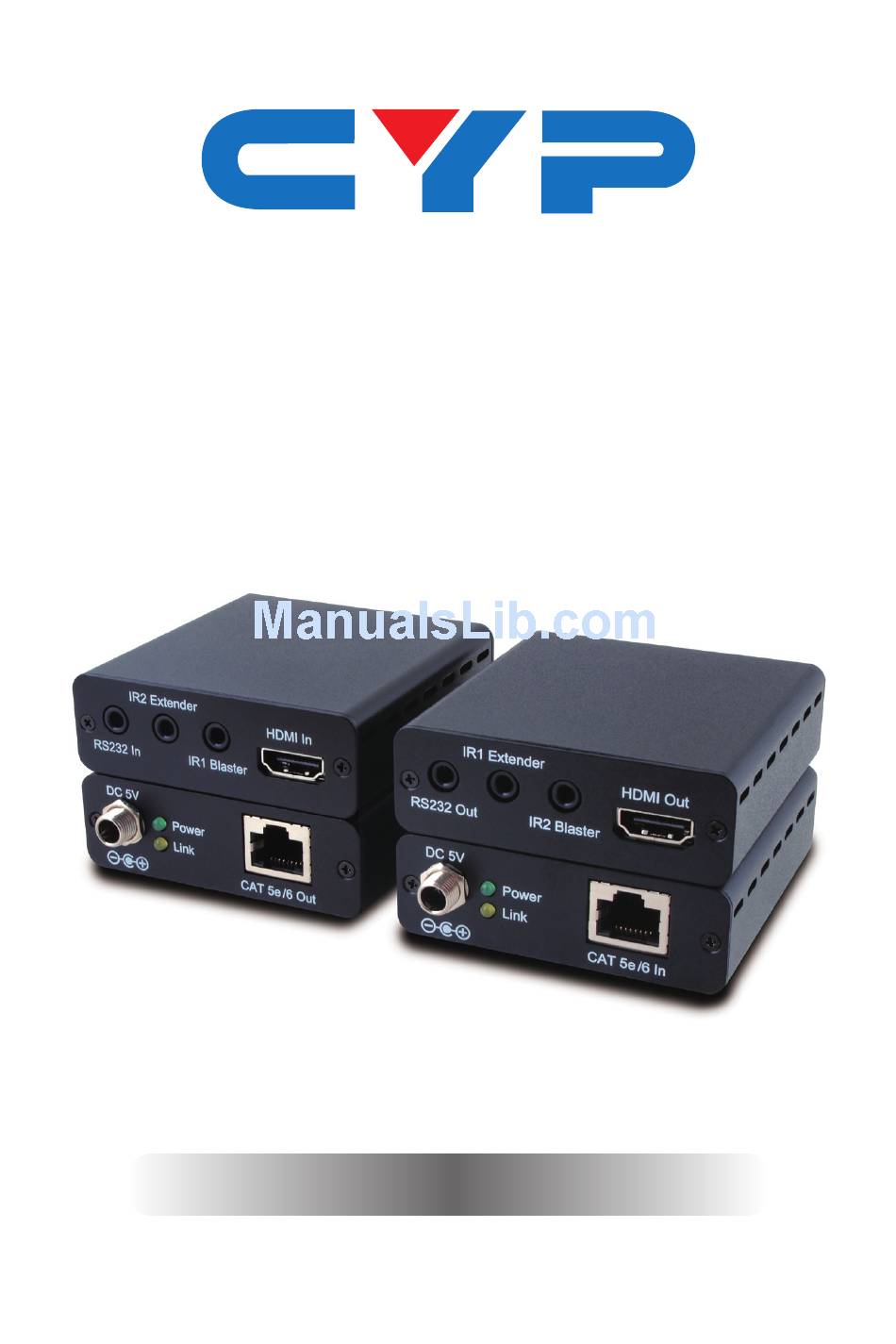

  • Page 1: Operation Manual

    CH-506TX & RX CH-506TXL & RXL HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 D-Sub 9-Pin Definitions .....5 6.4 IR Cable Pin Assignment....5 7.

  • Page 5: Introduction

    1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100 m* and has the added benefit of control through the built-in RS-232 and IR ports. *Light version can run up to 60m 2.

  • Page 6: Features

    5. FEATURES • HDMI including 3D, 4k×2k supports, HDCP and DVI compliant • Supports HDCP repeater and CEC function • Simultaneous transmission of uncompressed data over a single CAT6/CAT5e cable up to 100 m/328 ft* • Uncompressed video 1080p, 60 Hz, 36-bit •...

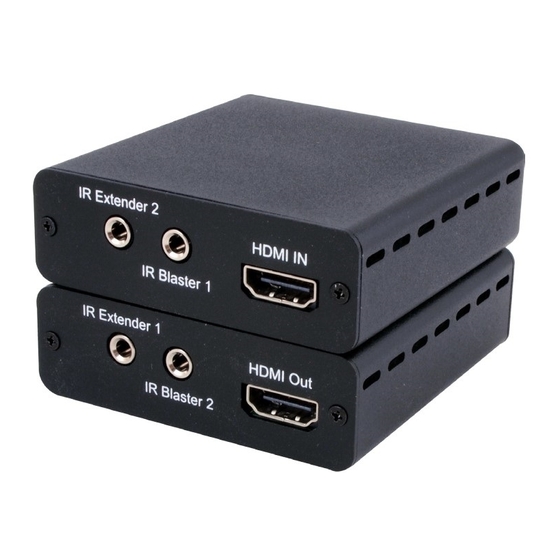

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 5V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster CAT 5e /6 Out RS-232 In: Connect to a PC/laptop or RS-232 enabled device(with supplied 3.5 mm phone jack to D-Sub 9 pin adaptor) for the transmission of RS-232 commands.

  • Page 8: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels Front Rear DC 5V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster CAT 5e /6 In RS-232 Out: Connect to the device that is to be controlled (with the supplied 3.5mm phone jack to D-Sub 9-pin adaptor) by RS-232 commands.

  • Page 9: D-Sub 9-Pin Definitions

    6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding...

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Single CAT5e/6 Power...

  • Page 11: Specifications

    8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Transmitter Input 1×HDMI, 1×IR Extender, 1×RS-232 Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1×IR Blaster HDMI I/O Cable Distance 10m/8bits 6m/12bits/input, 15m/12bits/output ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)w IR Frequency 30~50 kHz...

  • Page 12: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared...
  • Page 13 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...

This manual is also suitable for:

Ch-506rxlCh-506rxCh-506txl
