AU-11SA
HDMI Audio De-embedder (7.1) with built-in Repeater
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-11SA and is the answer not in the manual?

Questions and answers

Related Manuals for CYP AU-11SA

Summary of Contents for CYP AU-11SA

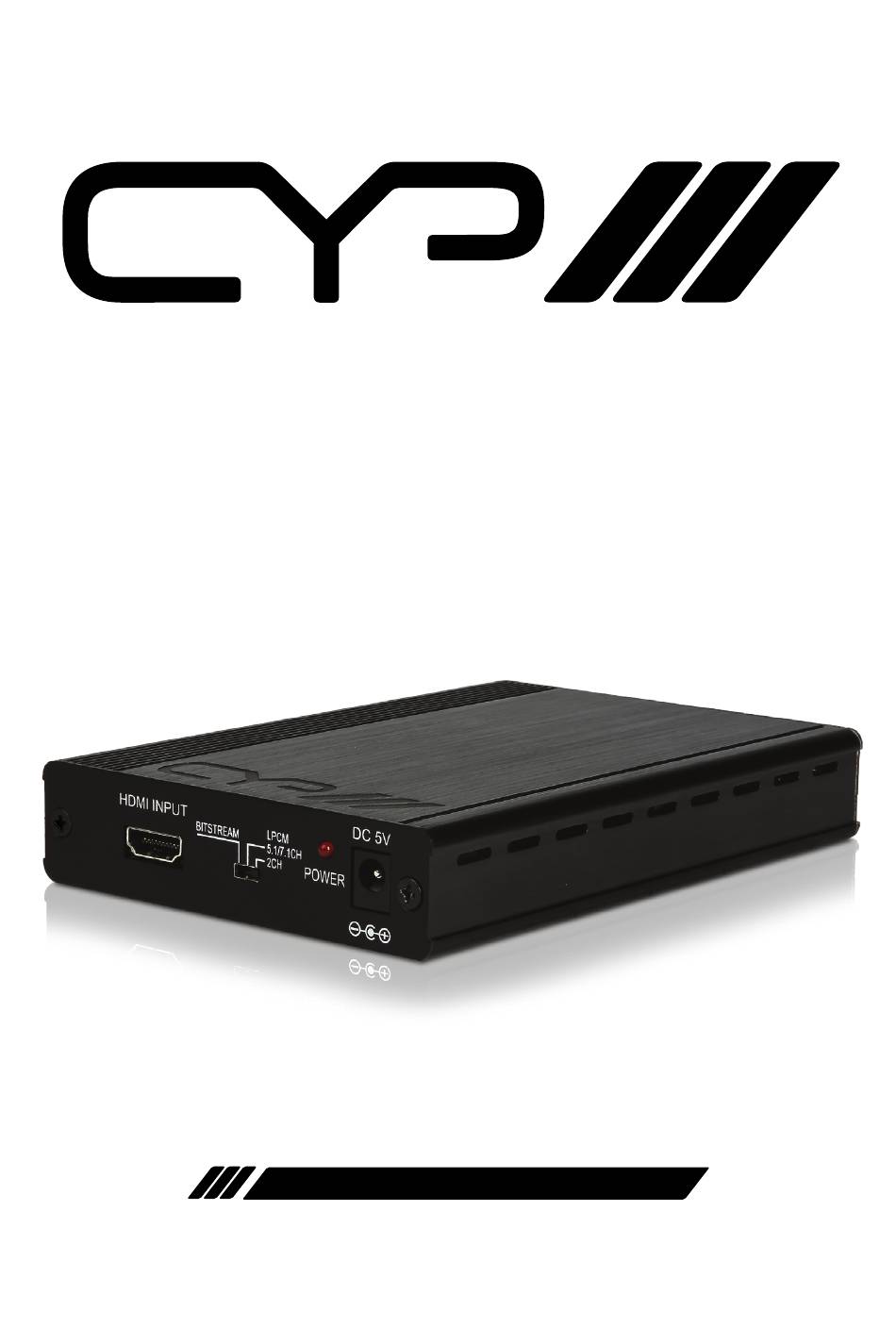

  • Page 1 AU-11SA HDMI Audio De-embedder (7.1) with built-in Repeater OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5 CONTENTS Contents...

  • Page 6: Package Contents

    1. INTRODUCTION This is the most advanced solution for HDMI to HDMI repeater with Audio decoder. This is compatible with HDMI specifications, a cutting edge technology which defines to transfer Deep Colour (12-bit/colour) video with a high bandwidth up to 225 MHz. The HDMI Distribution Amplifier also does signal amplification and equalization output that can connected with other HDMI to HDMI units for repeater function.
  • Page 7 5. FEATURES  HDMI, HDCP 1.1 and DVI 1.0 compliant  Supports digital video formats in Deep Colour Mode from 25 MHz to 225 MHz for 36-bit (12-bit/colour)  Supports high definition input up to 1080p@60 Hz/24-bit, output resolution follows input  Supports HDMI signal amplification and equalization output for repeater function  Supports uncompressed digital LPCM 2/5.1/7.1 channels and...

  • Page 8: Operation Controls And Functions

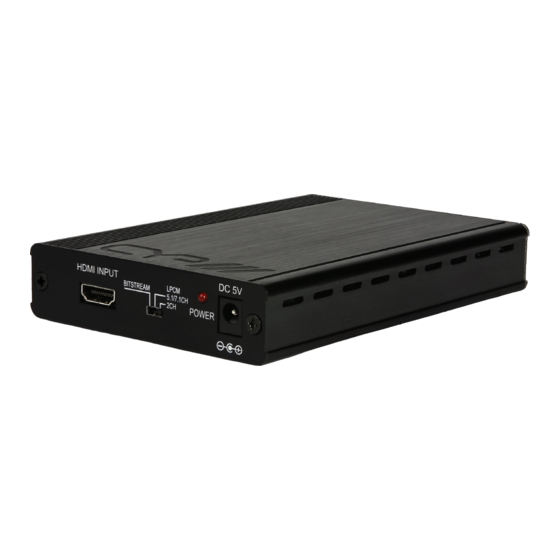

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V HDMI INPUT LPCM BITSTREAM 5.1/7.1CH POWER HDMI INPUT: Connect the HDMI input port to the HDMI output port of your source equipment such as a DVD player or Set-top Box. AUDIO Output Switch: Switch among Bitstream/LPCM 7.1/5.1 or LPCM 2 channels.
  • Page 9 6.2 Rear Panel FL/FR LFE/FC RL/RR RLC/RRC HDMI OUT MULTI CHANNEL OUT OPTICAL OUT HDMI OUT: Connect the HDMI output port to the HDMI input port of your display or AV receiver. MULTI CHANNEL OUT: Connect the audio channel output to the input of your amplifier equipment or surround sound speakers, following below channel configuration.

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Power Supply DC 5V FRONT HDMI INPUT LPCM BITSTREAM 5.1/7.1CH POWER CLUX-11SA HDMI LPCM 7.1 DECODER FL/FR LFE/FC RL/RR RLC/RRC REAR HDMI OUT MULTI CHANNEL OUT OPTICAL OUT HDMI Optical Digital Output Output Multi-channel Analogue Output TV/Monitor...

  • Page 11: Specifications

    8. SPECIFICATIONS Input Port 1×HDMI Output Ports 1×HDMI, 4×3.5 mm Mini-jack, 1×Optical HDMI Audio Format LPCM 2/5.1/7.1 CH & Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Multi-channel Audio Format Analogue audio of 2/5.1/7.1 channels Optical Audio Format Dolby 2/5.1 CH &...
  • Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
