- Page 1 AU-11CD v1.3 HDMI Audio De-Embedder (5.1) with built in repeater OPERATION MANUAL...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Top Panel ................. Right Panel .…………………………………..…..…...….… Left Panel .………………..…………………..…..…...….… Upper Panel .…………………..……………..…..…...….… Rear Panel .………………………….………..…..…...….… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction The HDMI™ Audio Extractor is a device that allows you to extract audio signals from your HDMI/DVI source. When connecting with a TV or display you don ’ t always get great audio, or in the case of a display, no audio at all, so with this Audio Extractor you can take your original HDMI audio signal and convert it to optical and L/R audio. -
Page 6: Features
5. Features Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0 Supports HDMI Sample Rates up to 192 kHz Supports Optical Sample Rate up to 48 kHz Supports TMDS clock frequency rate 225MHz Supports high-bit-rate (HBR) audio ... -
Page 7: Specifications
6. Specifications Input Port 1 x HDMI HDMI Sample Frequency Up to 192 kHz Optical Sample Frequency Up to 48 kHz Output Port 1 x HDMI, 1 x Optical, 1 x L/R HDMI Audio Format PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD Optical Audio Format PCM2, Dolby 5.1, DTS 5.1... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel ① Power ② Link HDMI Audio Extractor ① Power LED: The blue LED will illuminate when the power is connected with AC wall outlet, when the power button is pressed to set the device off the LED will turn off. -
Page 9: Left Panel
7.3 Left Panel DC 5V ① ① DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. 7.4 Upper Panel HDMI In ① ① HDMI In: This slot is to connect to source equipment such as DVD/Blue-Ray player with HDMI cable. -
Page 10: Rear Panel

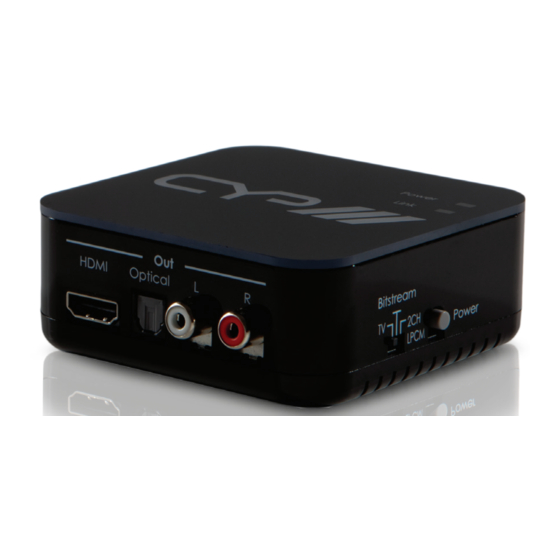

7.5 Rear Panel HDMI Optical ① ② ③ ③ ① HDMI Out: This slot is to connect with display TV/monitor and HDMI cable for video and audio signal output. ② Optical Output: This slot is to connect with audio equipment such as amplifier system or Hi-Fi speaker with optical cable for audio signal output. -
Page 11: Connection And Installation
8. Connection and Installation Speaker Amplifier HDMI Cable Stereo CLUX-11CD Blu-ray HDTV... -
Page 12: Acronyms
Acronyms Acronym Complete Term Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 13 www.cypeurope.com...
