Summary of Contents for CYP PU-506-KIT

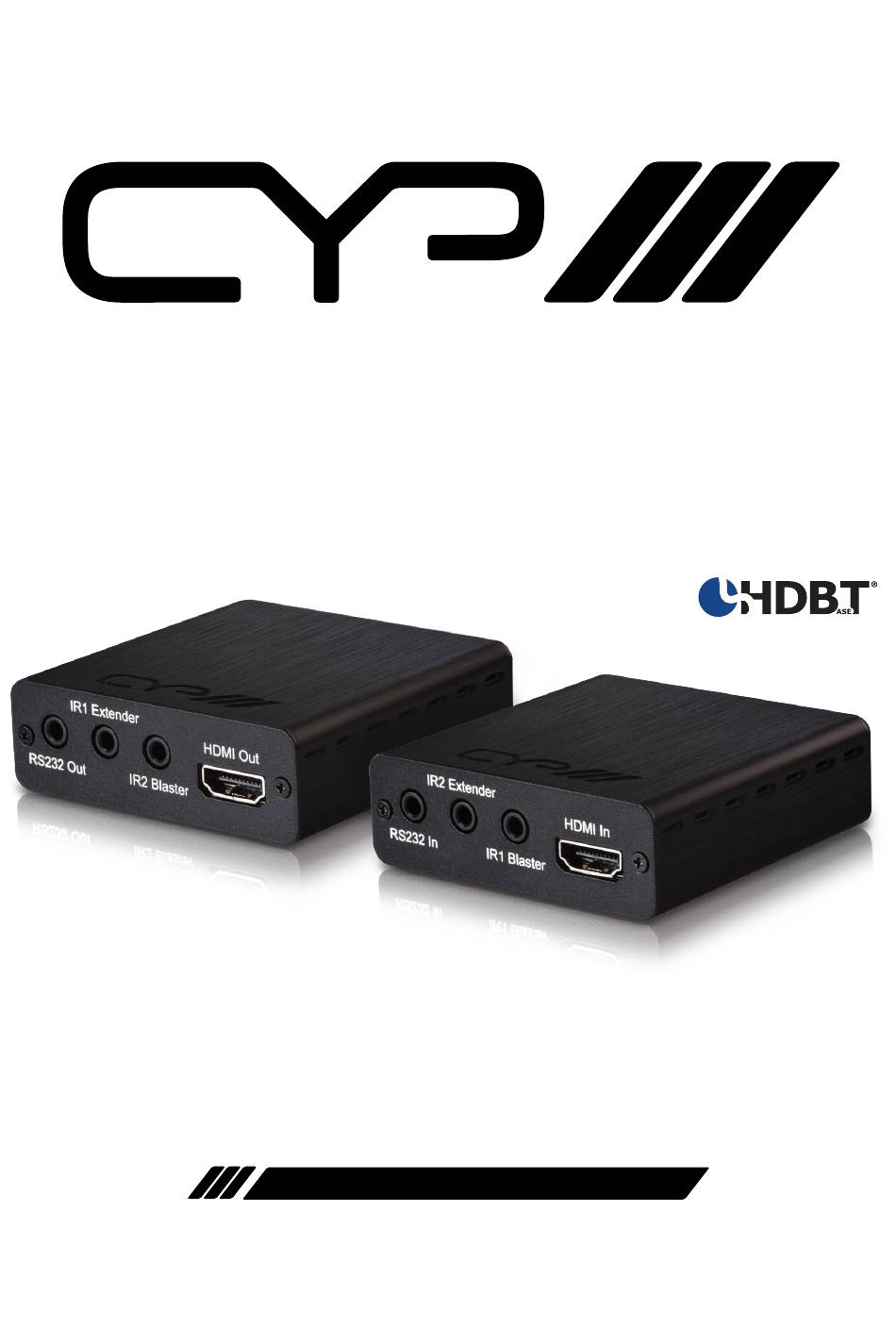

- Page 1 PU-506-KIT 3-Play HDBaseT™ Extender Kit (2-way IR, RS-232 & HDMI, up to 100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 D-Sub 9-Pin Definitions ......10 6.4 IR Cable Pin Assignment .......10 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/6/7 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m at 1080p and 70m at 4K and has the added benefit of control through the built-in RS-232 and IR ports. -
Page 7: System Requirements
- APC-USB) : * Please note the performance and consistency of USB power outputs from TVs can vary and cannot be guaranteed by CYP Note: This system was tested with CAT6/23AWG cable. Results may vary with cables of different specifications. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 5V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster CAT 5e /6 Out RS-232 In: Connect to a PC/laptop or RS-232 enabled device(with supplied 3.5 mm phone jack to D-Sub 9 pin adaptor) for the transmission of RS-232 commands. -
Page 9: Receiver Front And Rear Panels

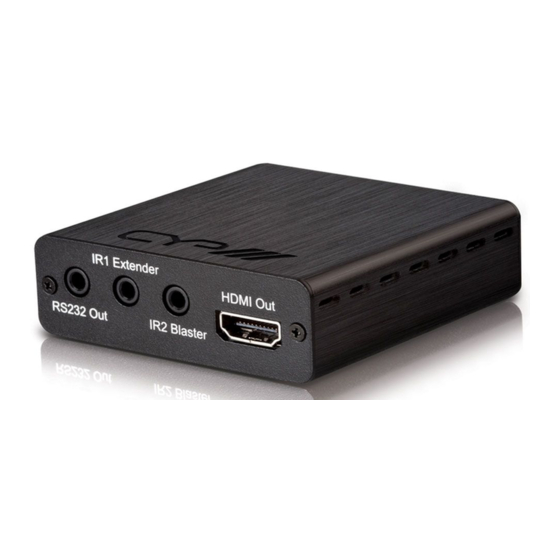

6.2 Receiver Front and Rear Panels Front Rear DC 5V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster CAT 5e /6 In DC 5V: Plug the 5 V DC power supply into the unit and connect the adaptor to an AC outlet. Link: The yellow LED will illuminate when both the input and output CAT5e/6/7 signals are connected. -
Page 10: D-Sub 9-Pin Definitions
6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power 5 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook DVD or Blu-ray Player HDMI RS-232 1.5m Input Adaptor 60° IR Blaster 60° Power Supply IR Extender IR2 Extender HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Single CAT5e/6/7 Cable Power... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 technical Specifications HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Transmitter Input 1×HDMI, 1×IR Extender, 1×RS-232 Output 1×CAT5e/6/7, 1×IR Blaster Receiver Input 1×CAT5e/6/7, 1×IR Extender Output 1×HDMI, 1×RS-232, 1×IR Blaster IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate up to 115200/sec... -
Page 13: Cable Specifications
8.2 Cable Specifications 1080p 4K30 4K60 8-bit 8-bit Cable Length 8-bit 12-bit (4:4:4) (4:2:0) High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.03...
