Summary of Contents for CYP PU-513L-KIT

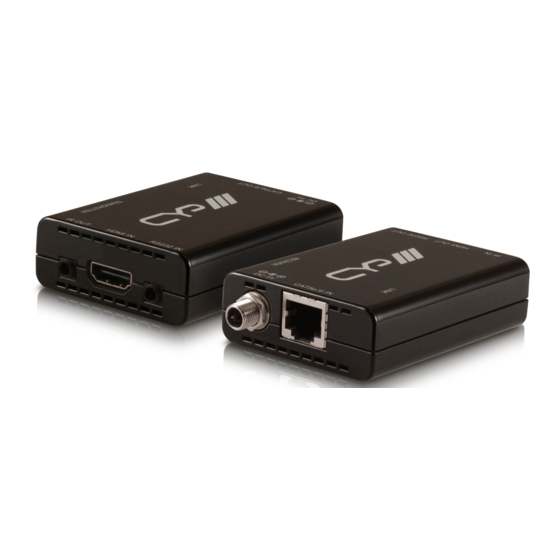

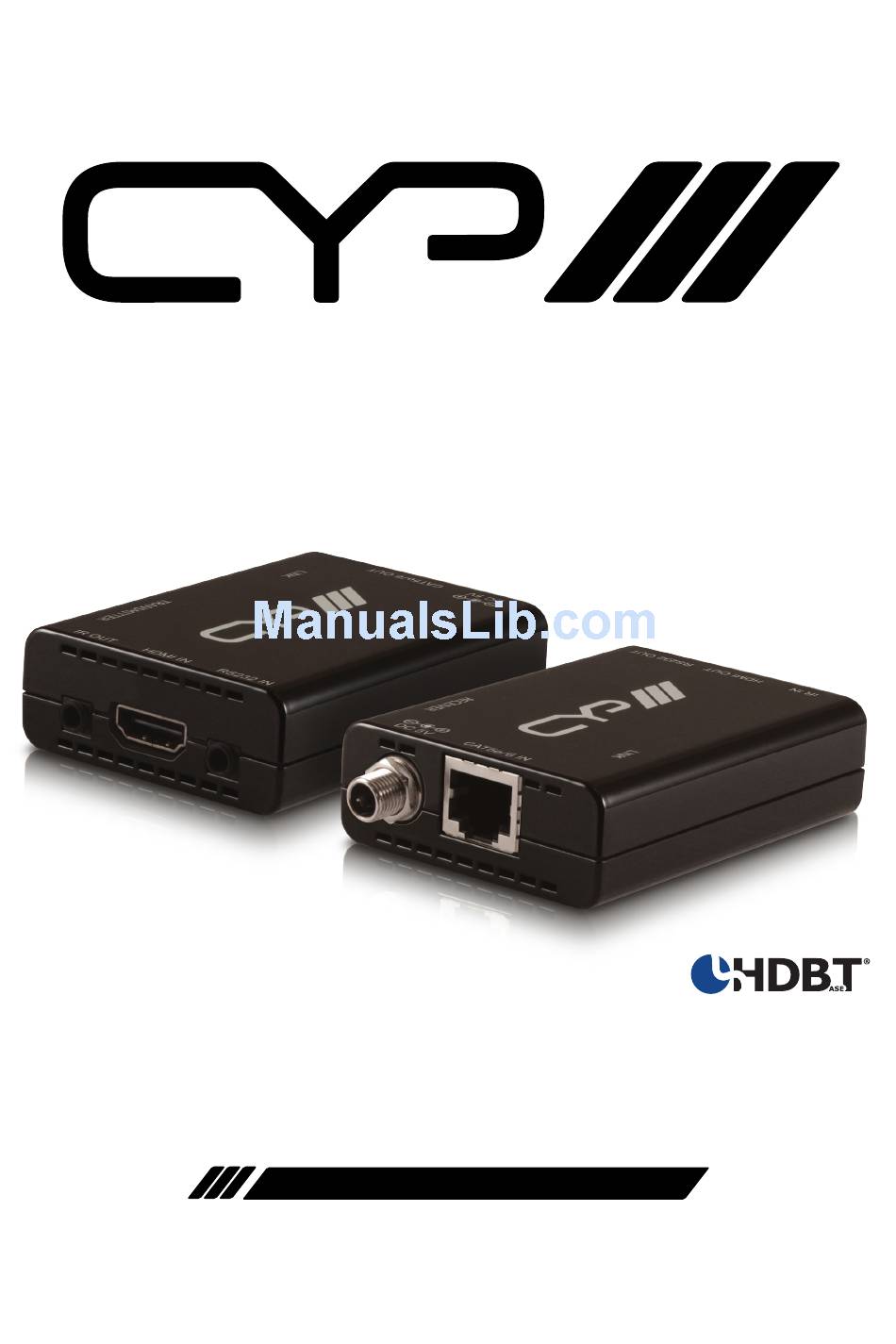

- Page 1 PU-513L-KIT HDBaseT™ LITE Extender Kit with 1-way IR & RS-232 (up to 60m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 Transmitter and Receiver Top Panels 10 6.4 IR Pin Assignment ........10 6.5 D-Sub 9 Pin Definitions ......11... -
Page 6: Introduction
1. INTRODUCTION The PU-513L-KIT allows uncompressed HDMI, one-way IR and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m. Utilise the USB power output from a TV as an optional way of powering the PU-513L-RX receiver unit alternative to a mains power supply. -
Page 7: Features
Plus and DTS-HD Master Audio transmission Choose to power the PU-513L-RX via the USB output from a TV (Cable available separately - APC-USB): Please note the performance and consistency of USB power outputs from TV's can vary and cannot be guaranteed by CYP. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels IR OUT HDMI IN RS232 IN DC 5V CAT5e/6 OUT IR OUT Connect to the supplied IR blaster for IR signal transmission to the source equipment. Place the IR blaster in direct line-of-sight of the equipment to be controlled. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels DC 5V CAT5e/6 IN IR IN HDMI OUT RS232 OUT DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. CAT5e/6/7 IN Connect to the transmitter unit with a single CAT5e/6/7 cable for HDMI Audio/Video and IR/RS-232 control signal transmission. -
Page 10: Ir Pin Assignment
6.3 IR Pin Assignment IR Emitter Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Ground... -
Page 11: D-Sub 9 Pin Definitions
6.4 D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD... -
Page 12: Specifications
7. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Transmitter Input 1× HDMI, 1× RS-232 Output 1× RJ45, 1× IR Emitter Receiver Input 1× RJ45, 1× IR Receiver Output 1× HDMI, 1× RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 2×... -
Page 13: Connection And Installation
8. CONNECTION AND INSTALLATION Blu-ray Player 1.5m IR Emitter 60° RS-232 Cable Power Supply CAT5e/6/7 Power (60m) Supply IR Receiver HDMI Cable RS-232 Cable 60° 3rd Party Equipment requiring RS-232 Control HD Monitor NOTE: The TX unit must have the Female D-sub connector fitted, and the RX the male D-sub connector. -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.03...
