PU-607BDWP-TX
HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoC
Wallplate Transmitter (Full 5Play™ & Single LAN up to 100m)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-607BDWP-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PU-607BDWP-TX

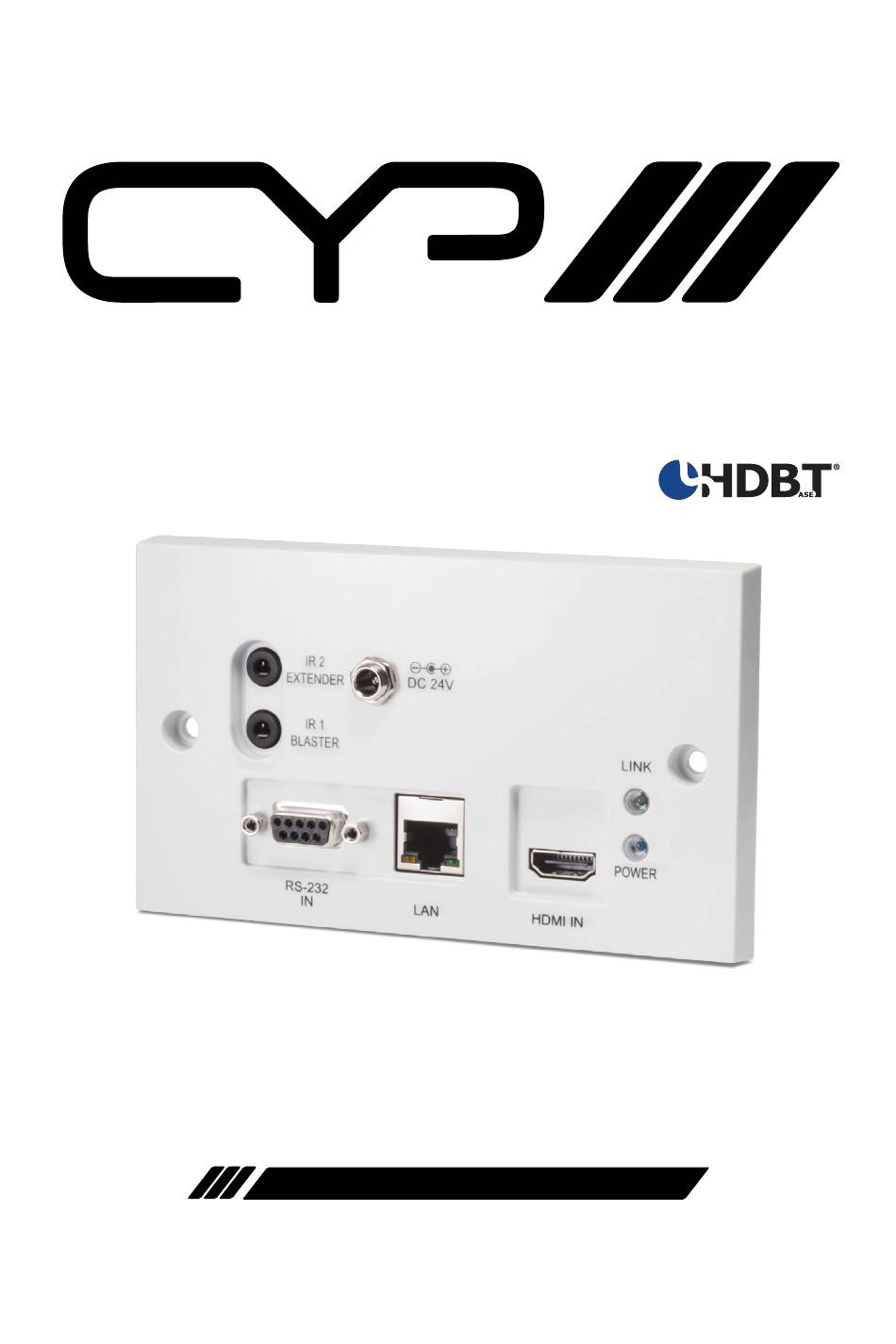

  • Page 1 PU-607BDWP-TX HDMI over Single CAT5e/6/7 HDBaseT™ - Bi-Directional PoC Wallplate Transmitter (Full 5Play™ & Single LAN up to 100m) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment ......10 6.4. D-Sub 9-Pin Definitions ......10 7.
  • Page 6: Introduction

    1. INTRODUCTION The PU-607BDWP-TX Wallplate Transmitter allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K.
  • Page 7: Features

    This system was tested with CAT6/23AWG and CAT5e/24AWG cable, so if using cables of another type, results may vary. For playback of 4K2K HDMI source signals, a 4K2K capable display and High Speed HDMI cables are required. Only compatible with PU-607BD-TX & PU-607BDWP-TX Receivers...
  • Page 8: Operation Controls And Functions

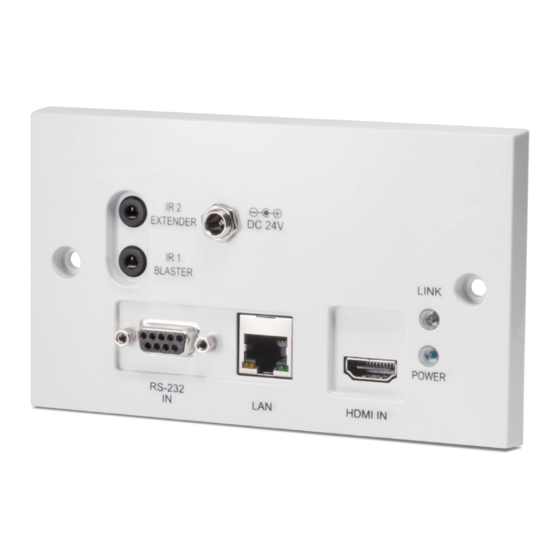

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter IR 2 DC 24V EXTENDER IR 1 BLASTER LINK POWER RS-232 HDMI IN IR 2 EXTENDER: Connect to the supplied IR Extender cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.
  • Page 9: Rear Panel

    HDMI IN: This slot is to connect with HDMI source equipment such as DVD/Blu-ray player with HDMI source signal. Power LED: This LED will illuminate when the device is connected to a power supply. LINK LED: This LED will illuminate when both the input source and output display signals are connected through the CAT cable.
  • Page 10: Ir Cable Pin Assignment

    6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground 6.4. D-Sub 9-Pin Definitions Define TX/RX TxD/RxD RxD/TxD...
  • Page 11: Connection Diagrams

    7. CONNECTION DIAGRAMS RS-232 Equipped PC or Internet Modem or Notebook Router 1.5m CAT5e/6/7 60° Power RS-232 Supply IR Blaster DVD or Blu-ray Player IR 2 EXTENDER DC 24V IR 1 BLASTER LINK 60° POWER RS-232 HDMI IN IR Extender IR Extender Power Supply...
  • Page 12: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI, 1×IR Extender, 1xLAN, 1×RS-232 Output Ports 1×CAT5e/6, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec Power Supply 24V DC / 1.25A (US/EU standards, CE/FCC/ UL certified) ESD Protection Human-body Model:...
  • Page 13: Cable Specifications

    8.1 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &...
  • Page 14: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
