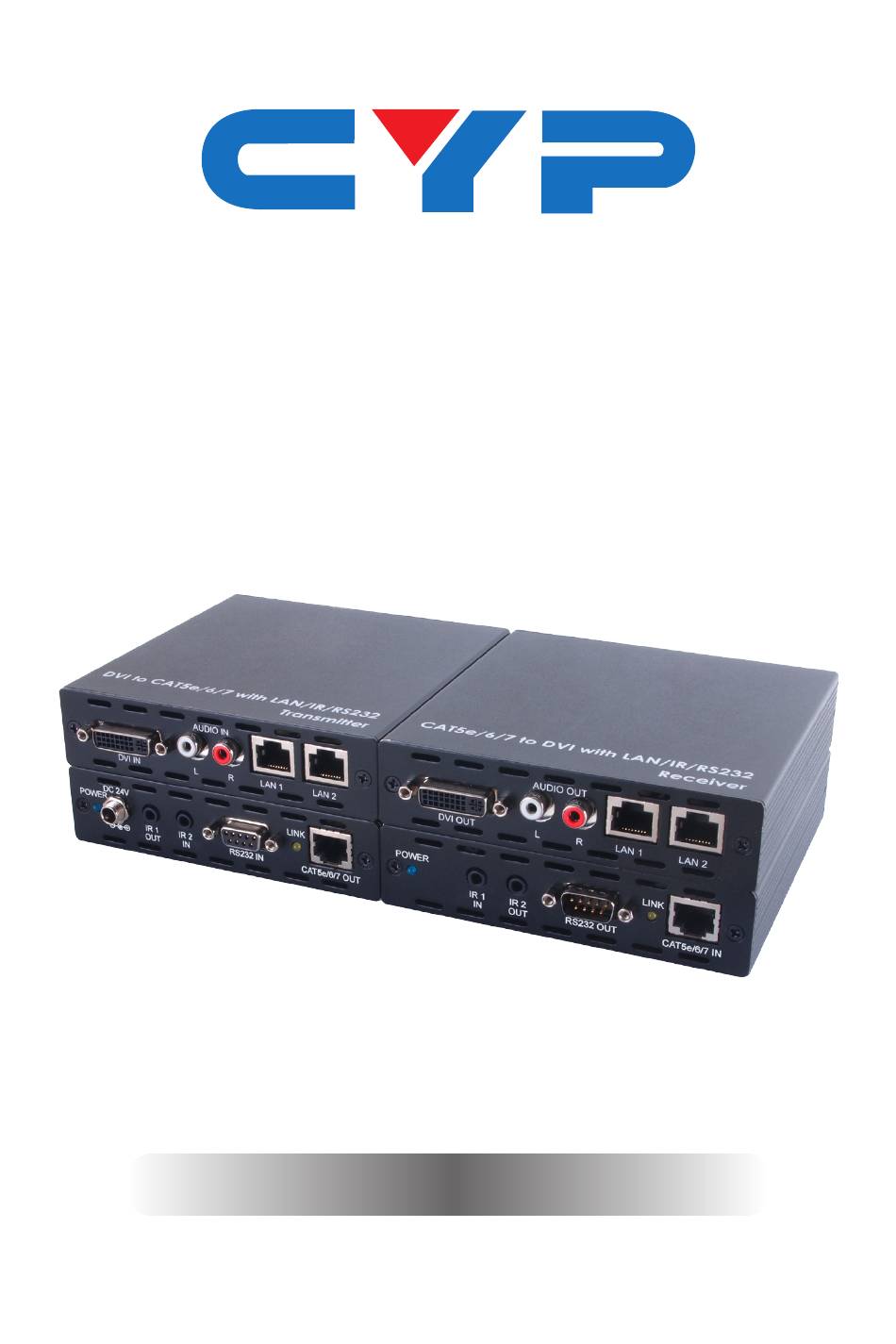

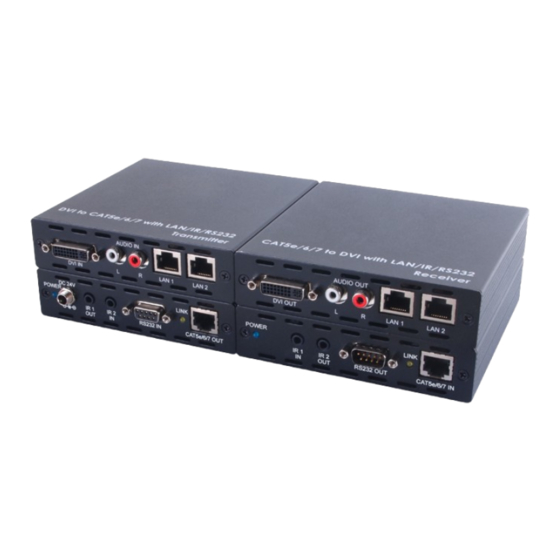

- Page 1 CDVI-1109TXC & RXC DVI over CAT5e/6/7 with LAN/PoC/IR Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Cable Pin Assignment....5 6.4 D-Sub 9-Pin Definitions .......5 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT DVI over CAT5e/6/7 Transmitter and Receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The Transmitter can power the Receiver, via the PoC function, eliminating the need for a separate power supply providing greater flexibility in installations. -
Page 7: Features
5. FEATURES • Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6/7 cable for up to 100 m (300 ft.). • Supports High-definition Audio up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio with HDMI to DVI adaptor •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Rear Front DC 24V AUDIO IN POWER LINK IR 1 IR 2 RS232 IN CAT5e/6/7 OUT DVI IN LAN 1 LAN 2 Power LED: This LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Rear Front AUDIO OUT POWER LINK IR 1 IR 2 RS232 CAT5e/6/7 DVI OUT LAN 1 LAN 2 Power LED: The LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. IR 1 IN: Connect to supplied the IR Receiver cables for IR signal reception. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding 6.4 D-Sub 9-Pin Definitions Define TX/RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Notebook PC with RS232 Control IR Extender IR Blaster Modem/Router 60° Media Server AUDIO IN DVI IN LAN 1 LAN 2 Power Supply DC 24V POWER LINK IR 1 IR 2 RS232 IN CAT5e/6/7 OUT Single CAT5e/6/7 RS232 Controlled Device POWER... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Ethernet Speed 100 Mbps Transmitter Inputs 1×DVI , 2×Ethernet, 1 x L/R 1×RS-232, 1×IR Extender Outputs 1×CAT5e/6/7, 1×IR Blaster Receiver Inputs 1×CAT5e/6/7, 1×IR Extender Outputs 1×DVI, 1×RS-232, 1 x L/R 2 ×Ethernet, 1×IR Blaster DVI In/Out Cable Up to 6 Meters Distance... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable HDMI High Definition Multimedia Interface Power over Cable... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDVI1109TXCRXC...
